General Introduction

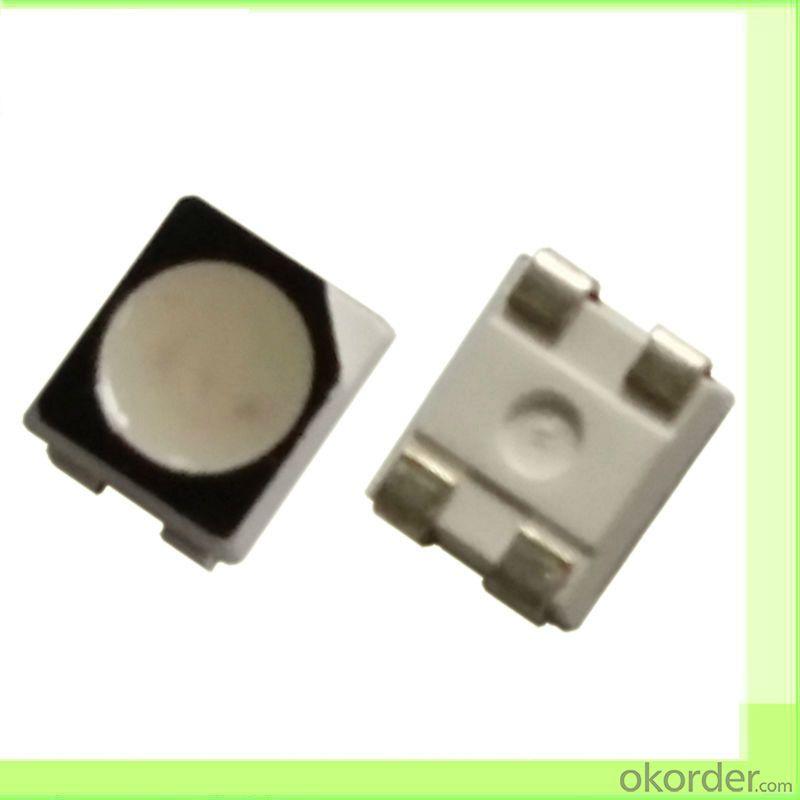

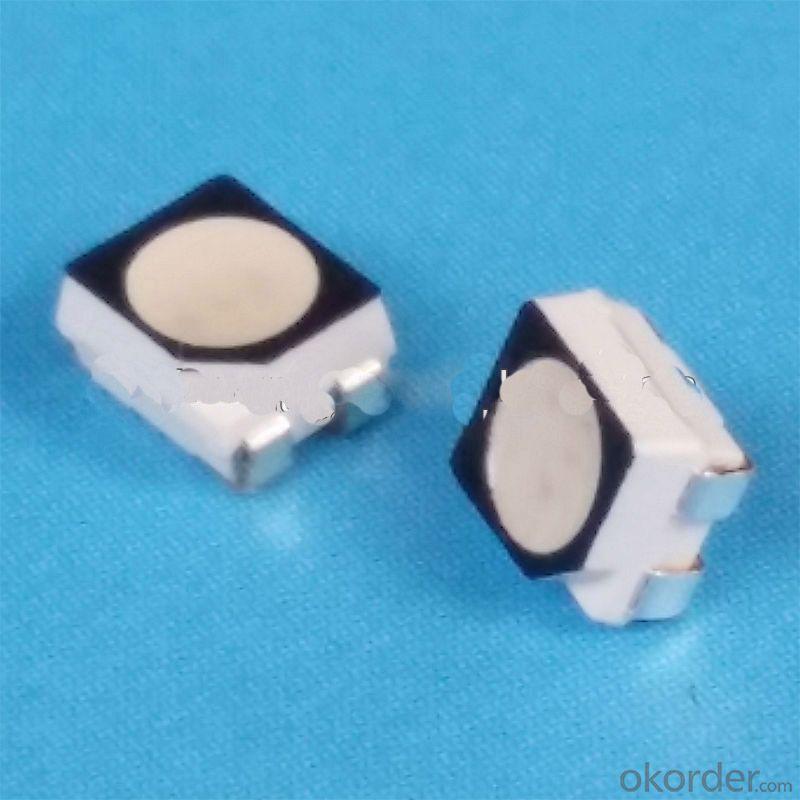

Hot sales 3528 rgb smd led
Specification
| Emitting Color | RGB(Red Green Blue) |
| Wavelength | B:465-475nm, G:520-530nm, R:620-625nm |
| Luminous flux | B:180-220MCD, G:950-1200MCD, R:190-230MCD |
| Viewing angle | 120 degree |
| Color rendering index | 75Ra |
| Forward Current | 20mA |
| Peak Forward Current | 100mA |
| Reverse Current | 1uA |
| Forward Voltage | B:3.1-3.3V, G:3.1-3.3V, R:1.9-2.1V |
| Reverse Voltage | 5V |
| Frequency | 50/60Hz |
| Material | AlGalnP/InGaN |
| Operating temperature | -25~+80°C |
| Store temperature | -40~+80°C |
| Operating Humidity | 10%-60%RH |
| Store Humidity | 40%-60%RH |
Feature
3.5*2.8mm Surface Mount LEDs
Used best raw material
Color :full color
High quality,low-attenuation.
High brightness,long life.
Energy-saving and environmental protection.
Application
LED display
Indicator light
LED indoor lighting
LCD backlight
Decorative lighting
Auto meter LED decorativelighting
Customized options
Customized label/ Logo can be made onto packing box.
Packaging & Delivery

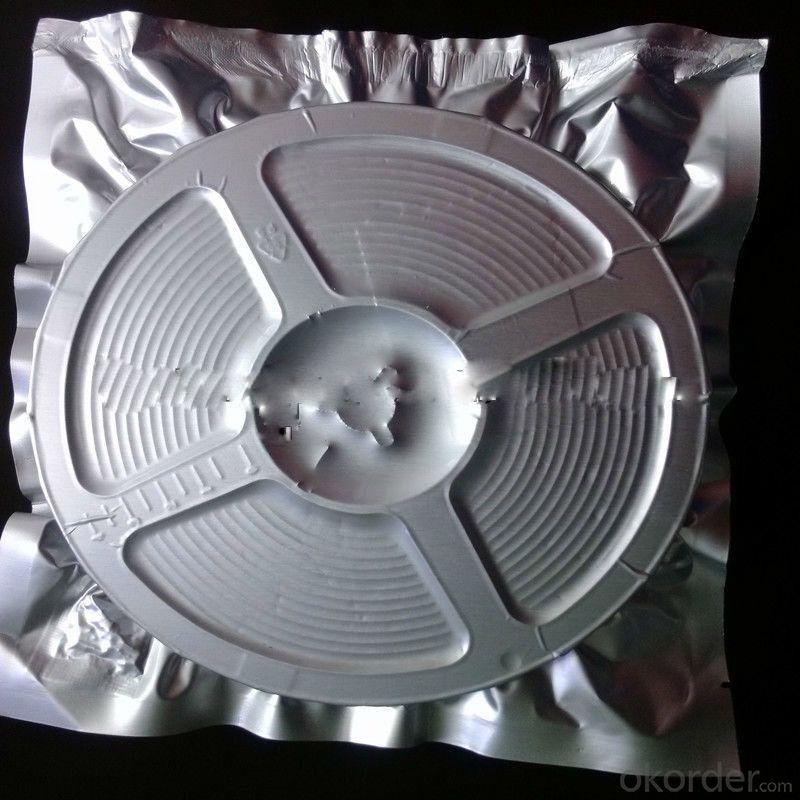

Package:
