Loading Port:Ningbo
Payment Terms:TT or LC
Min Order Qty:100 watt
Supply Capability:200000 watt/month
Product Description

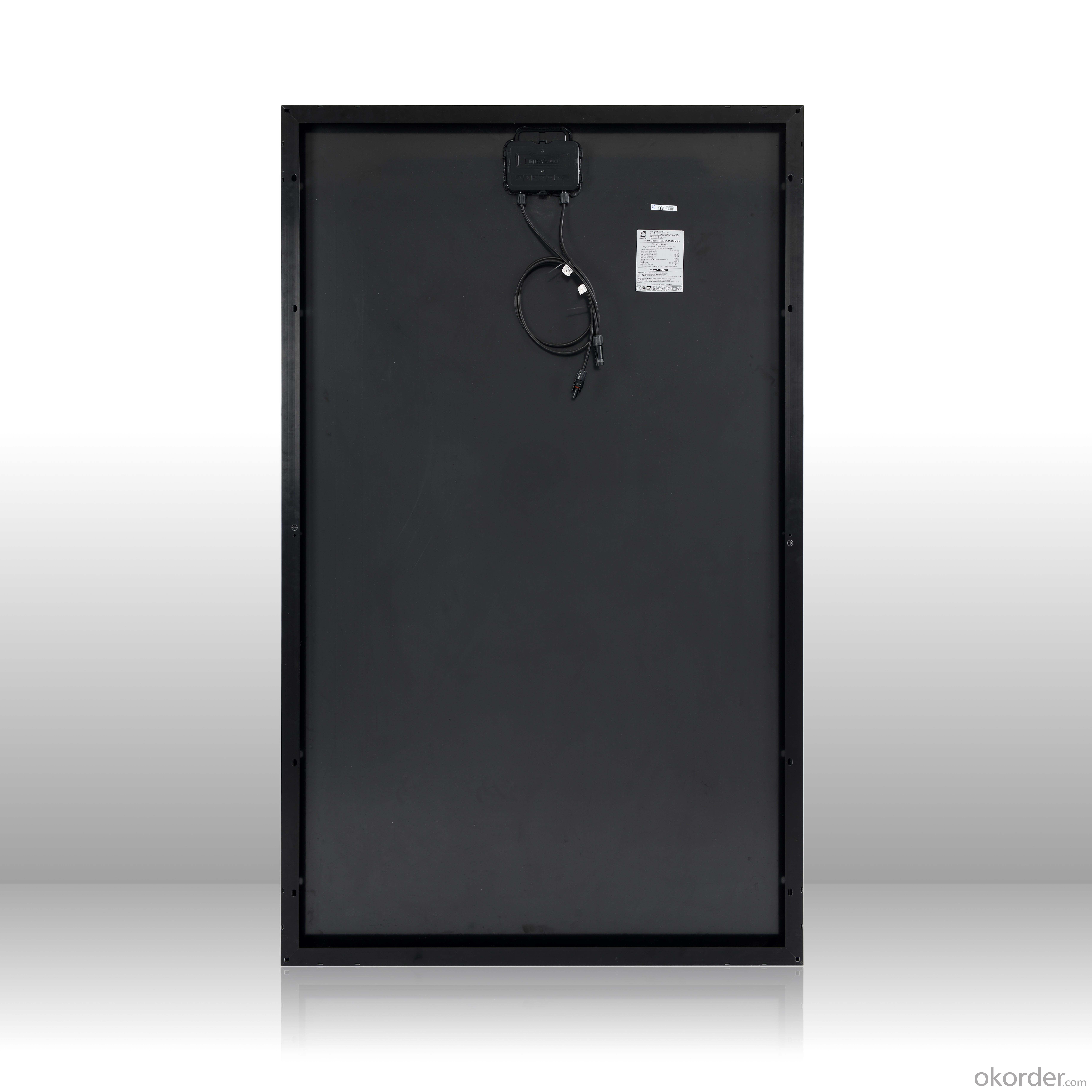

High efficiency Polycrystalline solar panel PLM-250M-60 series
Anti-reflective coating: AR used reduce the reflectivity enhance transmittance.
Tempered Glass: Low Iron and AR coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
EVA: Transmittance ≥91% , Adhesive Capacity >85%
Cell: 18.5% of high efficiency solar cells to sure 18% module efficiency
Back sheet: Using higher quality back sheet to prevent destroying and water , it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
Certification:
STC:Irradiance 1000W/m², Temperature 25°c,AM=1.5Maxium system voltage 1000VDC
Mechanical Characteristics
| Cells size(mm) | 156X156 |
| Modules size(mm) | 1650X992X46 |
| No. of cells | 60(6X10) |
| Weight(KG) | 19.6 |
| No.of mounting holes | 8 |
| No.of waterspout | 16 |
Temperature Coefficient:
| NOCT | 45°C±2°C |
| Temperature coefficient of Isc | 0.05%/°C |
| Temperature coefficient of Voc | -0.33%/°C |
| Temperature coefficient of Pmax | -0.44%/°C |
| Power Tolerance | 0/+3% |
| Working temperature | -40°C to 85°C |
Module Diagram
Electrial Curves
Packaging & Shipping
Package Information:
| Type | Frame | PCS/Pallet | Pallets/Container | PCS/Container |
| 40HQ 1650X992 156P 60cells | 40 | 23 | 28 | 784 |
Worhshop Photos:
