Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:100000 watt/month
Structure
Solar Module is the core part of solar PV power systems, also is the highest value part of it. The function of Solar Module is to convert the sun's radiation to electrical energy, or transfer it to battery and store in it, or to drive the load running.
Features
The Product has been widely used in space and ground, it mainly used for power generation systems, charging systems, road lighting and traffic signs areas. It could offer a wide range of power and voltage, and with high conversion efficiency, and long service life.
1. 10 years limited product warranty
2. 15 years at 90% of the minimal rated power output
3. 25 years at 80% of the minimal rated power output

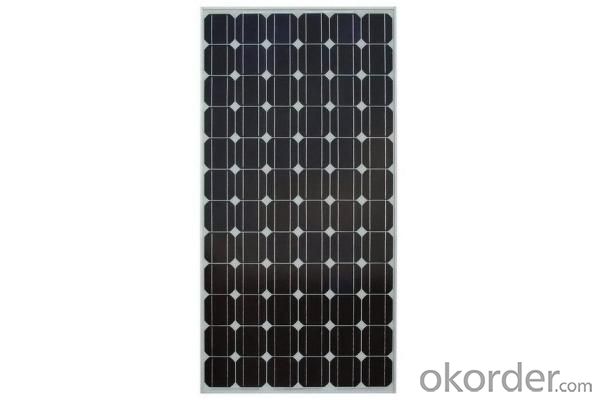

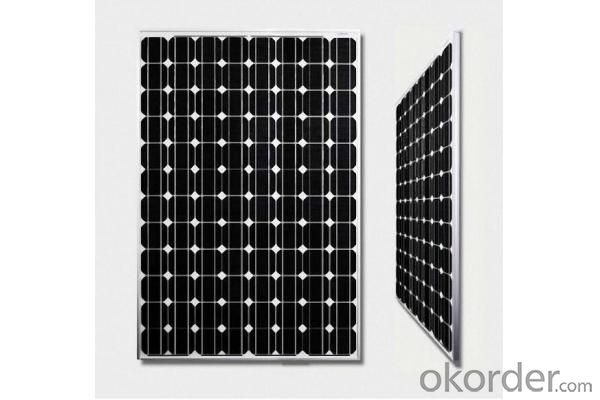

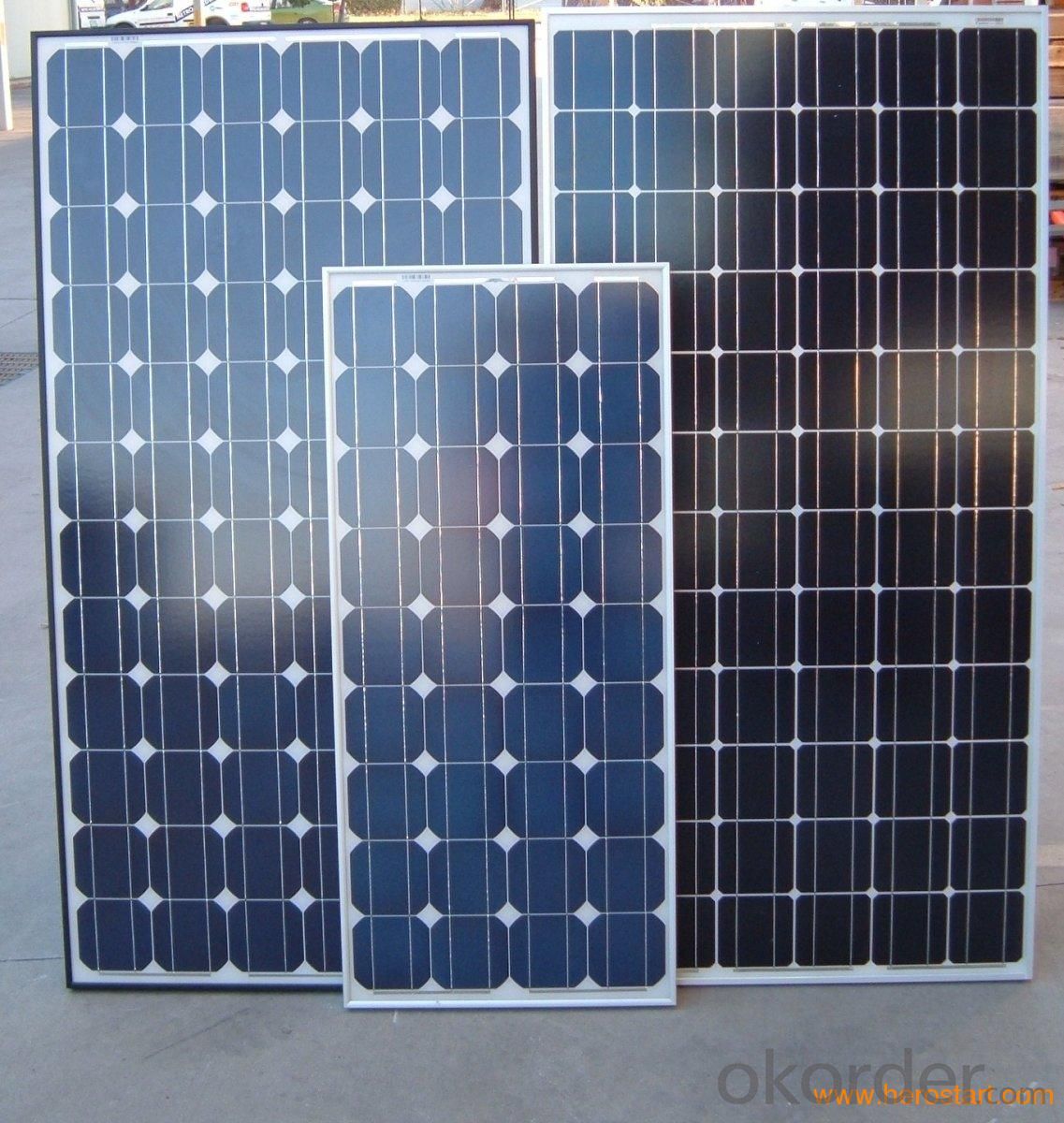

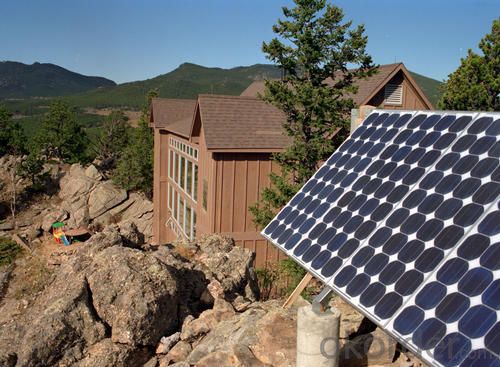

Images
Specification
Module Type | 100W 150W 200W 210W 220W 230W 240W 245W 250W 255W 260W 265W 270W |
Cell Type | 125mm*125mm |
Dimensions | 1195*540*35mm |
Peak Power (Pmax) | 100w±3% |
Module Efficiency | 17.2% |
Cell Efficiency | 17.6% |
Power Tolerance | ±3% |
Open Circuit Voltage(Voc) | 21.06V |
Short Circuit Current(Isc) | 6.05A |
Max Power Voltage(Vmp) | 18V |
Max Power Current(Imp) | 5.56A |
Max System Voltage | DC 1000V |
Operating Temperature | -40°C~85 °C |
Nominal Operating Cell Temp. | 47±2 °C |
Temp. coefficient Isc(TK Isc) | 0.06%/ °C |
Temp. coefficient Voc(TK Voc) | -0.34%/ °C |
Temp. coefficient Power(TK Pmax) | -0.42%/ °C |
Series Fuse Rating | 10A |
FAQ
Are you a trading company or manufacturer? | Manufacturer with factory |
What kinds of filter do you produce? | It covers for air filter,oil filter,fuel filter for car and truck |
Is Customized filter available? | Yes,please offer your required specifications and drawing |
Do you Accept OEM service? | YES! |
what’s your delivery terms? | FOB (2)CFR (3)CIF |
What's your Delivery Time? | 1)generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock |
2)Normally within 30 days,please confirm with us before order! | |
What's the Payment Terms? | Usually,30% as deposit,70% before shipment by T/T |
Western Union acceptable for small amount. | |
L/C acceptable for large amount. | |
Scrow ,Paybal,Alipay are also ok | |
How you pack products? | Normally,plastic bag inside and carton outside .We'll do according to customers' requirement |
What's your available port of Shipment? | Normally, Tianjin Other ports available but you should afford extra charges. |
