Fused Cast Brick with High Alumina Refractory Clay - Good Thermal Shock Resistance

Loading Port:Qingdao

Payment Terms:TT OR LC

Min Order Qty:10 m.t.

Supply Capability:100000 m.t./month

Product Description:

Ball mill lining brick, featured by high hardness, high density, low wear loss, good normalization, good corrosion-resistance etc. are the most ideal grinding media for glaze material, body material and various powered ores.

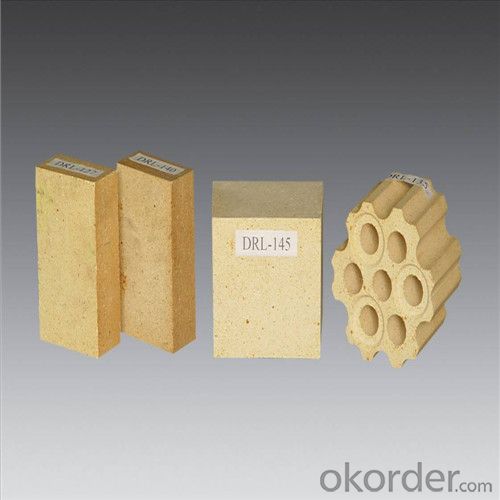

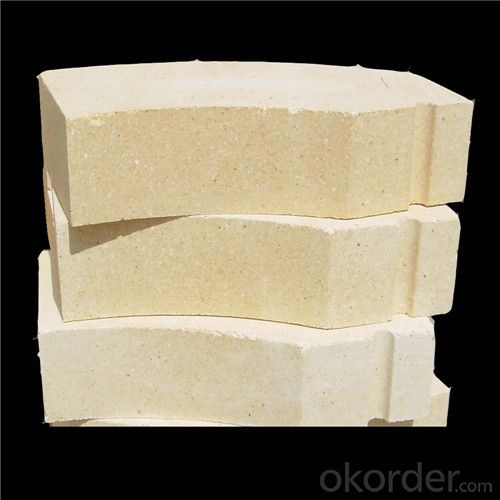

The high alumina lining brick can be divided into rectangular brick, trapezoidal brick and irregular brick as shape. The products has the high hardness, density, wear losses is very low, the heat degree very good, anti-corrosion, used for ball mill wear-resisting lining, widely used in ceramic, cement, paint, chemical, pharmaceutical, coating etc. and can effectively improve the grinding efficiency, reduce the grinding cost, reduce production pollution.




Application: the products are widely used as lining and grinding media of ball mill on ceremics, cements, paints, refractories, inorganic mineral powders industries, etc.


Performance index



Category

Name

92 Series

95 series

Physical

Property

Density

3.60g/cm³

3.70g/cm³


Moh’s Hardness

≥9

≥9


water absorption

≤0.01%

≤0.01%


Appearance

Smooth, White

Smooth, milk white

Chemical Property

Al2O3

≥92%

≥95%


Fe2O3

≤0.25%

≤0.10





Name

Length

(mm)

Width

(mm)W1

Width

 (mm) W2

Height (mm)

Regular size (40-90mm)

Rectangle brick

150

50

50

40/50/60/70//77/90

Trapezoid Brick

150

50

45

40/50/60/70//77/90

Half-Rectangle Brick

75

50

50

40/50/60/70//77/90

Half-Trapezoid Brick

75

50

45

40/50/60/70//77/90

Flake Brick

150

25

22.5

40/50/60/70//77/90

Special Size Lining Brick

80x50x55

55

50

50

80

110mm Lining Brick

75

45

41

110

110mm Lining Brick

37.5

45

41

110

Brick for Inlet &Outlet of ball mill

In accordance with customer’s requirements



High Alumina Refractory Clay Brick Good Thermal Shock Resistance;


FAQ

Q2: What`s the lead time for my order?

A2: It depends on customers’ requirements and our production schedule. And usually we need 30-60 days for refractory bricks, 10-25 days for unshaped refractory materials and 10-20 days for ceramic fiber blankets.



Q3: Can you offer Door-to-Door delivery?

A3: Yes, but only for some countries such as U.S., UAE, Saudi Arabia, Iran, and Russia, etc.



Q4: What is the minimum quantity?

A4: There is no minimum order quantity. Depending on the item and processing, there may be a minimum production required, however we can offer a quotation based only on the quantity you need.
