Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:25 m.t.
Supply Capability:2000 m.t./month
| Packaging Details: | High alumina fire brick light weight insulation refractory brick 1 Fumigated pallet 2 A stable stack of bricks 3 Lables on two opposite faces 4 Card edges 5 Steel or nylon bands 6 Plastic wrap 7 Overall dimension:1.0*1.0*1.0m (Routine) 8 Gross weight:0.6-1.0MT (Routine) |
| Delivery Detail: | 30 days after order |
High alumina insulating bricks are ideal products for application of service temp. below 1400deg.
Product Description

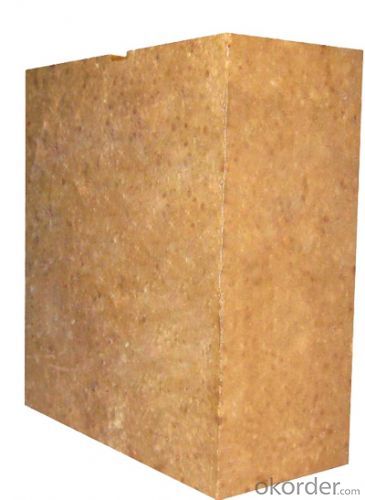

High alumina fire brick light weight insulation refractory brick
Featured with uniform structure, high crushing strength, low thermal conductivity, good high-temp. volume stability, high alumina insulating bricks are ideal products for application of service temp. below 1400°C, and widely used as inner lining or insulating layer in metallurgy, ceramic, petrochemical and machinery industries.
The following are technical specifications:
| Brand | PLG-1.3 | PLG-1.0 | PLG-0.9 | PLG-0.8 | PLG-0.7 | PLG-0.6 | PLG-0.5 |
| Bulk density, (g/cm3)≤ | 1.3 | 1.0 | 0.9 | 0.8 | 0.7 | 0.6 | 0.5 |
| Cold crushing strength, (MPa)≥ | 7.5 | 4.5 | 4.0 | 3.5 | 2.5 | 2.0 | 1.5 |
| Linear change on heating, ≤2% (°C×h) | 1400×12 | 1400×12 | 1400×12 | 1400×12 | 1350×12 | 1300×12 | 1250×12 |
| Thermal conductivity,(W/m.k) ≤ [350±25°C] | 0.38 | 0.35 | 0.32 | 0.28 | 0.25 | 0.22 | 0.19 |
| Al2O3(%)≥ | 48.0 | ||||||
| Fe 2O3(%)≤ | 1.5 | ||||||
Our Services
♥ Research of application basis, new technical process and new technology, development of new product, and technical consultation.
♥ Optimum solution and product supply of refractories for high temperature industries, such as iron&steel, non-ferrous, petrochemical and building materials.
♥ Engineering design, contract and consult for refractories, and civil architecture design.
♥ Research,development, manufacture and sale of superhard materials.
♥ R&D, manufacture and sale of special packing materials for export.
♥ Inspection,supervision and arbitration of refractories.
♥ Consultation and services in refractories information.
♥ Training and cultivation of high-level talents in refractories profession.
