Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 set
Supply Capability:20 set/month
Descriptions of our tower crane:

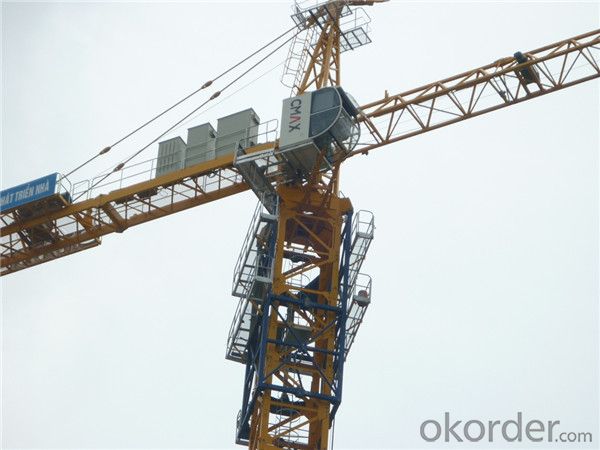

1, TC4808 have competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of work condition. With their working radius from 2.25 to 48m, TC4808 tower cranes are famous for their large operating ranges, varied working methods and wide uses.
2,This series of tower cranes has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.
3, It is original in design, reliable in operation and satisfactory in shape.
4,Equipped with all necessary safety devices, these cranes show a good speed-control capacity,, satisfactory operating stability and high work efficiency.
5,They are widely applied for the construction of high-rise hotels, resident buildings, high-rise industrial buildings, large-span factory buildings and tower like buildings like tall chimneys. Best after sales service will be offered which will get rid of all your worries in the purchase of our products
Features of 2015 hot sales tower crane tc4808
1. The tower crane comprises a number of mast sections that are highly interchangeable. The elaborate structure makes it easy for mounting and dismounting.
2. The main support of the mast section has both end faces processed by the jig boring machine to live up to the required flatness of both ends and verticality of the whole mast section, thereby improving the overall performance of the tower crane.
3. The metal parts are jointed by carbon dioxide gas shielded arc welding to achieve a tough and reliable structure.
4. Product quality is further guaranteed by the advanced inspection devices, such as the ultrasonic fault detector and sound level meter.
5. A complete set of safe and reliable hydraulic jacking device is adopted for self-elevating. The tower crane goes up and down steadily and the lifting height varies with the building height. These merits make the lifting equipment ideal for high-rise construction.
6. The cargo boom with triangular cross-section performs with double lifting points. It features excellent rigidity and convenient installation.
7. The hoisting mechanism provides slow dropping of large load in position as well as prompt lifting and dropping for small load. Thus the working efficiency is significantly improved. The lifting speed reducer is purchased from notable manufacturers to ensure that the tower crane works stably with low noise and high reliability.
8. Our self-erecting crane makes use of the single row four-point contact slewing bearing manufactured via advanced process by Hoesch Rothe Erde in Germany. This slewing bearing offers fine rigidity as well as excellent bearing ability of axial and radial tilting torque.
9. The slewing device comprises hydraulic coupling and planetary gear reducer, thus it enjoys high torsional capacity, high transmission ratio, compact structure, steady operation, and low failure rate.
10. The speed of the hoisting mechanism and the slewing device can be regulated by the winding wire motor and resistor to smooth the moving process and also prolong the serving time of the tower crane.
11. The components of electrical system are made by well-known enterprises in China and they are stable and reliable in performance.
Independent height (m) | 31.5 | ||||||
Max height with attachment (m) | 110 | ||||||
Working range can be adjusted(m) | 38/43/48 | ||||||
Min working range(m) | 2.25 | ||||||
Max lifting capacity(t) | 4 | ||||||
Tip load @ 48m(t) | 0.8 | ||||||
Hoist mechanism | Falls | 2 | 4 | ||||
Lifting capacity(t) | 1 | 2 | 2 | 2 | 4 | 4 | |
Speed(m/min) | 70 | 35 | 7 | 35 | 17.5 | 3.5 | |
Motor | YZTD225M2-4/8 /32 15/15/3.5KW | ||||||
Trolleying mechanism | Speed(m/min) | 20/40 | |||||
Motor | YDEJ100-4 /8 2.4/1.5KW | ||||||
Slewing mechanism | Speed(r/min) | 0-0.6 | |||||
Motor | YD132S-6/8 2.4/1.8KW | ||||||
Climbing speed(m/min) | 0.4 | ||||||
Counterweight(t) | 7.6 | ||||||
Mast section size(L×W×H)m | 1.4×1.4×2m | ||||||
Working temperature | -40-+60°C | ||||||
Total power (KW) | 23 | ||||||
Power supply requirement (KVA) | 115KVA for generator | ||||||
Cable type ( within 30 meters from site power source to lower electric box of tower crane ) | 25mm2(3+2, 5 cores) | ||||||
Startup voltage & current | 380V×95%=361V 180A | ||||||
Rated working voltage & current | 380V 65A
| ||||||
