H.F pipe line / Φ508 pipe mill roll forming machine

Product Description:

Structure of Φ508 pipe mill Description

Material to be processed:Carbon Steel, Cold Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon. Type of Production: * Round Tubes*Squar *Square and Rectangular Hollow Sections

Main Features of the Φ508 pipe mill Description

• Round Tube Outside Diameter: Min 219 Max 508mm

• Square Hollow Section: Min 170 x170  Max 330x330 mm

• Rectangular Hollow Section: Min 150x 200mm  Max300x 250 mm

• Tube Thickness: Min 3.0mm Max 18.0 mm (X70≤14mm)

• Forming Line Speed: Max 30m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)

• Tube Cut Length: Min 4 Max 15 meter

• Length Accuracy: ± 3mm

Φ508 pipe mill of Specification

• V-shape pre-discharging table ( V coil stand)

• Hydraulic charging wagon (coil car)

• Hydraulic discharging machine (uncoiler).

• Leveler & flattener

• Shear and TIG Welder

• Horizontal Strip Accumulator.

• Forming, Welding, Cooling and Sizing Section.

• Computer Flying Saw Cut-Off.

• Driven Roller Run Out Table, Inspection table & Collectors.

• Straightener

• End Milling and Chamfering Machine

• Baling Press

• Solid State H.F. Induction Welder: 800 kW, Solid State Type(Vaccum Tube Type)

• Rolls: Rolls are manufactured out of AISI D3  D2  E52100

• Hydraulic Units

• Electrical Panels

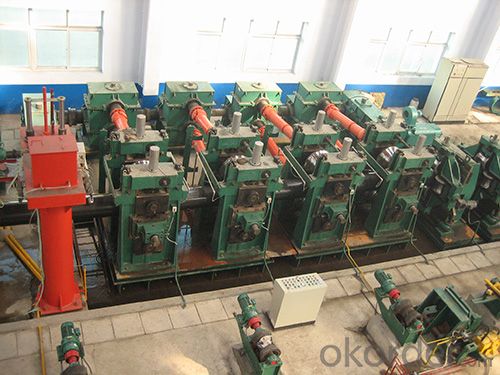

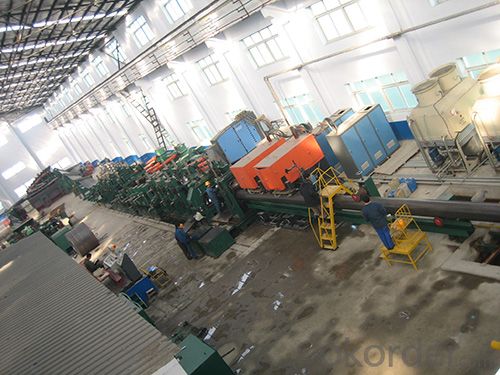

Φ508 pipe mill of Imange
