Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:10 unit/month
Product Description

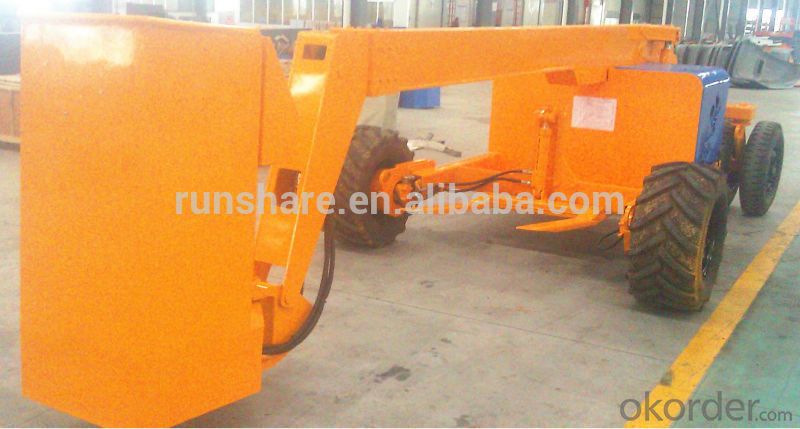

GTBZ08
work height--10300mm
Maximum platform height--8500mm
Maximum horizontal extension--6m
Maximum capacity--200kg
Length stowed--5814mm
Width stowed--2300mm
Height stowed--1900mm
Platform size(L*W*H)--410mm*510mm*1100mm
platform rotation--120°
Minimum ground clearance-center --270mm
Drive speed--1.5 km/h~4 km/h
Drive wheel--215 x 14
Engine--kubota
Weight--2300kg
Control voltage--12V
Configuration
Valve block--SANT originated Italy
Balance valve--SANT originated Italy
Controller--KAISANG originated China
Joystick--DANFOSS originated Demark
Engine---Kubota originated Japan
Hydraulic pump--Salami originated Italy
Motor--Danfoss originated Demark
