Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:1000 set
Supply Capability:5000 set/month
Product Applications:
The products are widely applied to green house, skylight, porch, door, sandwich panel,
ceiling, transportation body, concrete form and liner panels.
Product Advantages:
1.It adopts advanced mechanical structures & technilogy. It has achieved domestic advanced level with advanced technology and reasonable craft, high degree automation and high outputs.
2.It is PLC digital control,including resin feeding.It can achieve vacuum charging resin to doctor blade.Even mixture, easy cleaning and more automation.
3.Easy operation, low noise, obvious electricity conservation, small size, compact structure, low energy consumption, high durability, good looking, etc.
4.Combined with powder collector to absorb the harmful substances to keep the healthy of the worker and prolong the service life of the machine.
5.Increase the operation rate of the material and lower the cost
Main Product Features:
1. Easy operation based on PLC intellectual control system. Only short-term training
can make operators complete production independently.
2. Unique arithmetic on temperature control makes oven heating fast, temperature control
precise. Which improve quality of products, reduce energy consumption and shorten the
preparing time effectively.
3. Roving chopper speed can be synchronous with the production line.
4. Special cross cutting machine and good synchronization performance make cutting accurately.
5. All the machine parts adopt international standard steel make machine with high stability.
6. System failure can be automatically alarmed and show fault point. Make maintenance easily.
7. Particular parts adopt special purpose wire, durable in use.
8. Size and layout of machine can be made according to customer requirements.
Basic Parameter:
Name | GRP FRP GFRP Composite profiles pultrusion Machine and frp rebar machine |
Power Supply | 380V |
Main Frame | 350 H-Beam |
Main Power | 37kw |
Pump Power | 3kw |
Forming Speed | 10 m/min |
Roll Station | Upper Level 11 Stands, Down Level 11 Stands |
Roller Diameter | 70mm |
Hydraulic Pressure | 10-12 MPa |
Forming Size | 840mm, 900mm |
Feeding Thickness | 0.3-1.2mm |
Feeding Width | 1000mm |
Backboard Thickness | 14mm, 16mm |
Chain Size | 20mm |
Cutter Standard | Cr12 |
Roller Standard | Cr12 |
Cr-Plating Size | 0.05mm |
Overall Size | 7500*1700*1300mm |
Total Weight | 10t |
FAQ:
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.

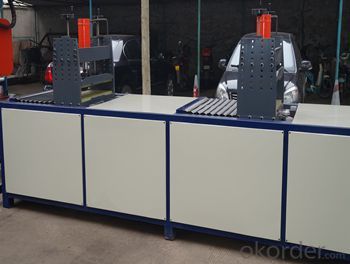

Product Pictures:
