Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1 Unit unit
Supply Capability:1000 Unit Per Year unit/month

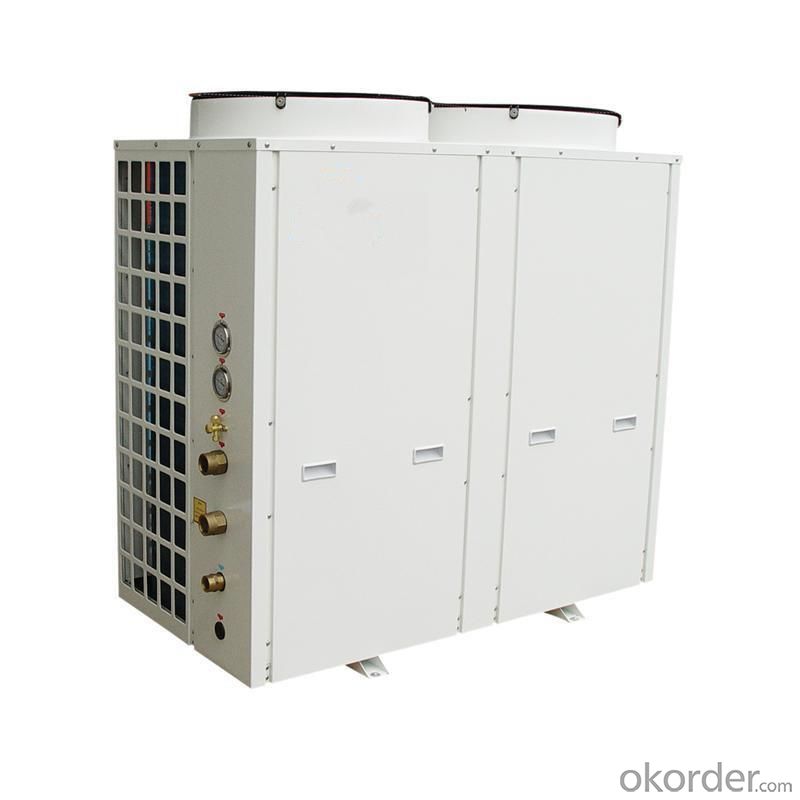

Specifications of Ground-sourcing Heat Pump
Ground sourced heat pumps simply move energy from one place to another. In the system, there is a refrigerant cycle, we call it reverse Carnot cycle, it consists of four component, Compressor, Condenser (doublepipe heat exchanger) ,Expansion valve, Evaporator (plate heat exchanger). The process of which is explained on the image below:
Technical Parameter of Ground-sourcing Heat Pump
| Items | Unit | 10WR | 15WR | 20WR | 25WR |
| Heating Capacity | Kw | 40.5 | 48 | 78 | 92 |
| Cooling Capacity | Kw | 32.5 | 38 | 66 | 80 |
| Input Power | Kw | 8.8 | 11.4 | 17.5 | 21.5 |
| Running Current Heating | A | 17.5 | 22.8 | 35 | 43 |

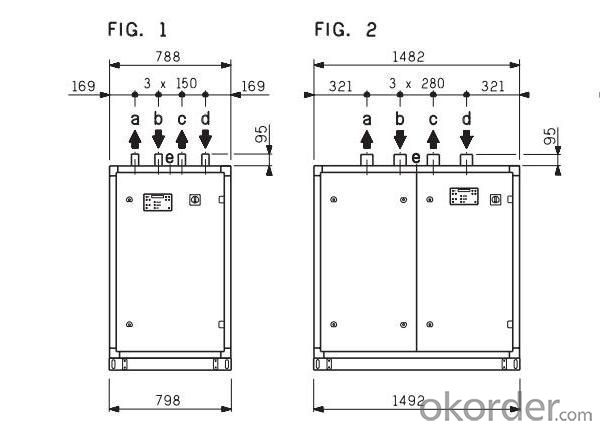

| Dimension | L mm | 1120 | 1120 | 1120 | 1120 |
| W mm | 503 | 603 | 603 | 603 | |
| H mm | 780 | 780 | 1560 | 1560 | |
| Weight | Kg | 268 | 298 | 525 | 525 |
| Power Supply | V/PH/HZ | 220V/50HZ | 380V/3PH/50HZ | ||
| COP | 3.9-4.8 | ||||
| Condenser type | Stainless steel plate type heat exchange | ||||
| Evaporator | Stainless steel ptype heat exchange | ||||

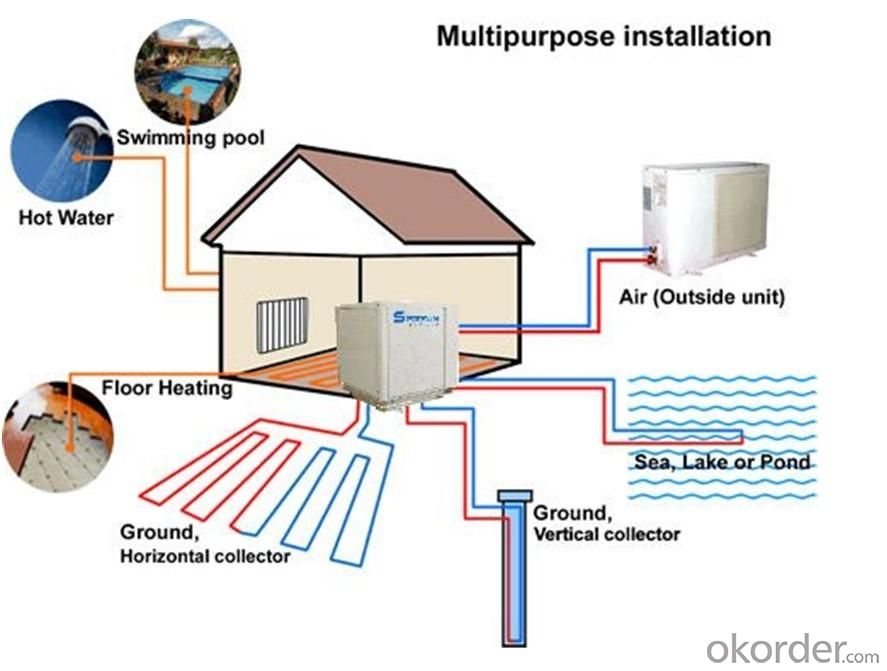

Ground Loop Types of Ground Sourcing Heat Pump
Ground Source Heat Pumps can be categorized as closed or open loops. Those loops can be installed in three ways: Horizontally, vertically, or in a pond/lake.
Components Description of Ground Sourcing Heat Pump
We mainly use Copeland Scroll Compressor. It is high efficiency, low noise, stable and long life span. We use plate heat exchanger, the heat pump can work automatically.
Usage and Applications of Ground Sourcing Heat Pump
Users can use it to supply sanitary hot water or/and heating house,house heating and house cooling.
Package and Delivery of Ground Sourcing Heat Pump
The whole system of Ground Sourcing Heat Pump is packaged in wooden box, delivered by sea. It should be avoid of moist, shaking and water to protect electricity product.
