Loading Port:Shekou
Payment Terms:TT or LC
Min Order Qty:10 pc
Supply Capability:100000 pc/month

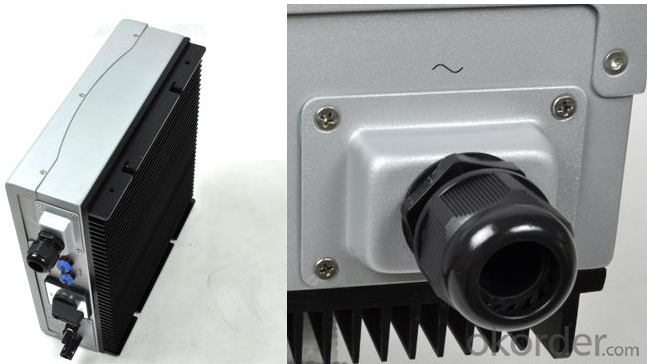

Grid Tied Solar inverter 8000-11000kw
High efficiency of 97.8% delivery more energy
Integrated DC disconnect switch
Consistent and stable performance across entire input voltage and output power voltage
Intelligent temperature management
Power balancer for three-phase grid connection
Bluetooth/ RF technology/ Wi-Fi
Sound control, easy installation maintenance procedure
Newest generation IGBTs and advanced MPPT algorithms
8000TL-US | 9000TL-US | 10000TL-US | 11000TL-US | |
| Inputdata | ||||
| Max. DC power | 8300W | 9300W | 10350W | 11400W |
| Max. DC voltage | 600V | 600V | 600V | 600V |
| Start Voltage | 360V | 360V | 360V | 360V |
| DC nominal voltage | 345V@ 208VAC 379V@ 240VAC | 345V@ 208VAC 379V@ 240VAC | 345V@ 208VAC 379V@ 240VAC | 379V |
| PV voltage range | 300-600V@208V 345-600V@240V | 300-600V@208V 345-600V@240V | 300-600V@208V 345-600V@240V | 345-600V@208V 345-600V@240V |
| MPP voltage range(full load) | 300-480V@208V 345-480V@240V | 300-480V@208V 345-480V@240V | 300-480V@208V 345-480V@240V | 300-480V@208V 345-480V@240V |
| Max. input current/per string | 30A/16A | 33A/16A | 36A/16A | 35A/16A |
| Number of MPP trackers/ strings per MPP tracker | 1/4 | 1/4 | 1/4 | 1/4 |
| Efficiency | ||||
Max.efficiency | 97.8% | 97.8% | 97.8% | 97.5% |
| Rated AC output power | 8000W | 9000W | 10000W | 11000W |
| AC nominal voltage; range | 208V/240V;183-229V@208V,211-264V@240V | |||
| Max. output current | 44A@208V 38A@240V | 44A@208V 38A@240V | 44A@208V 38A@240V | 38A@240V |
| AC grid frequency; range | 60Hz; 59.3-60.5Hz | 60Hz; 59.3-60.5Hz | 60Hz; 59.3-60.5Hz | 60Hz; 59.3-60.5Hz |
| Power factor | 1 | 1 | 1 | 1 |
| THDI | ＜3% | ＜3% | ＜3% | ＜3% |
| Grid connection type | Two phase | Two phase | Two phase | Two phase |
| Features | ||||
Display Warranty: 10years/15years | LCD opt/opt/opt | LCD opt/opt/opt yes/opt | LCD yes/yes/ opt/opt/opt yes/opt | LCD opt/opt/opt yes/opt |
| Generaldata | ||||
Dimensions(W/H/D) in mm Weight Operating temperature range Noise emission(typical) Self-Consumption (night) Topology Cooling concept Environmental Protection rating Altitude Relative Humidity | 400/743/222 40KG -25℃ ... +60℃ <46db(a)< p=""> ＜0.5W Transformerless Smart cooling NEMA 3R 2000m withoutderating 0~100% | 400/743/222 40KG -25℃ ... +60℃ <46db(a)< p=""> ＜0.5W Transformerless Smart cooling NEMA 3R 2000m withoutderating 0~100% | 400/743/222 40KG -25℃ ... +60℃ <46db(a)< p=""> ＜0.5W Transformerless Smart cooling NEMA 3R 2000m withoutderating 0~100% | 400/743/222 40KG -25℃ ... +60℃ <46db(a)< p=""> ＜0.5W Transformerless Smart cooling NEMA 3R 2000m withoutderating 0~100% |
| Certificates and ApprovalsUL 1741, UL 1998, IEEE 1547, FCC part 15(Class B), CSA C22.2 No. 107.1 |
