Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:100000000 watt/month
1.Features of the Solar Inverter
Maximum efficiency of 97.8％ and wide input voltage range
Internal DC switch
MTL-String
Sound control
Bluetooth/RF technology/WF-Fi
Transformerless GT topology
2.Data sheet of the Solar Inverter
| Model | CNBM-1500TL |
| Input data (DC) | |
| Max. DC power | 1800W |
| Max. DC voltage | 450V |
| PV Voltage Range | 100V~450V |
| Max.input current | 10A |
| Number of MPP trackers/strings per | 1/1 |
| MPP tracker |
| OUTPUT (AC) | |
| Rated AC output power | 1600W |
| Max AC power | 1650W |
| Max output current | 8A |
| Power Factor | 1 |
| THDI | ＜3％ |
| AC connection | Single phase |
| Efficiency | |
| Max efficiency | 97% |
| Euro weighted efficiency | 96.5% |
| MPPT efficiency | 99.5% |
| Protection devices | |
| Output over voltage protection varistor | yes |
| Ground fault monitoring | yes |
| Grid monitoring | yes |
| GENERAL Data | |
Dimensions, D X W X H (mm) | 360x329x132 |
| Weight (kgs) | 11.5 |
| Operating temperature range | －25℃...＋60℃ |
| Altitude | 2000m(6560ft)without derating |
| Self Consumption night | ＜0.5W |
| Topology | Transformerless |
| Cooling concept | Natural |
| Environmental | IP65 |
| Protecting Rating |
| Features | |
| DC connection | H4/MC4(opt) |
| Display | LCD |
| Interfaces:RS485/RS232/Bluetooth/RF/Zigbee/Wifi | yes/yes/opt/opt/opt/opt |
| Warranty:5 years/10 years | yes/opt |
| Certificates and approvals | CE.VDE 0216-1-1.DK5940.G83/1-1.G59/2.RD1663.EN50438.CEL-021.ICE-62109.ENEL-Guide |
3.Applications of the Solar Inverter
Inverter not only has direct communication transform function, but also has the maximum limit to carry on the function of the solar cell function and system fault maintenance function. In the aggregate, have active operation and shutdown function, maximum power tracking control function, prevent operation function alone (grid system use), the active voltage adjustment functions (grid system use), dc testing functions (grid system use), dc grounding detection function (grid system use)

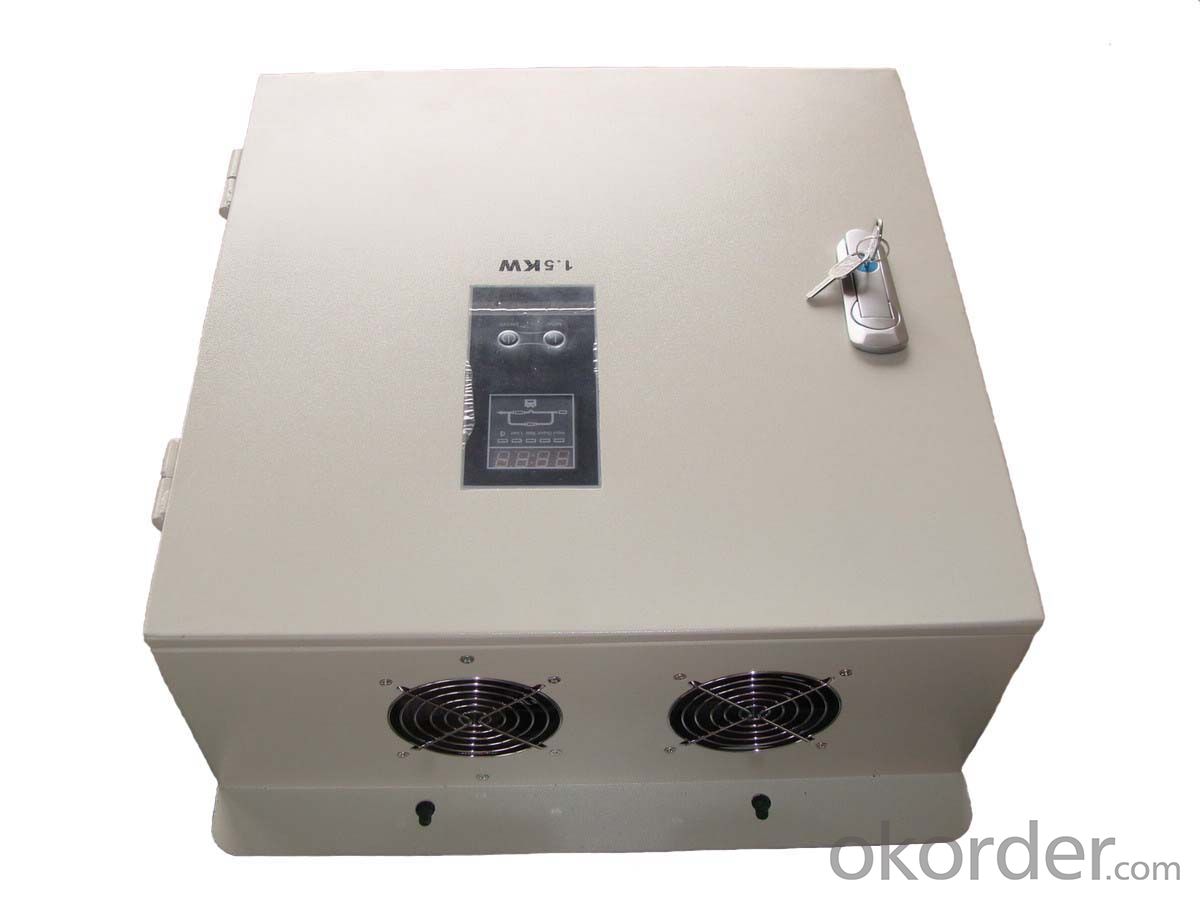

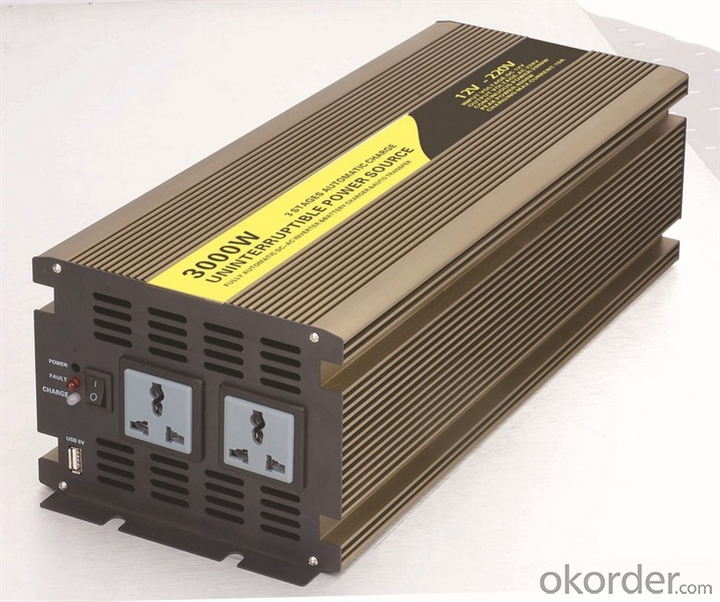

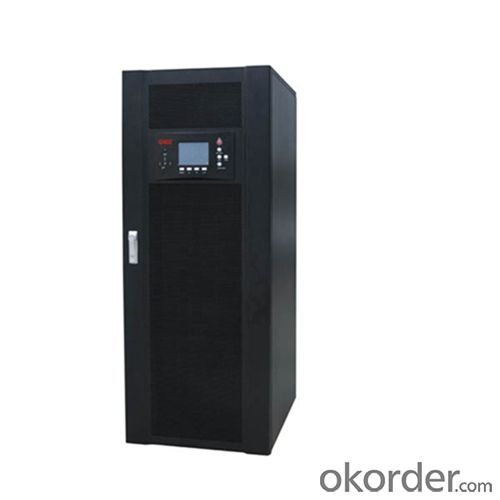

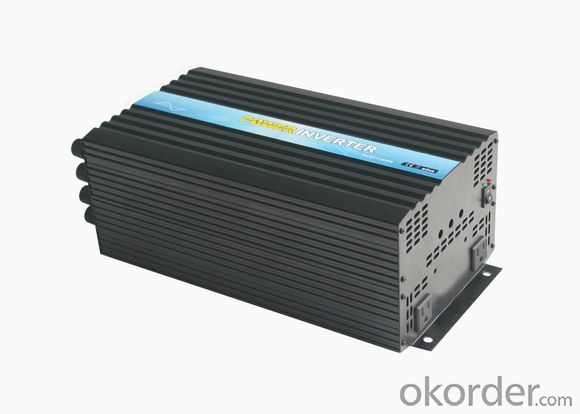

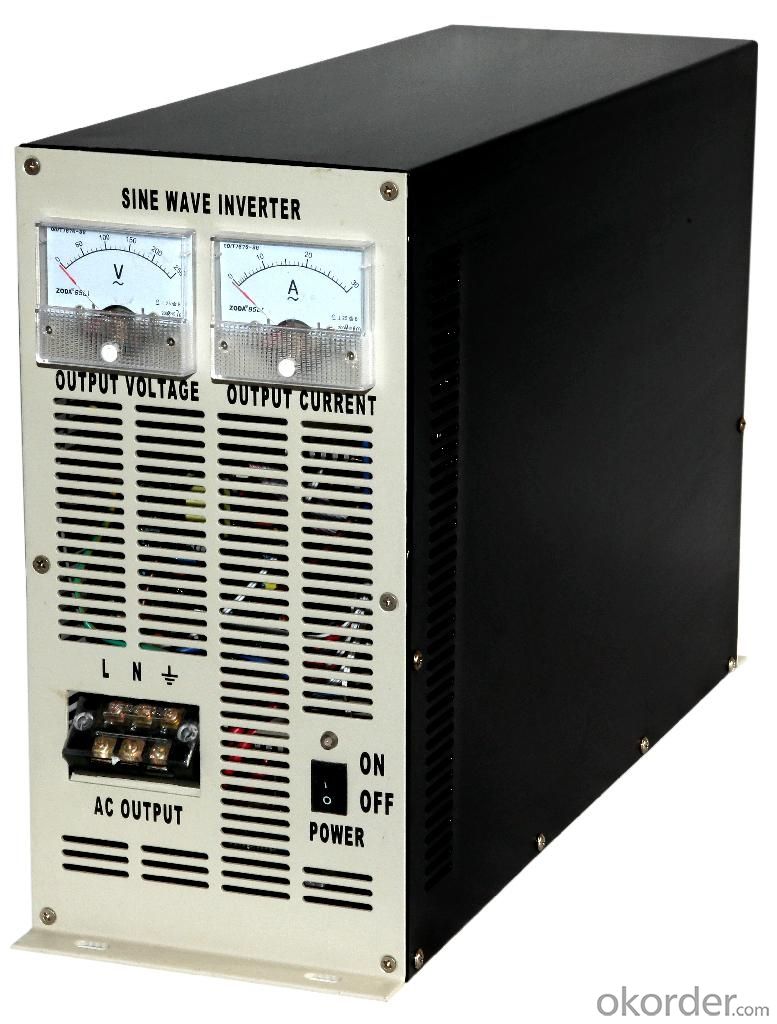

4.IMages of the Solar Inverter
FAQ
Q: Do you have the CE, TUV, UL Certification?
A: We’ve already passed all the tests, and any certificate is available.
Q: Have you ever sold your products to companies in my country?
A: Of course, we have customers in all general PV markets, but I think we should expand our market share along with the market growth.
Q: When did your company set up? You are a new company, how can I believe your quality?
A: We entered into Solar PV industry in 2005, now we have several plants in manufacturing of a-Si and c-Si panels, and our capacity is 220MW per year. Till now we have already passed all the tests by authorized laboratories, e.g. TUV, CE, UL.
Q: Can you help us install the module if we cooperate with you?
A: We haven’t entered into installation sector, but we have the plan in near future.
Q: How do you pack your products?
A: We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
Q: Can you do OEM for us?
A: Yes, we can.
Q: Can we visit your factory?
A: Surely, I will arrange the trip basing on your business schedule.
