Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:25 m.t.
Supply Capability:2000 m.t./month

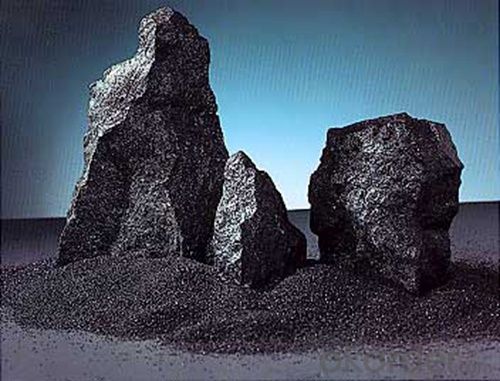

Green Silicon Carbide
1.Introduction:
Green Silicon Carbide is an extremely hard (Knoop 2600 or Mohs 9.4) man made mineral that possesses high thermal conductivity (100 W/m-K). It also has high strength at elevated temperatures (at 1000°C, Green SiC is 7.5 times stronger than Al2O3). Green SiC has a modulus of elasticity of 410 GPa, with no decrease in strength up to 1600°C, and it does not melt at normal pressures but instead dissociates at 2815.5°C.
Green SiC is an entirely new batch composition made from Silica sand and coke, and is extremely pure. It can be manufactured in many complex bonded shapes, which are utilized for superrefractory purposes. Green SiC is also ideal for a wide variety of abrasive applications.
2.Application:
Aerospace
Blasting
Coatings
Composites
Compounds
Honing Stones
Kiln Furniture
Lapping
Polishing
Refractories
Silicon, Quartz
Vitrified and Resinoid Grinding Wheels
Wire Sawing Silicon, Quartz
3.Chemical Composition(%)
Grit Size
| Sic | F.C. | Fe2O3 |
20#~90#
| ≥99.5. | <0.20 | ≤0.20 |
100#~180#
| ≥98.50 | <0.25 | ≤0.50 |
220#~240#
| ≥97.50 | <0.25 | ≤0.70 |
F230~F360
| ≥97.50 | <0.30 | ≤0.70 |
F400~F600
| ≥95.50 | <0.30 | ≤0.70 |
F800~F1200
| ≥94.00 | <0.50 | ≤0.70 |
4.Size Available:
F10-F220,F240-F1200
Other special size could be supplied as required.
5.Transit Pictures:
