Green Formwork-Table Style Early Stripping Formwork System

Product Description:

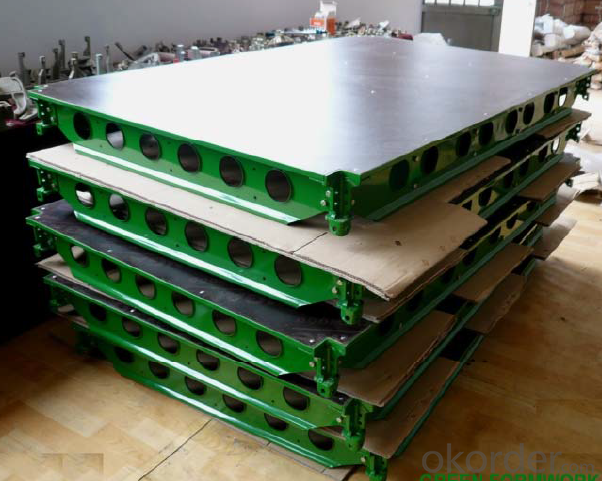

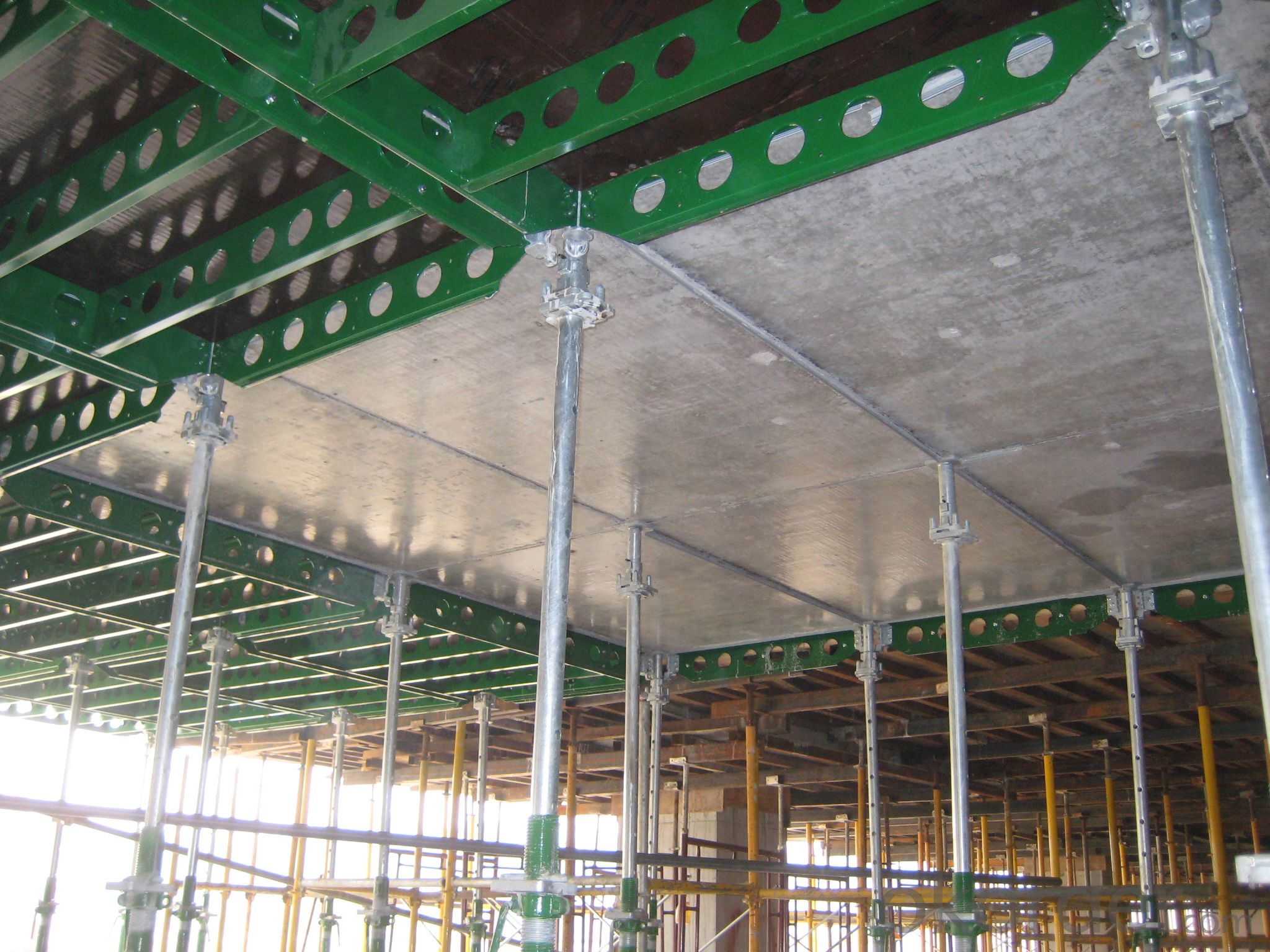

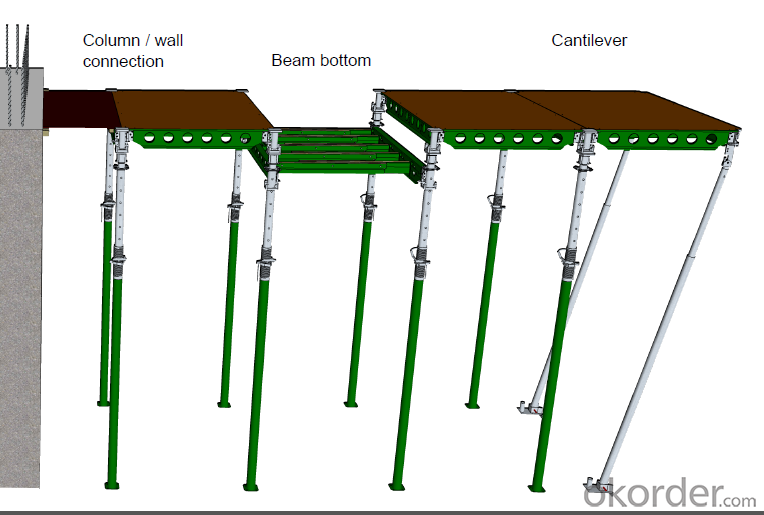

The Table Style Early Stripping Formowrk shoring system® is a high octane, high performance engineered modular panel shoring system. The Formwork offers more erection, stripping and financial satisfaction than can ever be expected from conventional shoring systems. It begins with rigid panel construction that enhances handling. The prop with its integrated drop-head puts you in control and helps to ensure confident erection and ease of striking, while back-propping remains undisturbed. These advantages result in a high rate of production. The panel and prop with engineered automatic wind lock provide job safety with a rigid interlocking system that prevents tipping during erection even without bracing.

The system can do slab thickness max.350mm and floor height upto 4m. Enabled with early stripping mechanism, which will be around 100 sqm/per person per day for assembly by skilled workers and takes 48 hours only after concrete casting then remove the panels to the next floor(only props remain), very fast and efficient, a lot of time and labor saved; Also the panels are with strong plywood embedded with 30+ time uses, which is also economical. Time, labor and plywood saved! Table concret formwork, empower your projects!

Panel Size:
