Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:1000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month
We are a professional manufacturer specialized in LED products including LED diodes, LED digital display, LED ball bulb, LED spotlight, LED tube, LED panel light.
Our LED diodes are suitable for lighting products.
Free sample after you give me your express account. Provide the best service to you!

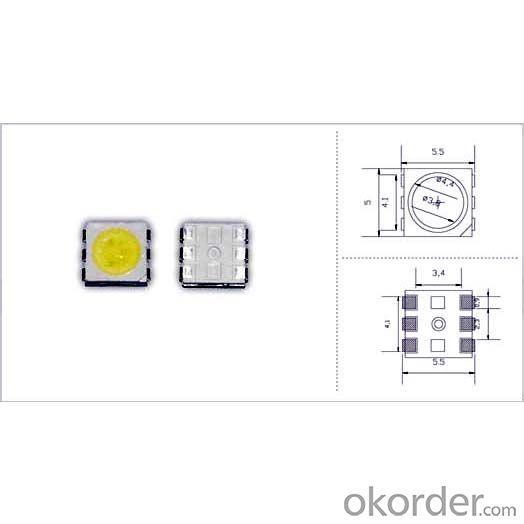

Specifications for LED Diode:
1.Electrical optical charactertistics(Ta25°C)
Parameter | Symbol | Min | Type | Max | Unt | Test Condition |
Luminous Intensity | IV | 6000 |
| 7000 | mcd | IF=20mA |
Correlated Color Temperature | CCT | 6000 |
| 6500 | K | IF=20mA |
Dominant Wavelength | ld |
|
|
| nm | IF=20mA |
Viewing angle | 2θ1/2 |
| 120 |
| deg | IF=20mA |
Forward Voltage | Vf | 3.1 |
| 3.2 | V | IF=20mA |
Reverse Current | IR |
|
| 5 | uA | VR=5V |
Suggestion Forward Current | IF | 3 | 5-10 | 20 | mA | IF=20mA |
2.Absolute Maximum Ratings (Ta=25°C):
Parameter | Rating | Unit | ||
Reverse Voltage | 5 | V | ||
Power Dissipation,Per Dice | 60 | mW/chip | ||
Operating Temperature Ranger | -25~+85 | °C | ||
Storage Humidity | 45%~85% | °F | ||
Storage Temperature Ranger | -30~+85 | °C | ||
Soldering Temperature |
|
| 260°C for 5 seconds | |
Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width) | 60 | mA/chip | ||
Continuous Forward Current | 30 | mA/chip | ||
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-15 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
