Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:1000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month

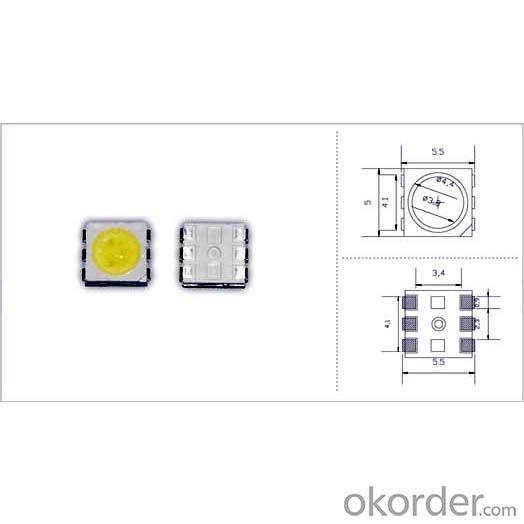

Specifications for LED Diode:
1.Electrical optical charactertistics(Ta25°C)
Parameter | Symbol | Min | Type | Max | Unt | Test Condition |
Luminous Intensity | IV | 6000 |
| 7000 | mcd | IF=20mA |
Correlated Color Temperature | CCT | 6000 |
| 6500 | K | IF=20mA |
Dominant Wavelength | ld |
|
|
| nm | IF=20mA |
Viewing angle | 2θ1/2 |
| 120 |
| deg | IF=20mA |
Forward Voltage | Vf | 3.1 |
| 3.2 | V | IF=20mA |
Reverse Current | IR |
|
| 5 | uA | VR=5V |
Suggestion Forward Current | IF | 3 | 5-10 | 20 | mA | IF=20mA |
2.Absolute Maximum Ratings (Ta=25°C):
Parameter | Rating | Unit | ||
Reverse Voltage | 5 | V | ||
Power Dissipation,Per Dice | 60 | mW/chip | ||
Operating Temperature Ranger | -25~+85 | °C | ||
Storage Humidity | 45%~85% | °F | ||
Storage Temperature Ranger | -30~+85 | °C | ||
Soldering Temperature |
|
| 260°C for 5 seconds | |
Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width) | 60 | mA/chip | ||
Continuous Forward Current | 30 | mA/chip | ||
Features

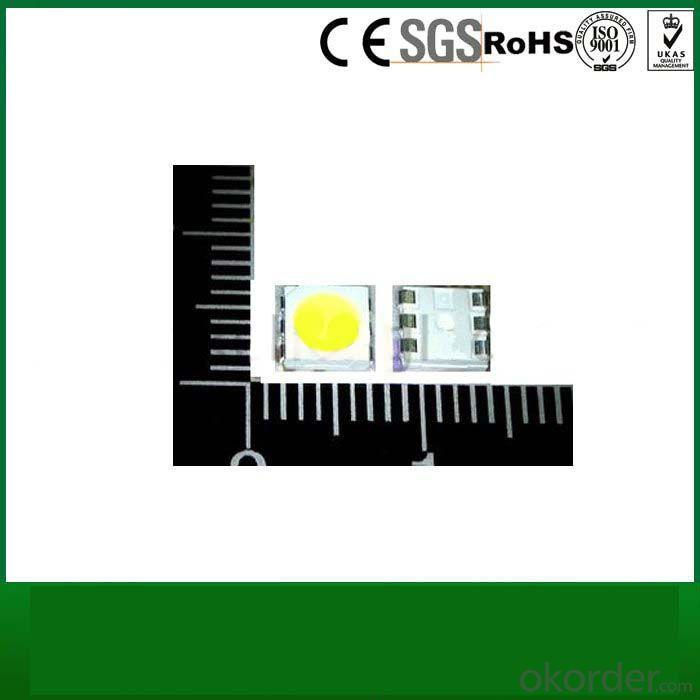

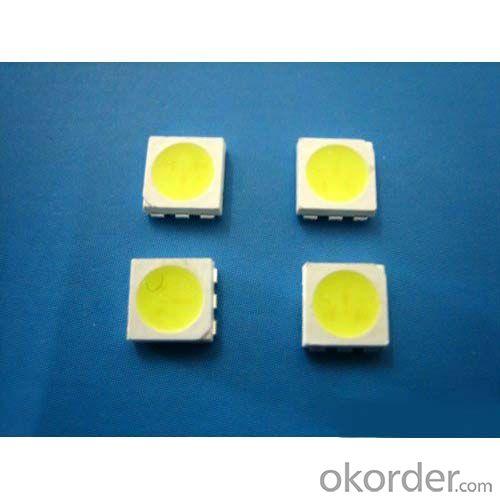

Good quality super bright 5050 smd led
Suitable for all SMT assembly and solder.
RoHS compliant .
Super-luminosity chip LED.
Application
Our LED diodes are suitable for lighting products.
Optical indicator
Indoor display
Interior automotive lighting
Backlight for LCD, switch and Symbol, display
Light tube application
