Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
BRAND OF CHASSIS: GOLDEN PRINCE

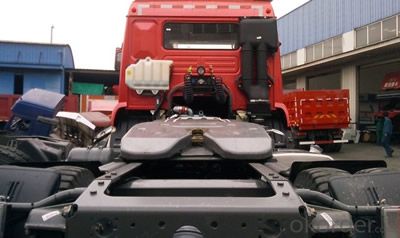

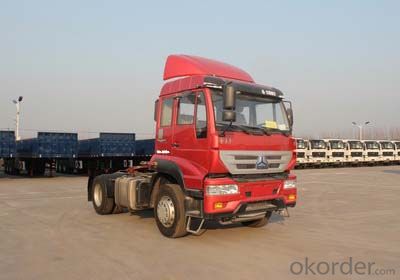

CHASSIS MODEL: ZZ4181M3611A1/L Tractor Truck
General Configuration : Golden Prince,266HP,4×2,Europe Ⅱ
| Mass Parameters | Total Weight (kg) | 18000 | |
| Rated Loading Weight (kg) | | ||
| Size Parameters | Overall Dimensions (mm) | Length | 5950 |
| Width | 2496 | ||
| Height | 3070 | ||
| Distance between Axles (mm) | 3600 | ||
| Performance Parameters | Max. Driving Speed (km/h) | 93 | |
| Economic Speed (km/h) | 70 | ||
| Recommended Configuration | Engine | WD615.62 | |
| Gearbox | HW13710C | ||
| Rear Axle | HW1249 | ||
| Oil Tank (L) | 400 | ||
| Suspension (front/rear spring) | 4/5 | ||
| Tire | 29.5/80R22.5 | ||
