Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:10 pc
Supply Capability:5000 pc/month
| Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Medium Pressure |
| Power: | Manual | Material: | Ductile Iron | Temperature of Media: | Normal Temperature |
| Media: | Base | Port Size: | flanges | Place of Origin: | Shanghai, China (Mainland) |
| Model Number: | VA006 | Brand Name: | SPS | name: | ansi 125 / 150 gate valve |
| specification: | ansi 125 valve | type: | rising stem | seal: | resilient soft seated |
| kind: | gate valve | pressure: | PN10/16/25 | standard: | ansi 125/150 |
| face to face standard: | ansi B16.10 | flanges: | ansi B16.1/16.5 |
1) Product information: the gate valves supplied are mainly used for adjusting water, steam, oil, gas, and natural gas in chemical industries
2) Standards: AWWA C509/C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
3) Connection type: flanged type, push-on type, mechanical joint type, plain ends type
4) Material:
a) Body/Bonnet : Ductile Iron GGG500-7
b) Wedge : DI , core fully vulcanized with NBR or EPDM rubber
c) Wedge Nut : Brass
d) Stem : Stainless steel , BS970 431S29 or DIN17440x20Cr13
e) Gasket/O-ring : NBR/EPDM
f) Washer : Carbon steel or Stainless steel .
5) Size: DN50~DN1200/2" ~ 48"
6) Pressure grade: PN10, PN16,PN25,ANSI 125/150
7) Coating:
a) Fusion-bonded epoxy 200-250 microns inside and out side
b) Coating as per customers' requirement
8) Package :Plywood case.(each pc into one bubble plastic bag, several pcs into Plywood case).

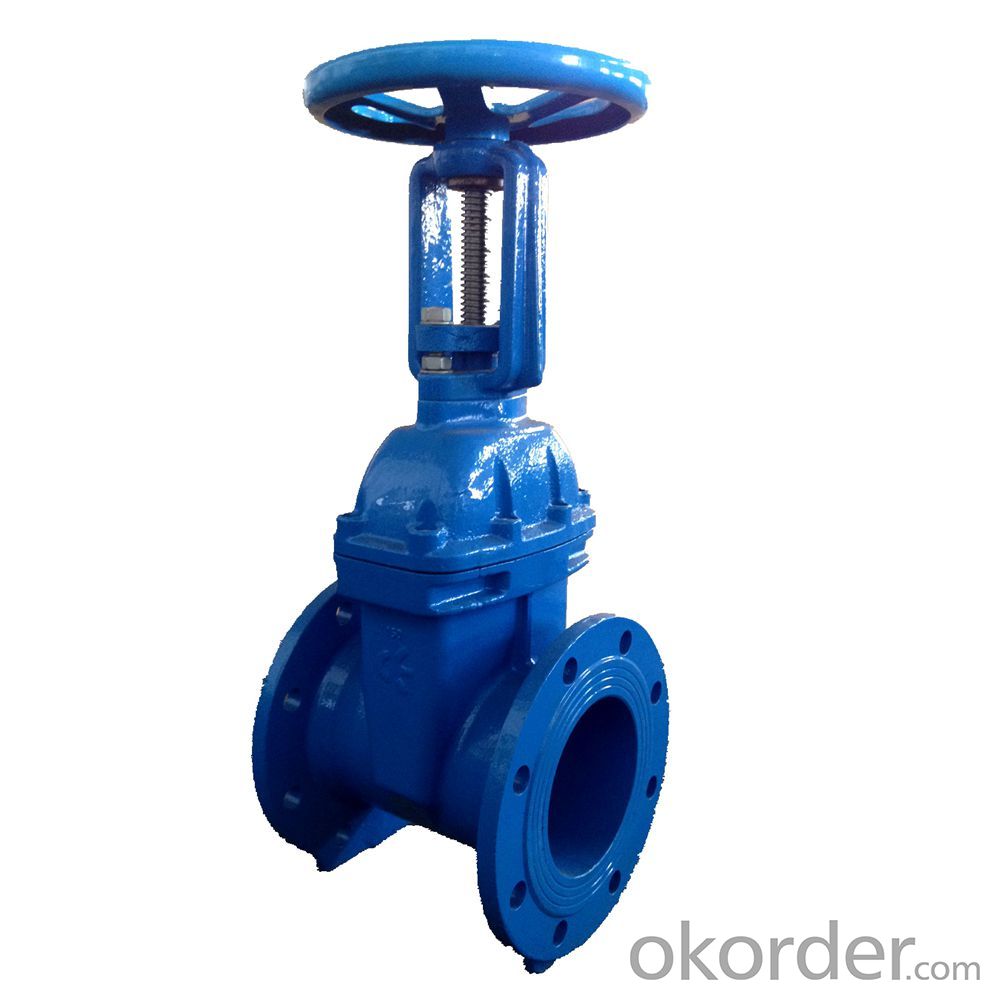

Product Name | rising stem resilient soft seated ansi 125/150 gate valve |
Material | CI/DI |
Color | blue/red/gray/Coating as per customers' requirement |
Standard | AWWA C509/C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664 |
Connection type | flanged type, push-on type, mechanical joint type, plain ends type |
Package | Plywood case.(each pc into one bubble plastic bag, several pcs into Plywood case). |
Size | DN50~DN1200/2" ~ 48" |
Used | adjusting water, steam, oil, gas, and natural gas in chemical industries |
