Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

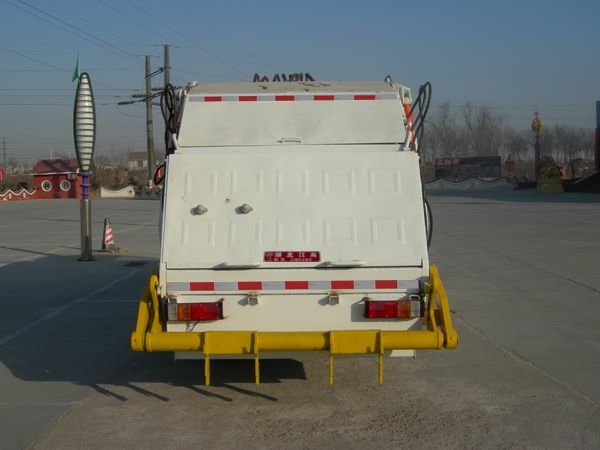

Garbage Truck Swz Swing Arm 5500-16000L Euro IV 4X2/6X4
Model NO.:QDZ5160ZXXSJ
Type:Garbage Truck
Emission Standard:Euro 4
Transmission Type:Manual
Drive Wheel:4WD
Condition:New
Power:Diesel
Truck Type:Garbage
Tire Design:Radial
Seats:≤5
Tire Certification:ISO
Tire Type:Inner Tube
Load Capacity:30t
Export Markets:Global
Trademark:SINOTRUK
Packing:Packed in Nude
Origin:China
HS Code:87059099
Production Capacity:20000PCS/Year
1. Favorable hydraulic tipping gear.
2. Lowest vehicle shut height in China increases the stability performance when driving and unloading.
3. Reasonable design for cargo box.
4. Reinforced sub frame design to ensure the reliability when lifting and unloading.
| MAIN SPECIFICATIONS | |||||
| Model | ZZ3161M4011W | Gross Vehicle Weight | 16000kg | ||
| Engine | Brand SINOTRUK | Dead Weight | 7200kg | ||
| Loading Mass | 8000kg | ||||
| WD615.62 (EuroII) | Body Volume | 12m3 | |||
| Maximum Output | 266HP | Cabin | One sleeper A/C | ||
| Transmission | HW15710 | Radius of Swing Arm | 3017mm | ||
| Front axle | HF7 | Angle of Swing Arm | 122± 1° | ||
| Rear axle | HC16 | ||||
| Load Time | ≤ 60 | ||||
| Unload Time | ≤ 50 | Rated Pressure of Hydraulic System | 21MPa | ||
| Discharging Angle | ≥ 85° | Tyre | 12.00R20 Radial tyre | ||
| Overall Dimension mm | 7450X2470X3570 | ||||
