Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

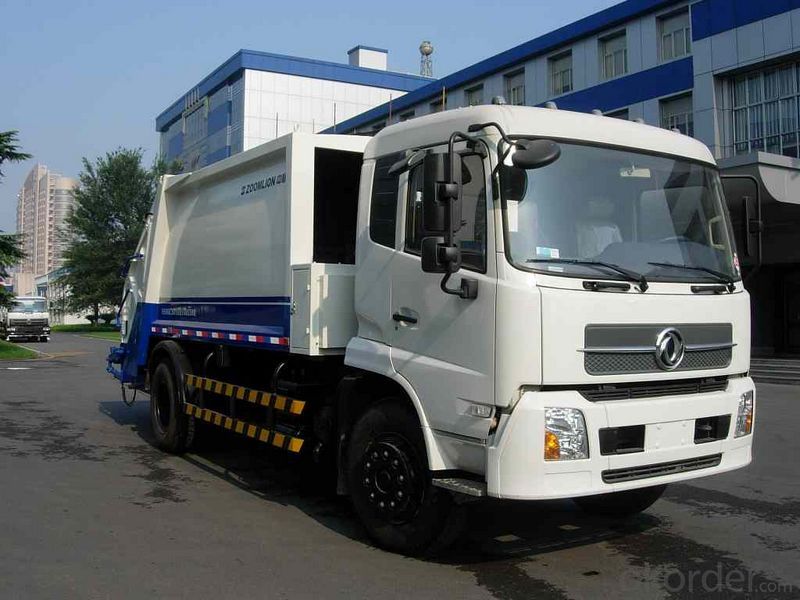

Garbage Truck Safe Container Detached for Sale (HZZ5140XLJ
Model NO.:HZZ5140XLJ
Type:Garbage Truck
Certification:CCC
Volume:10000-20000L
Emission Standard:Euro 3
Engine Type:4 Stroke
Payload:13.4t
Fuel:Diesel
Drive Wheel:6×4
Condition:New
Dimensions:8690X2496X3100(Mm)
Gross Weight:25000kg
Max.Payload:13250kg
Tare Weight:11620kg
Axle Payload:7000/18000
Front/Rear Overhang:1460/1590mm
Wheelbase:4325+1350, 4600+1350mm
Approche/Departure Angle:15/19degree
Spring Leaf Steel:9/12, 10/12, 10/-
Export Markets:Global
Trademark:China. Jinggong
Packing:Nacked
Standard:ISO9001, CCC
Origin:Hubei, China
Production Capacity:20units/Months
| Model | HZZ5140XLJ |
| Chassis Model | EQ3141KJ |
| Chassis Manufacturer | DONGFENG |
| Outer dimension(mm) | 6700×2490×3250 |
| Wheelbase (mm) | 3800 |
| Number of Axle | 2 |
| Tare weight(Kg) | 8205 |
| Payload(Kg) | 6500 |
| Engine model/Engine power(kw) | ISBE185 30/136 ISDe180 30/132 ISDe185 30/136 ISDe210 30/155 |
| Fuel type | Diesel |
| Vehicle emission standard | III(National III) |
| Spec. of Tyre | 10.00-20/10.00R20 |
| Max. Speed(km/h) | 85 |
