Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

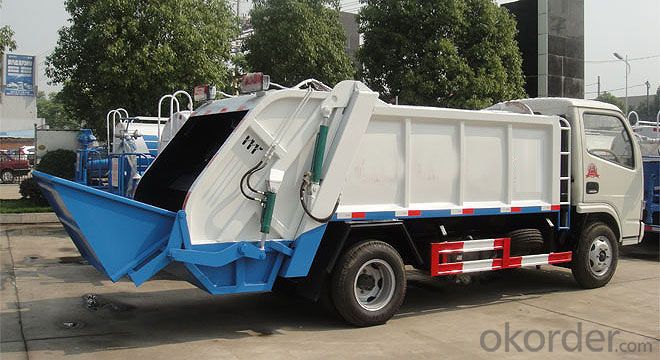

Garbage Truck Rear Loading 16m3 (QDZ5160ZYSA)
Model NO.:MD5060R
Type:Garbage Truck
Certification:ISO9000, CCC
Emission Standard:Euro 3
Transmission Type:Manual
Engine Type:4 Stroke
Fuel:Diesel
Drive Wheel:2WD
Models:Medium
Usage:Compression Type
Condition:New
Power:Diesel
Truck Type:Tanker Truck
Tire Design:Radial
Seats:≤5
Tire Certification:ISO
Tire Type:Inner Tube
Load Capacity:1 Ton
Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Trademark:MUDAN
Packing:Bulk
Standard:ISO9001
Origin:China
HS Code:87042100
Production Capacity:10, 000 PCS/Year
Model: MD5060R
Type: 4x2, Sanitation truck
Driving type: LHD
DIMENSION
Overall dimension (mm): 5775 x1960*2670
Tank capacity (mm): 5.5L
Wheelbase(mm): 3360
Tread(mm): 1440 (front), 1425 (rear)
Curb vehicle weight(kg): 4365
Gross vehicle weight(kg): 5560
Payload (kg): 1000
Net cycle time of pressing & filling: 15 Seconds
Net cycle time of Lifing process: 15 Seconds
Net cycle time of unlaoding: 20 Seconds
ENGINE
Model: CY4102BZLQ
Type: Diesel, 4-cylinder, in line, water cooled, direct injection, turbocharged, intercooler
| Model | ZZ3161M4011W | Gross Vehicle Weight | 16000kg | ||
| Engine | Brand SINOTRUK | Dead Weight | 7200kg | ||
| Loading Mass | 8000kg | ||||
| WD615.62(EuroII) | Body Volume | 12m3 | |||
| Maximum Output | 266HP | Cabin | One sleeper A/C | ||
| Transmission | HW15710 | Radius of Swing Arm | 3017mm | ||
| Front axle | HF7 | Angle of Swing Arm | 122± 1° | ||
| Rear axle | HC16 | ||||
| Load Time | ≤ 60 | ||||
| Unload Time | ≤ 50 | Rated Pressure of Hydraulic System | 21MPa | ||
| Discharging Angle | ≥ 85° | Tyre | 12.00R20 Radial tyre | ||
| Overall Dimension(mm) | 7450X2470X3570 | ||||
