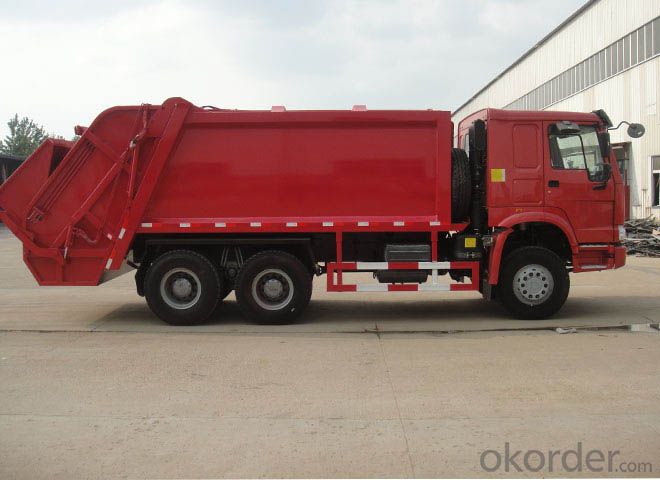

Garbage Truck High Quality Camc 6X4 European Type
Model NO.:C245 -33
Type:Roll Off
Certification:ISO9000
Volume:＞15000L
Emission Standard:Euro 3
Transmission Type:Manual
Engine Type:4 Stroke
Payload:40T
Fuel:Diesel
Drive Wheel:6×4
Condition:New
Garbage Box:17m3
Export Markets:Global
Trademark:CAMC
Packing:Nude
Standard:SGS
Origin:China
HS Code:8701909000
Production Capacity:500, 00 PCS/Year
Other descriptions:
Model: C245 -33
Euro 3 Engine
Tires:10.00-20, 10.00R20 Tires of A class brand;
| Basic Information | |||||
| Vehicle name | Garbage truck | Chassis : | DONGFENG | ||
| Outline size(L × W × H) (mm) | 9910 × 2500 × 3200 | Cargo inline size(L × W × H)(mm) : | / | ||
| Rating mass(kg) | 10065 | Empty mass(Kg) : | 14805 | ||
| Full mass(kg) | 25000 | Emission standard | Euro 3 | ||
| Engine Information | |||||
| Model | C245 -33 | Type | 6 Cylinder Diesel engine | ||
| Power/displacement(KW/ML) | 184/6700 | Manufacture | DONGFENG | ||
| Chassis Information | |||||
| Wheelbase(mm) : | 4350+1300,4350+1350 | Axle load(kg) F/R | Front :7000/Rear :18000 | ||
| Tire | 10.00-20,10.00R20 | Max speed (km/h) : | 90 | ||
| Front suspension(mm) | 1460 | Rear suspension(mm) | 2800 | ||
| Front track(mm) | 1986 | Rear track(mm) | 1860 | ||
| Approach angel( ° ) | 20 | Departure angle( ° ) | 10 | ||
| Steering | Power steering | Brake | Air brake | ||
| Cabin | Straight head 1 rows 2 doors ,allowable 2 persons | ||||
| Special function | |||||
| Bucket capacity ( m ³) | 16-17 | Filling work cycle time (s) | 35 | ||
| Filling mouth lowest part and ground distance (mm) | 860 | Discharge trash operating time (s) | 40 | ||
| An loads trash operating time (s) | 12 | Max broke force of compression (T) | 16 | ||
| Max discharge strength (T) | 18 | The filling lift time (S) | 15 | ||
