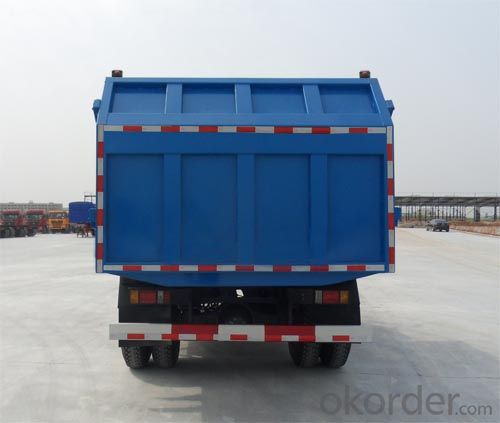

Garbage Truck 145 Recycling with Cummins Engine

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 PCS

Supply Capability:1500 PCS/month

Product Description:

Garbage Truck 145 Recycling  with Cummins Engine

Product Details

Basic Info.

Model NO.:EQ3121GL7DJ



Type:Garbage Truck

Certification:ISO9000, TS16949



Fuel:Diesel

Color:White, Yellow, Red



Export Markets:South America, Southeast Asia, Africa, Mid East

Additional Info.

Trademark:Dongfeng



Packing:Standard

Standard:standard



Origin:China

HS Code:87042210



Production Capacity:500sets/Year

Product Description


Dongfeng 145 Recycling Garbage Truck
ProductRecycling Garbage truckOverall dimension7000× 2470× 2900  (mm)
Chassis modelEQ3121GL7DJCompartment dimension  (mm)
Gross weight17950  (kg)Approach angle/Departure angle32/24 (° )
Load capacity> 12 tonSteeringHydraulic with compressed air assistant
Curb weight5800 (kg)Max speed90  (km/h)
EngineYC4E140-20, EURO II, 143hp, 4257ml
TypeRecyclingPower143HP
ManufacturerDongfeng Cummins Engine Co., Ltd.
Emission standardEuro III
Axle nos2Front tread1250(mm)
Wheelbase3950(mm)Rear tread1920(mm)
Tyre nos 6Tyre specification9.00R20
Fuel typeDieselTransmission6-SPEED with overdrive
Exhaust/hp4257/143 (ml/hp)Passenger nos  3
Remarks1. Q235A carbon steel, Equipped with hermetic dustbin, hydraulic system.
2. Equipped with two advanced two-way-acting hydraulic cylinders, cycling               time< 60m
3. One vehicle can cooperate with several dustbins to improve the ability of cycle      operation. Cycling time< 60s
