Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

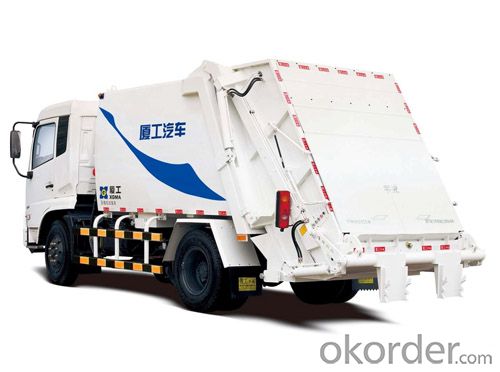

Garbage Compactor Truck Factory Direct Selling Compressed
Model NO.:CLW compactor garbage truck
Type:Compactor
Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Volume:＞15000L
Emission Standard:Euro 2
Transmission Type:Manual
Engine Type:4 Stroke
Payload:20T
Fuel:Diesel
Drive Wheel:6×4
Brand:Sinotruk
Models:Large
Usage:Compression Type
Chassis:Zz
Condition:New
Description:Factory Direct Selling Garbage Compressed Truck
Driving Model:4X2,6X6,6X4, 6X2,8X4,8X2,4X4
Engine Brand:Dongfeng,Deutz Ranault ,Yc Sc Wd,Cummins
Chassis Brand:Dongfeng Sinotruk HOWO Faw Foton JAC Shaman Isuzu
Exhaust/Power(Kw):160,170,190,220,260 290HP Compctor Garbage Truck
Warranty:3 Key Parts for 1 Year(Engine,Chassis,Transmission
After-Sales Service Provided:Overseas Third-Party Support Available
Alxes Brand:BPW Fuwa or L1 for Compactor Garbage Brand
Tire:11.00r20 12.00r20 for Garbage Compressed Truck
Capacity Load:5t,10t,15t,20t,25t,30tcompactor Garbage Truck
Export Markets:Global
Trademark:CLW compactor garbage truck
Packing:Naked with Wax for Compactor Garbage Truck
Standard:ASME Standard, ISO,SGS,BV,CCC,SONCAP AND OTHERS
Origin:Hubei, China Made Compactor Garbage Truck
Production Capacity:10000sets /Year
| Main Technical Parameters | |||
| Total weight | 25000kgs | Whole truck dimension | 9800x2496x3048mm |
| Rated capacity | 13870kgs | Garbage box dimension | 7100x2326x2050mm |
| Kerb weight | 11000kgs | Garbage box volume | 16 m3 (16000L) |
| Passengers | 2 people | Fillter volume | 2m3 |
| Approach/departure angle | 16/15 | Front/rear overhang | 1500/2625mm |
| Axle no. | 3 | Wheel base | 4325+1350mm |
| Pressure of | 20Mpa | Cycle Time of Filling | ≤25s |
| Hydraulic System | |||
| Lifting Time of Filler | 8~10s | Time of Discharging | ≤40s |
| Max.Compression Force | >25000kgs | Front / rear sewage | 250+150L |
| tank volume | |||
| Chassis Parameters | |||
| Chassis brand | Sinotruck | Tyre nos. | 10 |
| Chassis dimension | 9800x2496x1050mm | Tyre model | 11.00-20 , bias tyres |
| Front axle | HF7 (7t) | Rear axle | HW1697 |
| (speed ratio:3.93) | |||
| Steering | ZF8098 hydraulic steering with power assistance | ||
| (18MPa steering oil pump) | |||
| Transmission | HW15710 , 10 forward and 2 reverse (manual) | ||
| Fuel type | Diesel | Fuel tank | 300L |
| Engine model | Emission standard | Engine power | Max. speed |
| WD615.87 | EuroII | 290hp | 90km/h |
| 1. Bore x stroke : 126x130mm | |||
| Others of engine | 2. Displacement : 9.726L | ||
| 3. Rated power & revolving speed : 266hp & 2200r/min. | |||
| 4. Max. Torque & revolving speed : 1100N.m & 1100-1600r/min. | |||
