Galvanized Iron Wire
Descriptions of Galvanized Iron Wire
Galvanized wire can be divided into: Electro galvanized iron wire & Hot dipped galvanized iron wire.
1. Material:
Q195, Q235, 1006, 1008, 1010, 1018
We use high quality carbon structural steel wire rod Q195, Q235, 1008, 1018 etc as raw material to manufacture galvanized iron wire
2. Wire Diameter:
0.2mm-5mm
3. Zinc Amount:
10g-360g/m2
4. Tensile strength:
35-50kgs/mm2
5. Elongation:
10% - 25%
6. Packing:
0.2-800kg/roll, with plastic film & woven bag, or plastic film & hessian cloth, or robbins, or as your request.
7. Popular Specifications:
Galvanized Wire | |||
Wire gauge | SWG(mm) | BWG(mm) | Metric(mm) |
8 | 4.05 | 4.19 | 4.00 |
9 | 3.66 | 3.76 | 4.00 |
10 | 3.25 | 3.40 | 3.50 |
11 | 2.95 | 3.05 | 3.00 |
12 | 2.64 | 2.77 | 2.80 |
13 | 2.34 | 2.41 | 2.50 |
14 | 2.03 | 2.11 | 2.50 |
15 | 1.83 | 1.83 | 1.80 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.40 |
18 | 1.22 | 1.25 | 1.20 |
19 | 1.02 | 1.07 | 1.00 |
20 | 0.91 | 0.84 | 0.90 |
21 | 0.81 | 0.81 | 0.80 |
22 | 0.71 | 0.71 | 0.70 |
8. Applications of Galvanized Iron Wire
weaving wiremesh, baling, armouring cable.
Galvanized iron wire is mainly used in making chain link fence ,barbed wire ,gabion basket, hexagonal wire mesh, crimped wire mesh, expressway wire mesh fence, and more .
In addition,the galvanized wire also can used as binding wire to bind everyday objects.
Corner of Factory

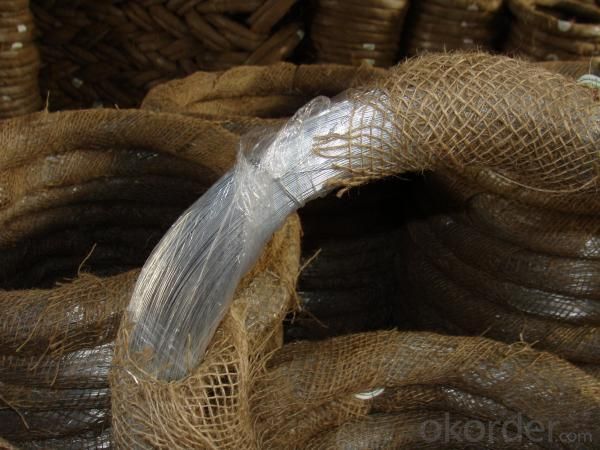

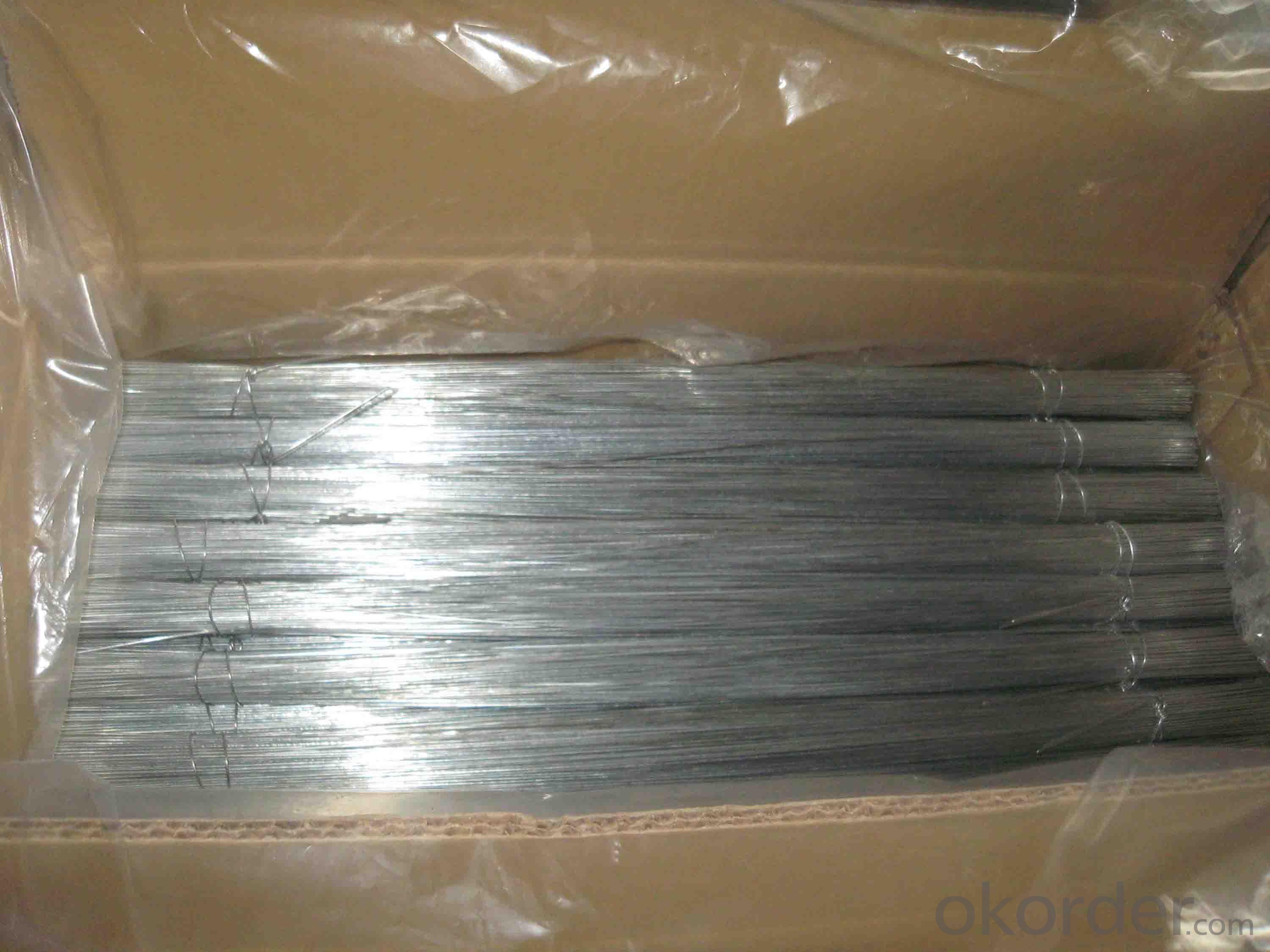

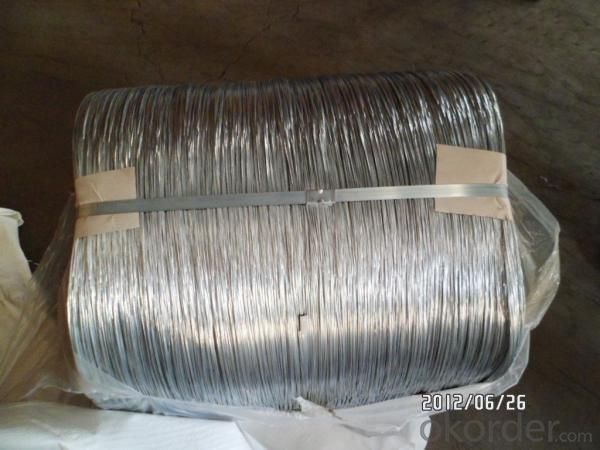

Galvanized Iron Wire

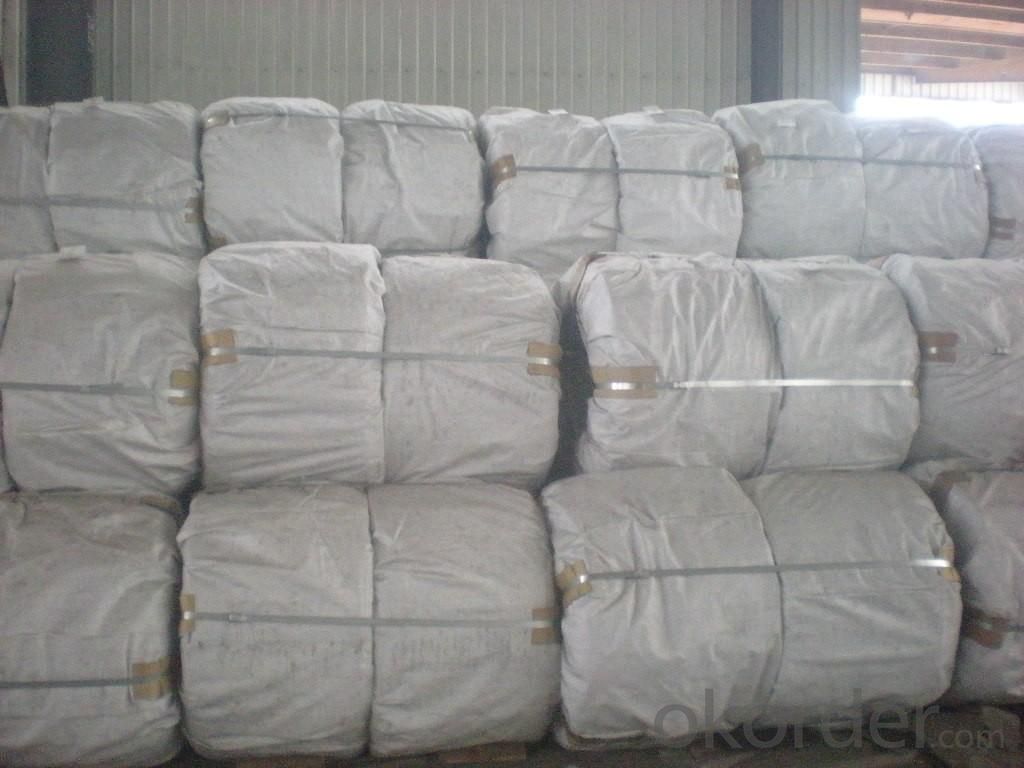

Delivery
