Galvanized Gabion Box For Stone - Buy Iron Wire Mesh from suppliers, Manufacturers - Okorder.com

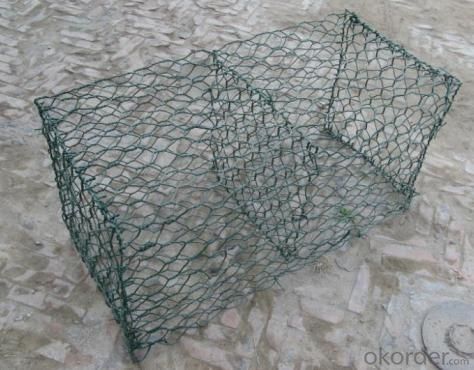

Galvanized Gabion Box For Stone

Loading Port:China Main Port

Payment Terms:TT OR LC

Min Order Qty:-

Supply Capability:-

Product Description:

Quick Details

Place of Origin:	China (Mainland)	Side wire:	thinner than netting wire	Model Number:	MZ-GM
Type:	hexagonal wire mesh	Application:	gabions/fence/protective fence	Hole Shape:	Hexagonal
Aperture:	60x60mm-100x100mm	Material:	Galvanized Iron Wire,Low-Carbon Iron Wire	Wire Gauge:	2.0mm to 4.5mm
wWeave style:	twisted	Tech:	weave	Tensile strength:	38kg/m2
Product name:	gabion/gabion box/gabion basket/stone cage	color:	light green,yellow, grey,etc	Certificate:	ISO9001
Gabion size:	2x1x1,3x1x1,6x1x1...	Main Market:	North America,Eastern Europe,Southeast	binding wire:	thick than netting wire

Packaging & Delivery

Packaging Detail:	Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic).
Delivery Detail:	Depend on amount

Specifications

gabion wire mesh
1.Material: galvanized wire
2.Wire dia:2.0-4.0mm
3.Mesh :60*80,80*100mm
4.Gabion size:2*1*1m

Opening (mm)	Wire Diameter(Metal Wire) (mm)	Wire Diameter (PVC Coate)/ Inner/Outside(mm)	Strands
60X80	φ2.0-2.8	φ2.0/3.0-2.5/3.5	3
80X100	φ2.0-3.2	φ2.0/3.0-2.8/3.8	3
80X120	φ2.0-3.2	φ2.0/3.0-2.8/3.8	3
100X120	φ2.0-3.4	φ2.0/3.0-2.8/3.8	3
100X150	φ2.0-3.4	φ2.0/3.0-2.8/3.8	3
120X150	φ2.0-4.0	φ2.0/3.0-3.0/4.0	3

Hexagonal Wire Netting Gabions
Model	Opening(mm)	Body wire(mm)	Edge wire(mm)	Lacing wire(mm)	Max. width
DL60	60X80	2.0-2.8	3.0-4.0	2.0-2.2	4M
DL80	80X100	2.0-3.0	3.0-4.0	2.0-2.2	4M
DL80W	80X120	2.0-3.0	3.0-4.0	2.0-2.2	4M
DL100	100X120	2.0-3.0	3.0-4.0	2.0-2.2	4M
WL100W	100X150	2.0-3.0	3.0-4.0	2.0-2.2	4M
DL120	120X150	2.0-3.0	3.0-4.0	2.0-2.2	4M
