Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10 m.t.
Supply Capability:100 m.t./month
| Application: | Heat Insulation | Thickness: | 3/10/80mm | Width: | 1000/900/300mm |
| Length: | 1200/1000/900/600mm | Grade: | HA (High Aluminum) | Chemical Composition: | Al2O3 (52-55%) |
| Ultimate Strength (≥ MPa): | ≥0.49Mpa | Working Temperature: | 1200C | Fiber Diameter: | 3-5um |
| Thermal Conductivity: | 0.12-0.20w/m.k(800-1000℃) | Shrinkage (1800℉, 3h): | -3%(24h) | Place of Origin: | China (Mainland) |
| Model Number: | ceramic fiber board | Brand Name: | Color:: | Pure White | |
| Density: | 220-480kg/m3 | Certificate: | ISO9001,CE,REACH,TUV,BV | Al2O3+SIO2: | 99% |
| The third inspection: | SGS, TUV, BV |
| Packaging Detail: | inner plastic bag, outer carton or pallet. |
| Delivery Detail: | 15 days upon advanced payment |
| Product Description | ||||||||||

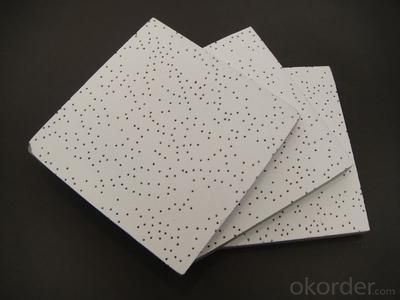

Ceramic Fiber Board by adding a small amount of high-purity alumina silicate fiber binders, which is made through automation control and continuous production process, with a host of features such as precise size, good flatness, high strength, lightweight, excellent thermal shock resistance and anti-stripping, which can be widely used for insulation in the linings around and at the bottom of kilns, as well as ceramic kilns fire position, craft glass mold and other positions | ||||||||||
Item | Ceramic fiber board |
Material | Coal gangue |
Specifications | The thinnest board size:3-10mm(Density:320-350kg/m3) The large board size :10-80mm(Density:280-400kg/m3) Regular size:1200X1000X(10-80), 1200X600X(10-80) 1000X1000X(10-80), 900X600X10,600X300X10mm |
Working temperatures | 1050Ordinary Ceramic Fiber Board--950C 1260Standard Ceramic Fiber Board---1050C 1260High-purity Ceramic Fiber Board- --1100C 1400High Aluminum Ceramic Fiber Board---1200C 1450Zirconia Ceramic Fiber Board---1350C |
Characteristics | Non-brittle material, good elasticity Good sound insulation; Accurate sizes and good flatness Kiln construction: Hot surface refractories, heavy refractory back linings, expansion joints. Light industry: Industrial and household boiler combustion chamber lining; Petrochemical industry: as high-temperature furnace hot surface lining material; Craft glass: As craft glass or other deep-processed and molded products mold; |
Package | plastic bag inside, carton or woven bag outside, |
| Product Advantage | ||||||||||
1. We are the only enterprise which can produce the Ultra-thin board (3-10mm) and the large board (1200x2400mm)in China 2.Ceramic Fiber Board is made through automation control and continuous production process 3.The ceramic fiber board we provide enjoys whiter color, lower slag content, high compressive strength and high rupture strength. | ||||||||||
