Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
| Packaging Detail: | wooden ,standard package |
| Delivery Detail: | 120days |

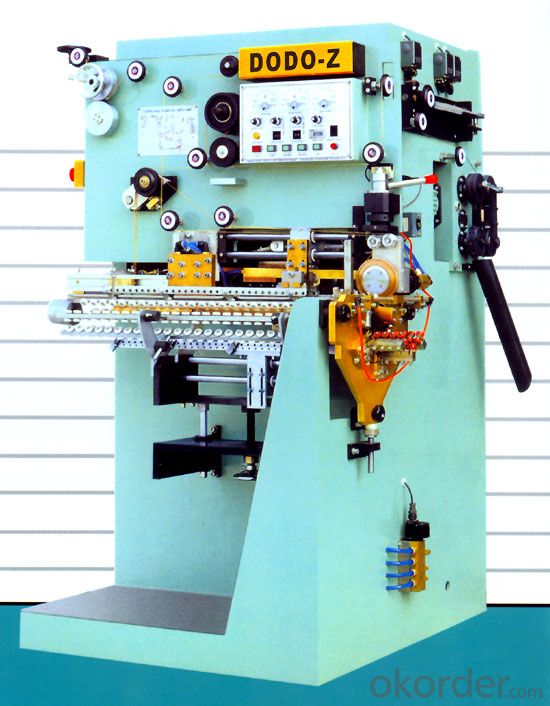

1.High speed can body welder for aerosol can.
2.Weling speed:48m/min(max)
3.Capacity:300cans/min
4.Can dia.:52mm-99mm
The main technical data
Model | FH18-90ZD |
Linear rate of welding | 2m-21/min |
Production capacity | 15~38cans/min |
Applicable can diameter | 220~300mm |
Applicable can height | 250~450mm |
Applicable material | Tinplate steel-based |
Material thickness | 0.25~0.42mm |
Seam welding landing | 0.4mm |
Seam point distance | 0.5~0.8mm |
Copper wire diameter | 1.5mm 1.7mm |
Cooling water | Temperature 12~18°C |
Pressure:0.5Mpa | |
Discharge 10L/min | |
Air consumption | 0.5Mpa~0.7Mpa |
Discharge 400L/min | |
Power | 380V±5% 50Hz |
Total power | 63KVA |
Packed Dimension | 2300x1800x2000mm |
Packed Weight. | 2500kg |
