Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1 pc
Supply Capability:-
Quick Details of Full Welded Ball Valve
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | High Pressure, |
Power: | Hydraulic | Material: | Stainless Steel | Temperature of Media: | Normal |
Media: | Water, Oil, Gas | Port Size: | DN150-DN1200 | Place of Origin: | China |
Model Number: | 6"-48" | Brand Name: | LQ | TEST: | API 6D |
Packaging & Delivery of Full Welded Ball Valve
Packaging Detail: | STANDARD PACKING FOR EXPORT |
Delivery Detail: | 15-30 |
Specifications of Full Welded Ball Valve

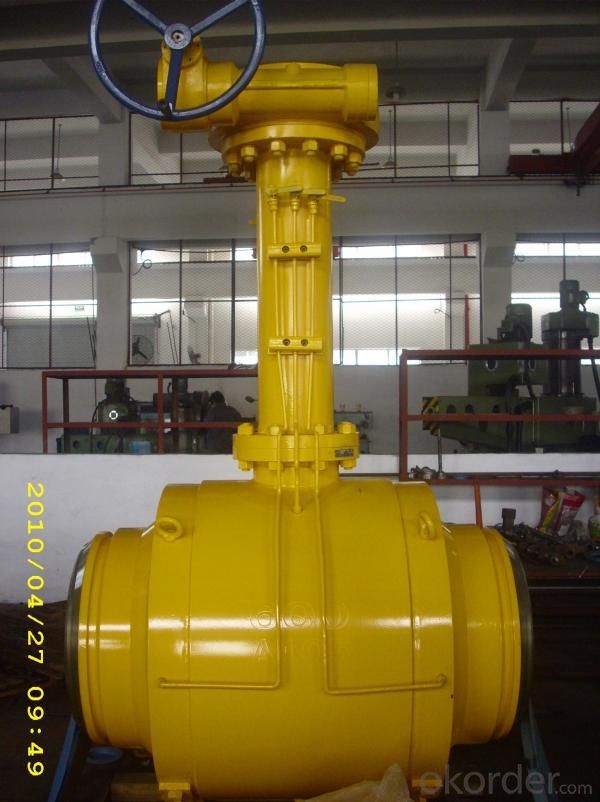

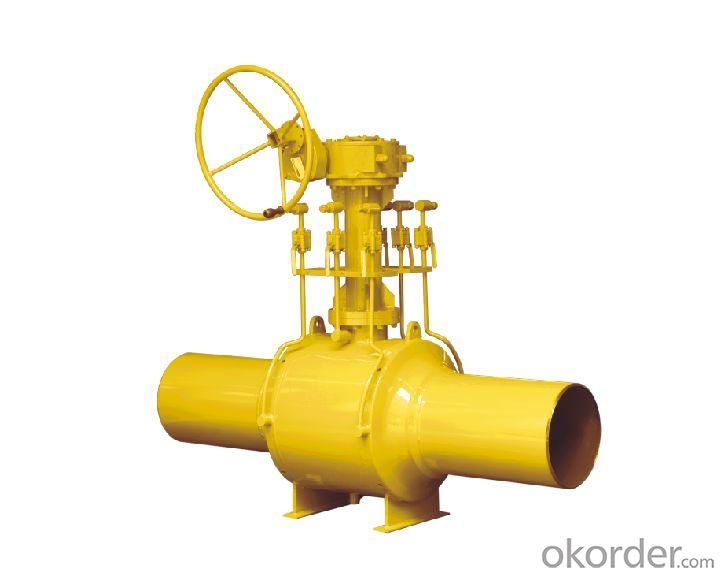

Full welded ball valve,
API 6D, ASME;
Size: 6" -48",
ANSI 150LB -1500LB
Full welded underground ball valve
ANSI B 16.34, API607 and API Q1
Usage of Full Welded Ball Valve
1) Product type: full welded, RTJ/RF flanged,
2) Size range: 6"-48"
3) Pressure classes:
a. ANSI class 150: DN150 -1000 PN20 (NPS6" - 40"),
b. ANSI class 300: DN150-1000 PN50 (NPS6"-40"),
c. ANSI class 400: DN150-1000 PN64 (6"-40"),
d. ANSI class 600: DN150-1200 PN100 (6"-48"),
e. ANSI class 900: DN150-600 PN150 (6"~24"),
