Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

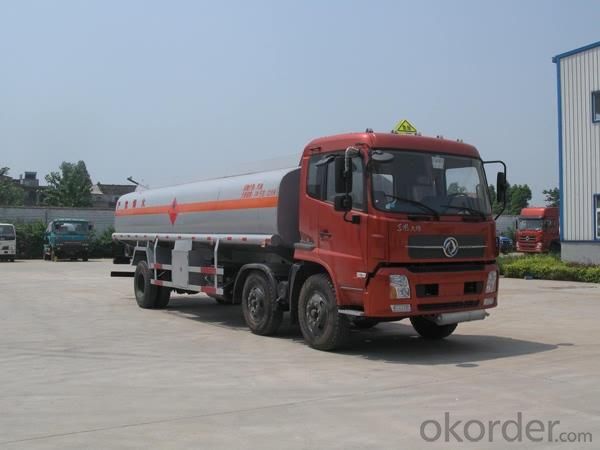

Fuel Tanker T5g 22000L Oil Truck Tank Truck
Model NO.:
Transmission Type:Manual
Power:Diesel
Load Capacity:41-50t
Emission Standard:Euro 2
Drive Wheel:6×4
Engine Capacity:4-6L
Seats:≤5
Horsepower:451-500hp
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Dumping Type:Bidirection Dumping Style
Condition:New
Maximum Speed(Km/H):110
Economical Speed(Km/H):85
Maximum Gradeability(%):45
Turning Diameter(M):14
Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia
Trademark:howo
Packing:Nude
Standard:CCC
Origin:China
HS Code:8704190000
Production Capacity:100000 Units/Year.
Condition: | New | Horsepower: | 251 - 350hp | Drive Wheel: | 6x4 |
Transmission Type: | Manual | Emission Standard: | Euro 2 | Engine Capacity: | > 8L |
Fuel Type: | Diesel | Brand Name: | HOWO | Size: | 6730x2496x3035/3335/3535/3830 |
Gross Vehicle Weight: | 8100 |
Weight Parameter | Complete Vehicle Kerb Mass(kg) | 8100 | |
Maximum authorized total mass (kg) | 25000 | ||
Maximum authorized towed total mass(kg) | 40000 | ||
Dimension Parameter | External Dimensions(mm) | Length | 6730 |
Width | 2496 | ||
Height | 3035,3335,3535,3830 | ||
wheelbase(mm) | 3200+1400 | ||
Minimum Ground Clearance(mm) | 235 | ||
Performance Parameter | Maximum Speed(km/h) | 110 | |
Economical Speed(km/h) | 85 | ||
Maximum Gradeability(%) | 45 | ||
Turning diameter(m) | 14 | ||
Recommended Configuration | Engine | Engine Type | MC07.34-30 |
Rated power(kW)/Rev(r/min) | 248/2300 | ||
Maximum Torque(N*m)/Rev(r/min) | 1250/1200-1800 | ||
Transmission | HW10 | ||
Clutch(mm) | 430 | ||
Rear Axle | Type | MCY13 | |
Speed Ratio | 4.11 | ||
Fuel Tank(L) | 400 | ||
Chassis Cross-section(mm) | F965 B762×270×85×8 | ||
Suspension(Front,Back) | 3/4 | ||
Tyre | 295/80R22.5 | ||
