Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

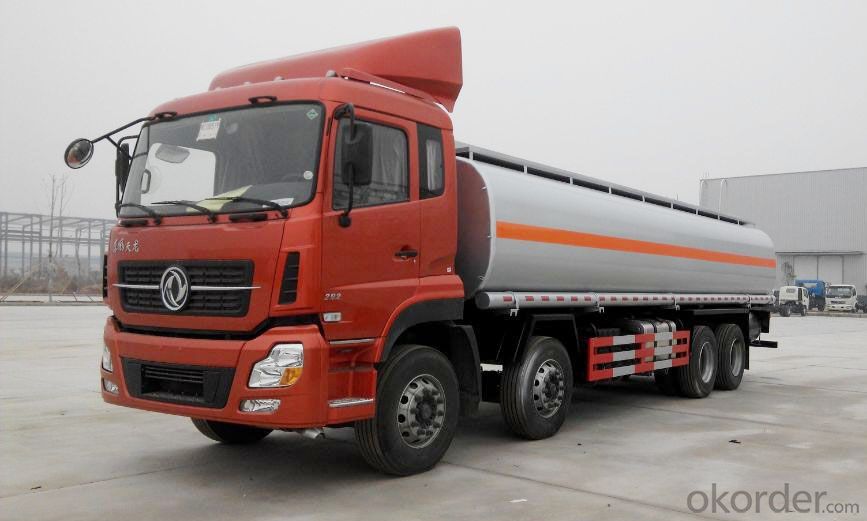

Fuel Tank Trucks 8X4 350p Heavy Oil Storage Tank
Model NO.:CQ1315HTGG466V
Transmission Type:Manual
Power:Diesel
Load Capacity:31-40t
Emission Standard:Euro 2
Tank Volume:＞30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Solid Tire
Tire Certification:ECE, GCC, ISO, DOT
Tire Design:Tubeless
Condition:New
Engine:266HP/290HP/336HP/350HP/371HP
Tire:11r22.5/12r22.5/11.00r20/12.00r20
Cabin:with One Sleeper or Without Sleeper
Volume of Tank:25000L, 30000L, 35, 000L, 40
Air Conditioner:A/C or Without A/C
Driving Type:LHD or Rhd
Driving Axle:4X2/6X4/8X4
No. of Compartment:No. of 1/2/3/4/5/6 Compartments
Other Key Parts:Discharged Pump/ Discharged Valve/API Manhole
Pto:with 50# or 60# Pto
Export Markets:Global
Trademark:CLW
Packing:Waxed Before on Board
Standard:CCC, ISO14001
Origin:Hubei
HS Code:8705909990
Production Capacity:1500 Unit/Month
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally
| Technical Specification | |||||||
| Overall dimensions(L× W× H) | 11990× 2500× 3750 ( mm ) | ||||||
| Emission standard | Euro3 | ||||||
| Cab | Single row, 3 passengers allowed in cab | ||||||
| G. V. W. | 31000(kg) | ||||||
| Curb weight | 3300(kg) | ||||||
| Loading capacity | 3065(kg) | ||||||
| Fuel type | Diesel | ||||||
| Engine & Chassis Specification | |||||||
| Chassis | CQ1315HTGG466V | ||||||
| Engine | SC10E350Q4 | ||||||
| Max. speed | 95(km/h) | ||||||
| Power | 350(hp) | ||||||
| Displacement | 10420(ml) | ||||||
| Axle base | 1800+4265+1350(mm) | ||||||
| F/R wheel-base | 2006, 2006/1850, 1850(mm) | ||||||
| F/R overhang | 1435/2780(mm) | ||||||
| Axle load | 6500/6500/18000(kg) | ||||||
| Tyre | Standard equipped 11.00-20 18PRranhou tyre | ||||||
| Tank Specification | |||||||
| Tank dimensions | 9000× 2500× 1800(mm) | ||||||
| Tank volume | 25-30(cbm) | ||||||
| Tank material | Crabon steel Q235A, optional stainless steel & aluminium alloy | ||||||
| Tank thickness | 5(mm), optional 6(mm) | ||||||
| Optional Choice | |||||||
| Accessories | Choosing Range | ||||||
| Standard equipments | Single gravity flowing wareroom, no pump, two aluminium alloy openings, warerooms, liquid level indicator, pump, watch, spool, measurement gun, manhole, AIP valve and oil-gas recovery systerm and so on are optional. | ||||||
| Tank material | Standard equipped the carbon steel as the tank material, and the carbon steel can be replaced by stainless steel or aluminum alloy or colored steel. | ||||||
