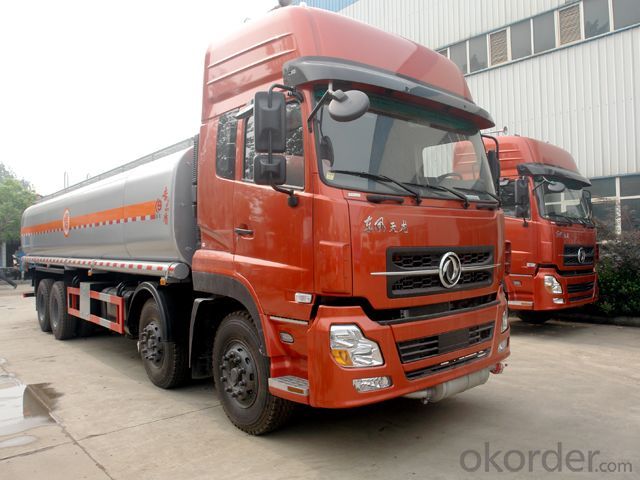

Fuel Tank Truck (ZZ1257N4341W) 20m3
Model NO.:ZZ1257N4341W
Transmission Type:Manual
Power:Diesel
Load Capacity:15T
Emission Standard:Euro 2
Drive Wheel:4WD
Seats:≤5
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Condition:New
Flow Rate:60m3/H
Volume of Tank:20m3
Truck Type:Tanker Truck
Type:Tank Truck
Export Markets:Global
Trademark:SINOTRUK
Packing:Nude
Origin:Shandong, China
Production Capacity:20000 PCS/Year
1. Changable fuel tank truck;
2. Good quantity of oil pump, high flow;
3. SINOTRUK chassis, well after-service in the world
| Model | ZZ1257N4341W | Gross Vehicle Weight | 25000kg | ||
| Engine | Brand SINOTRUK | Dead Weight | 12550kg | ||
| WD615.69 Euro II | Tyres | 12.00R20 | |||
| Maximum Output | 336HP | Flow rate | 60 m3/h | ||
| Rated engine power (KW/r/min) | 247/2200 | Cab | HOWO 76 | ||
| Air-condition | |||||
| Transmission | HW15710 | Max driving speed | 75 km/h | ||
| Front Axle | HF7 | Max gradeability | 32% | ||
| Rear Axle | HW1697 | Min ground clearance | 298 mm | ||
| Steering | ZF8098 | Fuel consumption | 35 L/100km | ||
| Overall Dimension(mm) | 9500× 2500× 3200 | ||||
| Notes: The quotation is valid in 30 days. | |||||
