Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month
Fuel Tank Truck with Stainless Steel Full Trailer
Model NO.:CQ1254HTG434
Transmission Type:Manual
Power:Diesel
Load Capacity:41-50t
Emission Standard:Euro 3
Tank Volume:＜5000L
Drive Wheel:6×4
Seats:≤5
Horsepower:351-450hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ECE, GCC, ISO, DOT
Tire Design:Radial
Condition:New
Truck Type:Tanker Truck
Chassis:Cq1254htg434
Gross Vehicle Weight(Kg):25, 000
Overall Dimension(Mm):9, 640X2, 500X3, 201
Oil Tank(L):400L
Rated Weight(Kg):13730
Kerb Weight(Kg):11140
Color:Optional
Export Markets:Global
Trademark:GENLYON
Packing:Nude Packing
Standard:SGS
Origin:China
HS Code:8716311000
Production Capacity:50000 Units/Year
(A) Specifications:
Truck Type: TANKER TRUCK
Driving Type: 6X4
Vehicle Brand: SAIC-Iveco HONGYAN
Rated Loading Capacity: 41-50T
Chassis: CQ1254HTG434
Engine model: C9 380, 380 HP Euro 3
Max. Output: 380 HP
Drive Axle: Double Reduction, Hongyan punching welding drive axle
Tires: 12.00R20 (with one spare tire)
Wheelbase: 4325+1350mm
Cab: Genlyon cab, Flat-roof strengthened, Left-Hand drive

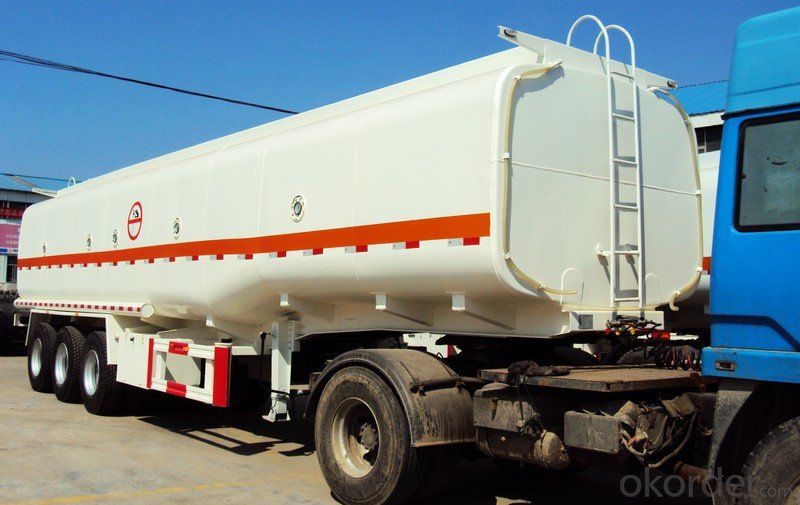

| PIC IS ONLY FOR REFERENCE | ||||||
| NO. | SPECIFICATION | PARAMETER | NOTE | |||
| 1 | Chassis | CQ1254HTG434 | ||||
| 2 | Application | Tanker truck | ||||
| 3 | Drive | 6*4 | ||||
| 4 | Rated Weight | 13,730 | ||||
| 5 | Kerb Weight(kg) | 11,140 | ||||
| 6 | Gross Vehicle Weight(kg) | 25,000 | ||||
| 7 | Type | Genlyon cab,Flat-roof strengthed, Left-Hand drive | ||||
| 8 | Equipment | Air-conditioner, One Sleeper,Large carbin | ||||
| 9 | Overall Dimension(mm) | 9,640x2,500x3,201 | ||||
| 10 | Wheelbase(mm) | 4325+1350 | ||||
| 11 | Model | C9 380 | ||||
| 12 | Engine Output (kw(HP)) | (280)380HP | ||||
| 13 | Displacement(L) | 8.709 | ||||
| 14 | Emission STD | EURO3 | ||||
| 15 | Drive Axle | Double Reduction, Hongyan punching welding drive axle | ||||
| 16 | Frame | 865/280 8+5 | ||||
| 17 | Tyre | 12.00R20 | ||||
| 18 | Oil Tank(L) | 400L | ||||
| 19 | Tank Volume (m3) | 21 | ||||
| 25m3 full trailer tanker specs | ||||||
| 1 | Tank Volume (m3) | 25 | ||||
| 3 | Axle | 13 Ton x3, FUWA axle | ||||
| 4 | Tire | 12.00R20 | ||||
| 5 | Leaf spring | 10 pieces | ||||
| 6 | tool box | 1.2M*1 | ||||
