Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

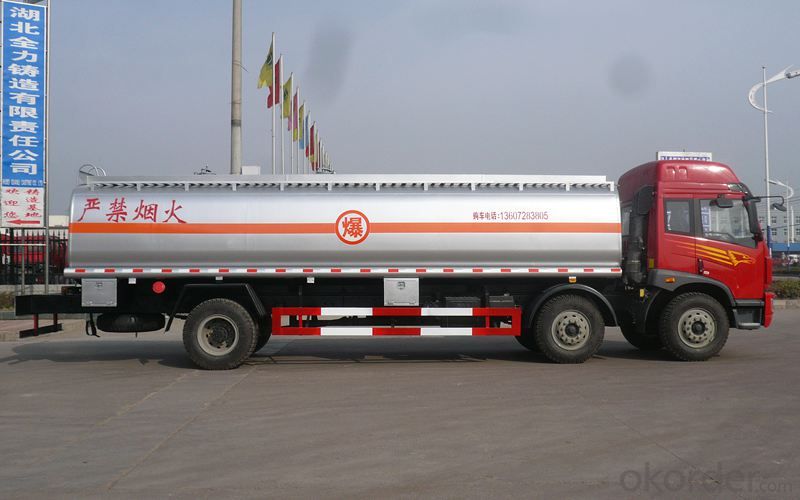

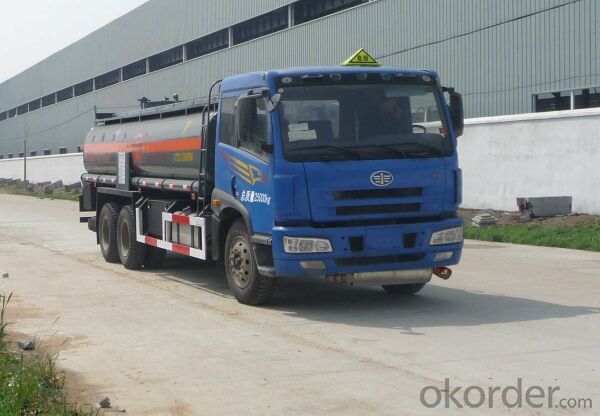

Fuel Tank Truck (QDZ5250GJYZH)Hot Sale! 32 Tons 8X4
Model NO.:QDZ5250GJYZH
Transmission Type:Manual
Power:Diesel
Load Capacity:25T
Emission Standard:Euro 2
Drive Wheel:4WD
Seats:≤5
Tire Type:Solid Tire
Tire Certification:ISO
Tire Design:Radial
Condition:New
Truck Type:Tanker Truck
Type:Fuel Tank Truck
Export Markets:Global
Trademark:Sintruk
Packing:Packed in Nude
Origin:China
Production Capacity:20000 PCS/Year
Front axle: Steyr front axle
Rear axle: Steyr strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
Tyre: 12.00-20 (rim: 8.0-20)
No of tyre: 10+1
Max. Speed (km/h): 102
Max. Gradeability(%): 28
Kerb. Mass: 11000 kg
Total mass: 25000kg
Wheel base (mm): 4325+1350
Fuel tank(L): 400 Aluminium Alloy Tank
Front overhang (mm): 1500
Rear overhang (mm): 2600
Front track (mm): 1958
Rear track (mm): 1830
Approach angle: 16 degree
Departure angle: 15 degree
Dimension (mm): 9800X2480X3210
| Model | ZZ1257M4341W/M0WA | Gross Vehicle Weight | 24800kg | ||
| Engine | Brand SINOTRUK | Kerb Weight | 14350kg | ||
| WD615.87 | Tyres | 12.00-20 | |||
| Maximum Output | 290HP | Cab | HW76(air-condition) | ||
| Rated engine power (KW/r/min) | 213/2200 | Maximum Speed(Km/h) | 78 | ||
| Transmission | HW15710 | Agitating capacity M3 | 20 | ||
| Front Axle | HF7(Max.loading:7000kg) | Tank Material | Carbon Steel | ||
| Rear Axle | HW1697(Max.loading:16000kg) | Minimum turning radius | 9m | ||
| Steering | ZF8098 | Climbing capacity | 46% | ||
| Overall Dimension(mm) | 9500*2496*3200 | ||||
