Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

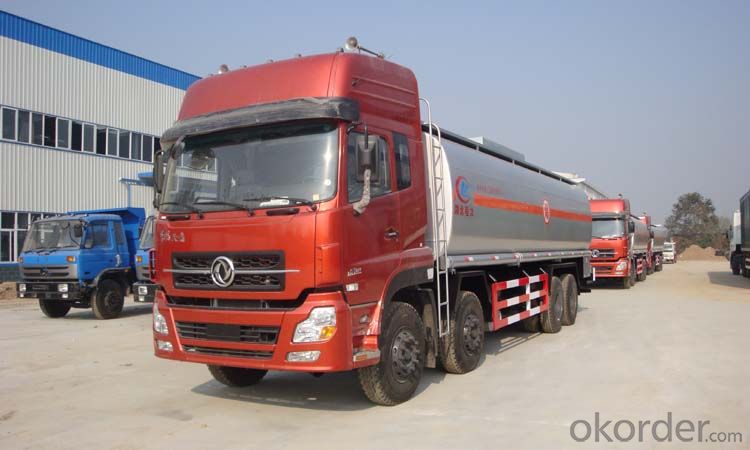

Fuel Tank Truck Heavy Duty 8X4
Model NO.:CIMC1257N4641W
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 3
Tank Volume:15001-30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Condition:New
Driving Type:LHD (Rhd Is Option)
Engine Model:Wd615.96,Euro II
Transmission:Hw19710
Tyre:12.00r20(Radial)
Wheel Base (Mm):1800+4600+1350
Front/Rear Axle Load:Hf9t/Hc16t
Overall Dimension of Truck:11984*2496*3950(Mm)
Steering:Zf8098
Axles No.:4
Cabin:HOWO76 One Bed,Air-Condition
Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Trademark:CIMC
Packing:Nude Packing
Standard:ISO/TS16949, DOT, CCC, ISO, SGS
Origin:China
HS Code:8705909990
Production Capacity:1000PCS/Month
Model: ZZ1317N4661W
Driving type:8*4
Kerb Weight: 25000kg
Gross Vehicle Weight: 12800kg
Engine:WD615.96,EURO II
Maximum Output: 375HP
Rated engine power: 277(KW/r/min)
Wheelbase:1800+4600+1350(mm)
Transmission: HW19710
Steering: ZF8098
Tyres: 12.00R20(Radial)
Front Axle: HF9
Rear Axle: HC16 Ratio:4.8
Maximum Speed: 85 km/h
Drum volume:30M3
Pump Model: 80QSB-60/90
Cab: HOWO76 ONE BED,Air-condition
| Information list | ||||
| Produce name | CLW | |||
| Products model | CLW5250GYY3 fuel tanker truck | |||
| Total mass | 25000 | Vehicle size | 10900 × 2500 ×3380,3700 | |
| Rated mass | 12000 | Tanker volume | 20CBM | |
| Empty truck weigh | 12805 | Tanker size | 8100 × 2250 × 1420mm | |
| A/D angle | 20/12 | F/R hang | 1460/2790 | |
| Axles quantity | 3 | Wheelbase | 5350+1300,5700+1300 | |
| Wheel loading | 7000/18000(double axles) | Max speed | 85 | |
| Chassis information | ||||
| Chassis model | DFL1250A9 | Chassis type | Oil chassis | |
| Tyre quantity | 10 | Tyre size | 10.00-20,10.00R20, 11.00-20,11.00R20 | |
| Fuel type | 8/9 | Front track | 1986 | |
| Standard | Diesel | Rear track | 1860/1860 | |
| Engine model | C26033,260HP,water cooled, inline ,4 stroke,6 cylinder | |||
| Tanker information | ||||
| Tanker material | Q235 carbon steel | Tanker thick | 4mm | |
| Tanker volum | 20000L =5000gallon | Tanker color | option | |
| Fuel pump | CLW fuel pump | Dispenser (fuel meter) | Control by computer, can show the money , the fuel volume | |
| Tank Description | 1. Shape : Oval 2. Material: carbon steel ,Q235R 3.4 compartment 4:bottom discharge | |||
| Standard Equipment | Equipped with gravity valve , tool box , fuel pipes ,climb ladder ,man holes. | |||
| Optional Equipment | Fiscal refueling machine, additional tool box, fuel pump and flow meter. Can be separated into several rooms to carry different fuels. | |||
| FOB shanghai price | $41500.00USD | |||
| Delivery time | 10days production time | |||
