Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

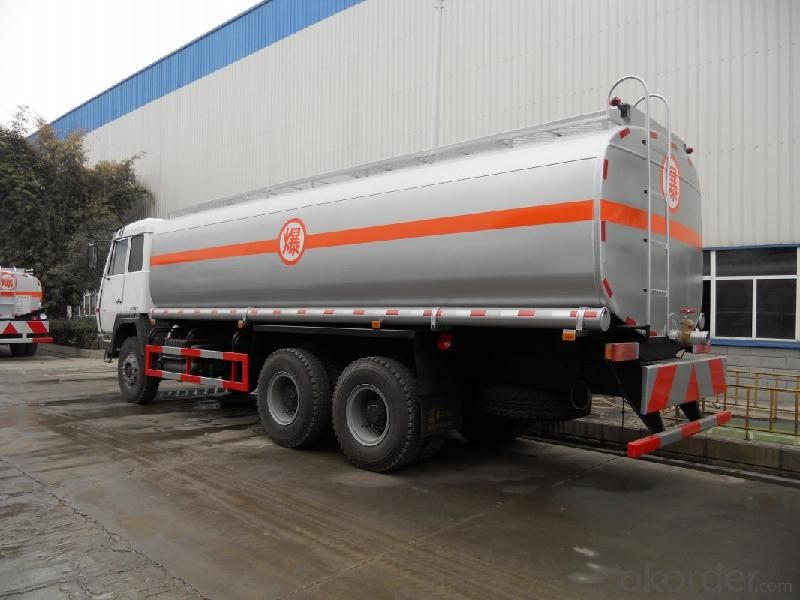

Fuel Tank Truck Fueling Truck Steel Semi Trailer (25-60M3)
Model NO.:ZZ1164
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 2
Tank Volume:10001-15000L
Drive Wheel:4×2
Seats:≤5
Horsepower:351-450hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ECE
Tire Design:Tubeless
Condition:New
Wheel:4*2
Export Markets:Global
Trademark:Hua-Win
Packing:Nude
Standard:ISO9001, CCC
Origin:China
HS Code:870590990
Production Capacity:10, 000 units/year
tank capacity:13000L
Hourse power:251-350HP
over demesions:745
Package: 1 units into 1x20ft container, 2 units into 1x40ft container.
Fuel tank truck specification | |
| Truck model | ZZ1164G4215 |
| Truck brand | lvye |
| Driving type | Left hand drive |
| Over demesions(L*W*H) | 7450×2490×3045mm |
| Tank demesions (L*W*H) | 5000×2250×1530 |
| Tank capacity(L) | 13 |
| Approaching angle/Departure angle(°) | 18/14(°) |
| F/R track base(mm) | 1250/2000(mm) |
| Curb weight(kg) | 7200 |
| Loading Weight(KG) | 10000 |
| Max speed(km/h | 90 |
| Wheel base (mm) | 4500 |
Gear oil pump | |
| Model | 76YCB-40(F) |
| flux m3/h | 40 |
| In /out cabiber mm | 76 |
| RPM r/min | 960 |
| Remark | oil pump modle with F, represent relief valve, used for oil tanker truck with oil gun. |
| Engine(Steyr technology, made in China) | |
| Model | WD615,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel |
| Horse Power, max(kw/rpm) | 251-350HP |
| Emission | EURO II |
| Fuel tanker capacity (L) | 300 |
Transmission | |
| Model | HW13710CL,10 forwards and 2 reverse |
| Brake system | |
| Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | |
| Model | ZF8098 |
| Other specification | |
| Front axle | HF7 |
| Rear axle | HC16 |
| Color | Optional |
| Tire | 11.00-20 / 12.00-20/ 295/80R22.5 |
| Tire quantity | |
| Electrical system | |
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | |
| HOWO76 cab with one sleeper and air conditioner | |
