Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

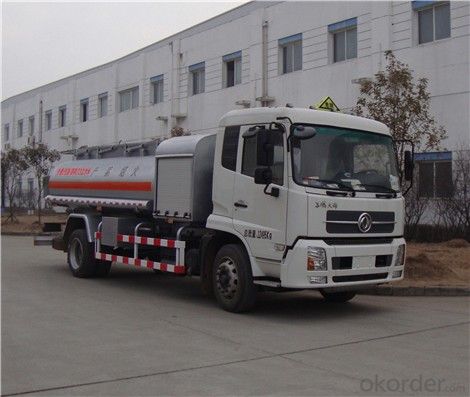

Fuel Tank Truck Export Fuel Truck 20000 Liters
Model NO.:CIMC1317N3867C
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 3
Tank Volume:15001-30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Condition:New
Driving Type:LHD (Rhd Is Option)
Engine Model:Wd615.96,Euro II
Transmission:Hw19710
Tyre:12.00r20(Radial)
Wheel Base (Mm):1800+4600+1350
Front/Rear Axle Load:Hf9t/Hc16t
Overall Dimension of Truck:11984*2496*3950(Mm)
Steering:Zf8098
Axles No.:4
Cabin:HOWO76 One Bed,Air-Condition
Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Trademark:CIMC
Packing:Nude Packing
Standard:ISO/TS16949, DOT, CCC, ISO, SGS
Origin:China
HS Code:8705909990
Production Capacity:1000PCS/Month
Overall Dimension: 11984×2496×3950(mm)
Model: ZZ1317N4661W
Driving type:8*4
Kerb Weight: 25000kg
Gross Vehicle Weight: 12800kg
Engine:WD615.96,EURO II
Maximum Output: 375HP
Rated engine power: 277(KW/r/min)
Wheelbase:1800+4600+1350(mm)
Transmission: HW19710
Steering: ZF8098
Tyres: 12.00R20(Radial)
Front Axle: HF9
Rear Axle: HC16 Ratio:4.8
Maximum Speed: 85 km/h
Drum volume:30M3
Pump Model: 80QSB-60/90
Cab: HOWO76 ONE BED,Air-condition
| Item | Unit | Parameter |
| Vehicle Name | Qixing | |
| Chassis model | BJ5163GLFFG-S | |
| Overall dimensions | mm | 8350×2480×3250 |
| Factual cubage | m³ | 13cbm |
| Fuel Density | kg/ m³ | 700 |
| GVW | kg | Appro*16000 |
| Rated loading capacity | Appro*8680 | |
| Mass in working order | Appro*7125 | |
| Wheel base | mm | 5000 |
| F/R track base | 1365/2285 | |
| Approach/departure angle | . | 18/10 |
| Max speed | km/h | 79 |
| Tire specification | 9.00R20 16PR,10.00R20 18PR | |
| Engine type | 10.00R20 18PR | |
| transmission | 9speed with over drive | |
| Equipment | Meterial:Q235 carbon steel.can choose flow meter, tankerpiston and bobbin disk Tank can be separated to several unattached small tanks to fill different fuels | |
| Production cycle | 20-25 days | |
| Warranty | 12 month,from the date of supply | |
| Payment | pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.
| |
