Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

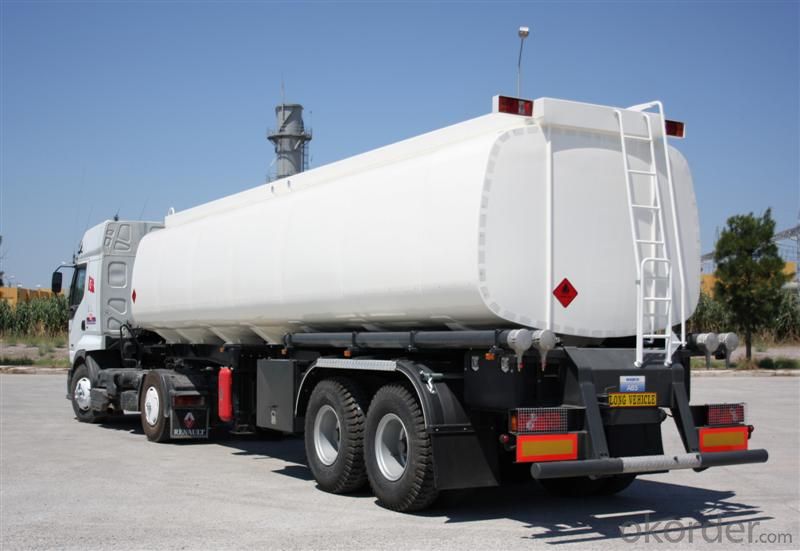

Fuel Tank Truck Df Q235 Carbon Steel Semi Trailer (25-60M3)
Model NO.:CLW5512
Transmission Type:Manual
Power:Diesel
Load Capacity:11-20t
Emission Standard:Euro 4
Tank Volume:10001-15000L
Drive Wheel:4×2
Seats:≤5
Horsepower:150-250hp
Engine Capacity:4-6L
Storage:Oil
Tire Type:Solid Tire
Tire Certification:ECE, GCC, ISO, DOT
Tire Design:Tubeless
Condition:New
Loading Capacity(Kg):9865
Tanker Capacity(Cbm):15
Max Speed(Km/H):75
Type of Fuel:Diesel
Number of Axles:2
Color:Red, Yellow, Camo, Any Color as Your Request
Brand:Dongfeng
Drive Mode:4X2
Price Term:FOB, CIF
Delivery Time:25 Days
Export Markets:Global
Trademark:CLW
Packing:Naked, Waxing and So on
Standard:ISO, CCC
Origin:Hubei. China
HS Code:8705909990
Production Capacity:800sets/Month
Description | DF Q235 Carbon Steel Fuel Tank Truck | ||
Drive Model | 4X2 | ||
Chassis | EQ1160 | ||
Number of axles | 2 | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9000×2490×3100 | |
Wheel base (mm) | 4950 | ||
Overhang (front/rear) (mm) | 1250/2800 | ||
Wheel track (front/rear) (mm) | 1940/1860 | ||
Approach/Departure angle(°) | 28/12 | ||
Weight in KGS | Curb Weight | 6125 | |
GVW. | 15990 | ||
Max. driving speed(km/h) | 75 | ||
Engine | Model | ISB190 40 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 190HP | ||
engine capacity(L) | 5900 | ||
Emission standard | Euro IV | ||
Gearbox | 6 forwards & 1 reverse | ||
Clutch | Reinforced diaphragm clutch | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 180 | ||
Tire | 10.00-20 tire , 6 + 1(spare) | ||
Brakes | dual circuit compressed air brake | ||
Tank | |||
Material | Q235A Carbon steel | ||
Medium | Oil ....... | ||
Loading Capacity (m³) | 14.5 | ||
Overall dimensions(mm) | 6300×2350×1450 | ||
The back of the protective | section size (mm) | 100×50×5 | |
ground height (mm) | 500 | ||
Thickness(mm) | 6 | ||
ABS model | 3631010-C2000 | ||
Equipment | 1. Tank can be separated to several unattached small tanks to fill different fuels 2. Tank material: carbon steel,stainless steel,FRP etc. optional 3. Tank shape: Roundness , quadrate , oval optional 4. Oil pump: self-priming pump,gear pump optional 5. Oil meter:single,double,Fiscal processor optional 6.Equipped with valves and pipes,a set of Fuel Dispenser 7.Equipped with a ladder on tank 8.Install with the motion of the satellite positioning function recorder |
