Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

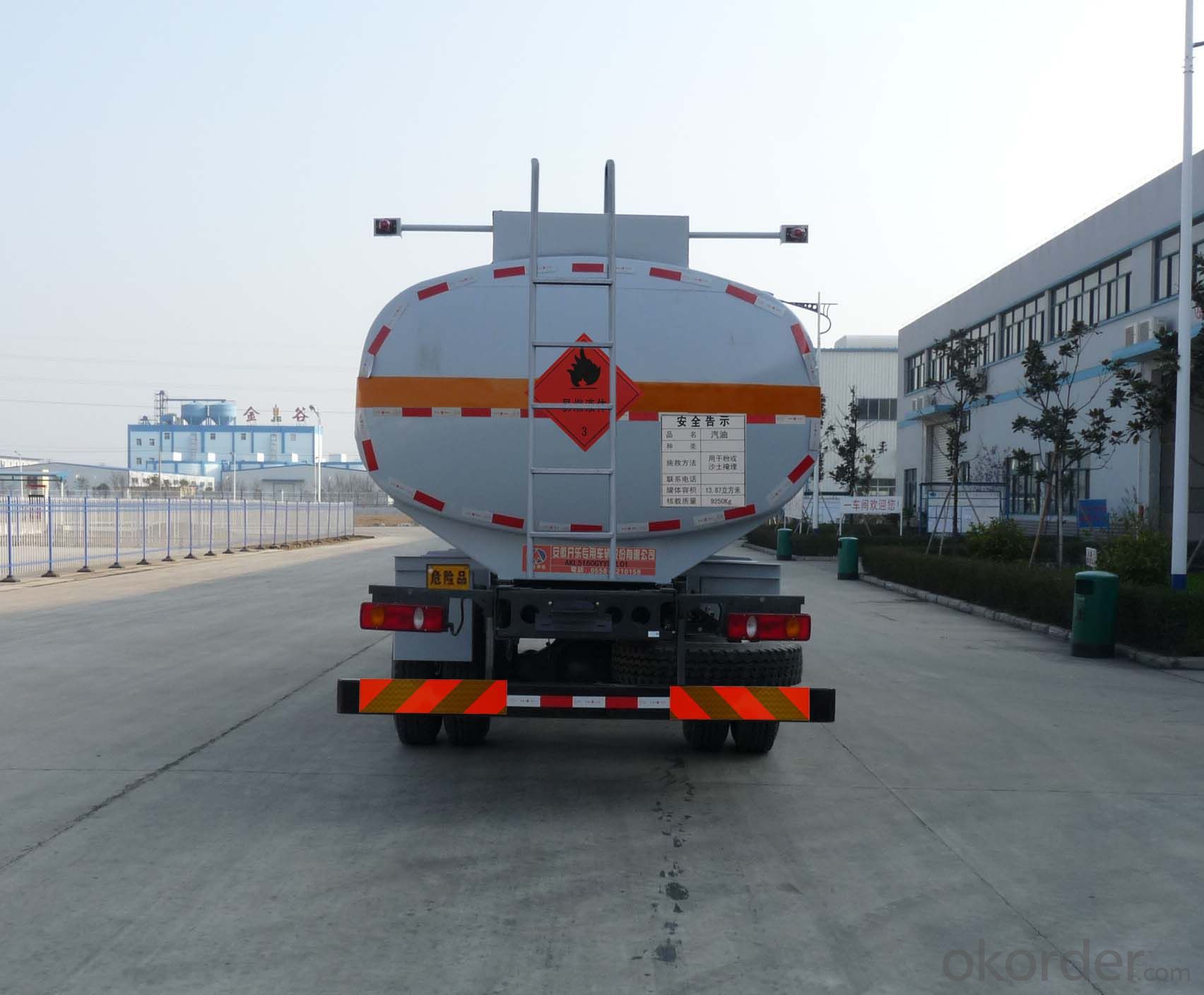

Fuel Tank Truck China Right Hand Drive 20cbm Capacity
Model NO.:CIMC1317N3867C
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 3
Tank Volume:15001-30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Condition:New
Driving Type:LHD (Rhd Is Option)
Engine Model:Wd615.96,Euro II
Transmission:Hw19710
Tyre:12.00r20(Radial)
Wheel Base (Mm):1800+4600+1350
Front/Rear Axle Load:Hf9t/Hc16t
Overall Dimension of Truck:11984*2496*3950(Mm)
Steering:Zf8098
Axles No.:4
Cabin:HOWO76 One Bed,Air-Condition
Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Trademark:CIMC
Packing:Nude Packing
Standard:ISO/TS16949, DOT, CCC, ISO, SGS
Origin:China
HS Code:8705909990
Production Capacity:1000PCS/Month
Overall Dimension: 11984×2496×3950(mm)
Model: ZZ1317N4661W
Driving type:8*4
Kerb Weight: 25000kg
Gross Vehicle Weight: 12800kg
Engine:WD615.96,EURO II
Maximum Output: 375HP
Rated engine power: 277(KW/r/min)
Wheelbase:1800+4600+1350(mm)
Transmission: HW19710
Steering: ZF8098
Tyres: 12.00R20(Radial)
Front Axle: HF9
Rear Axle: HC16 Ratio:4.8
Maximum Speed: 85 km/h
Drum volume:30M3
Pump Model: 80QSB-60/90
Cab: HOWO76 ONE BED,Air-condition
| Item | Description |
| product type | XSJ5080GYY |
| outside dimension (L×W×H) (mm) | 6200×1900×2550 |
| can body dimension (Length×long axis×short axis) (mm) | 1680×1110×3200 |
| chassis model | EQ1080SJ19DC |
| chassis producer | Dongfeng Automobile Co., LTD |
| wheel base (mm) | 3300 |
| engine model | YC4F90-30 produced by Yuchai Group Co., LTD |
| engine working mode | inline-4, pressurization, inter-cooling, electronic control, diesel engine |
| fuel type | diesel |
| rated power | 66Kw/(1300r/min) |
| max. torque | 1270N.m /(1200-1500r/min) |
| approach angle/departure angle (°) | 27/23 |
| automobile displacement (L) | 2.659 |
| max. speed | 95 |
| gear size/count | 6.50-16/6 |
| total weight (kg) | 8300 |
| curb weight (kg) | 3500 |
| rated loading weight (kg) | 4605 |
| can announcement volume (gasoline) (m³) | 4.38 |
| finished can volume (m³) | 4.38 |
| transport material | crude oil, gasoline, diesel, water |
