Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

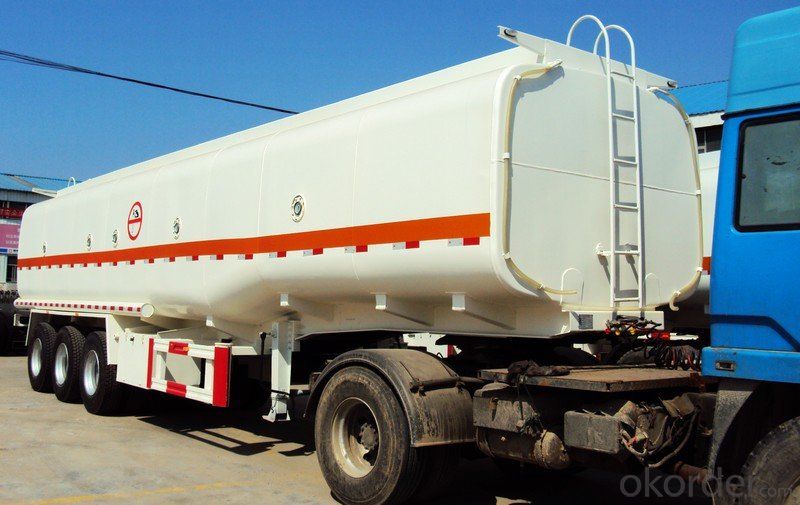

Fuel Tank Truck Axles for Oil Transportation
Model NO.:PLY9650GRY
Type:Semi Trailer
Load Capacity:50T
Certification:GCC, ISO9001, CCC, ISO/TS16949, SGS
Wheel Base:8000-9000mm
Tread:2240mm
Grade:Heavy Duty
Towing Pin Material:Carbon Steel
Impeller Type:Front Semi-open Type
Hook Type:Double
Universal Joint Type:Rigid Universal Joint
Brake Pad Material:Semimetal
Towing Pin Type:Mushroom Type
Towing Pin Diameter:50mm
Differential Gear Type:Anti-slip Type
Independent Suspension Type:Cross Arm Type
Connecting Type:Semi-trailer
Shape:Tank Trailer
Axle Number:3
Tire Number:12
Self-dumping:Self-dumping
ABS Anti-lock Braking System:ABS Anti-lock Braking System
Material:Steel
Condition:New
Color:by Clients′ Needs
Paint:Anti-Rust
Logo:by Clients′ Needs
Custom-Made:Available
Quality Standards:CCC ISO BV SGS
Place of Oringin:Qingdao Shandong
Trade Mark:Phillaya
Lead Time:15 Working Days
Guarantee Term:1 Year, Mainbeam Lifetime Promise
Production Ability:150 Units Per Month
Export Markets:Global
Trademark:Phillaya
Packing:Containers, Bulk Ship, Road
Standard:CCC ISO
Origin:Shandong, China
HS Code:871639900
Production Capacity:150units Per Month
Volume could be made as per your requirement;
Compartments also optional;
Special material for the head&end of tank;
Plenty of tools and spare parts in toolbox for you.
Tank Body | |
| Shape | Optional (Round or Square) |
| Dimension | 12500mm*2490mm*3990mm |
| Tare Weight | About 8000Kg-12800Kg |
| Total Volume(m3) | 44.6m3 |
| Tanker Body Material | 5mm or 6mm /Q235 carbon steel |
| End Plate | 5mm or 6mm/Q235 carbon steel |
| Manhole Cover | Carbon steel or Aluminum alloy API manhole cover ,500mm |
| Bottom Volume | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | 5 isolated compartments, Optional |
| Discharging Pipe | 4" rubber hose,2 pcs,6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis | |
| Main Beams | Welding design or special design I beam ,connected by bolts and nuts Q345 carbon steel material |
| Axle | 3 axles, BPW/FUWA/JINSHENG brand |
| Landing Gear | JOSTD200T or China brand 28T |
| King Pin | JOST 2.00 OR 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension(Germany or American type)/air suspension |
| Leaf spring | 90mm*130mm*10 or 100mm*12mm*12 |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| Tire | 12R22.5;315/ 80R22.5;11.00R20;12.00R20; |
| No. of the Tire | 12 |
| ABS | Optional |
| Painting | Complete Chassis and blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
| Accessories | One standard toolbox |
