Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

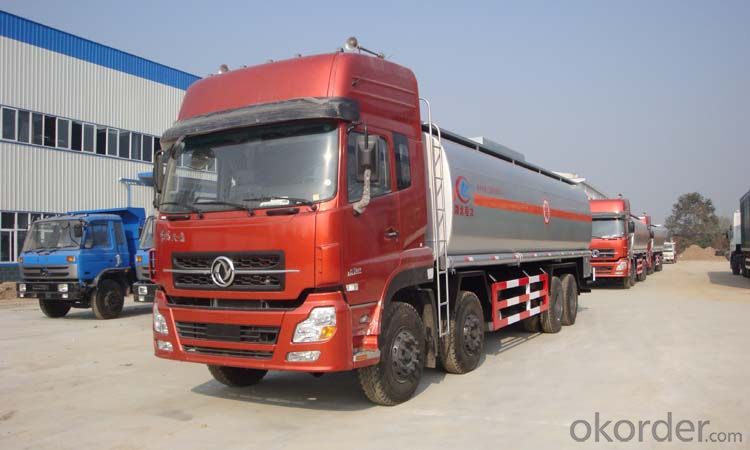

Fuel Tank Truck 8X4 M100 to Scania
Model NO.:CQ1315HTGG466V
Transmission Type:Manual
Power:Diesel
Load Capacity:31-40t
Emission Standard:Euro 3
Tank Volume:15001-30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ECE
Tire Design:Radial
Condition:New
Engine Power:340HP
Dimension:11765*2500*3750mm
Tank Dimension:7800*2350*1600mm
Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Trademark:Saic-IVECO Hongyan
Packing:Nude Packing
Standard:ISO9001
Origin:China Mainland
HS Code:870423009
Production Capacity:1000units/Month
Engine: Cursor 9 Engine (340HP)
Cabin: M100 Cabin
Fuel Tanker: 25000-30000L (optional)
We also provide:
Genlyon Water tank truck, Chemical liquid truck, Sewage suction truck, suction truck
Genlyon Garbage truck ,Genlyon Dump truck,
Genlyon Refrigerated truck,
Genlyon cargo truck,van truck,Genlyon tractor head,etc.
You can choose:
CURSOR9 engine.290hp,310hp,340hp,380hp.
C13 engine 390hp,430hp
or WEICHAI engine,etc.
Drive:4*2,6*2,6*4,8*4
Left hand drive,Right hand drive
Products Technical Specification | ||
| Brand-drive | Hongyan,Genlyon-8*4 | |
| Chassis Model | CQ1314HTG466V | |
| Fuel type | Diesel | |
| Cabin | Genlyon M100,With A/C,sleeper | |
| Fact Cubage (L) | 25000-30000 Optional | |
| Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 11765*2500*3750 |
| Tank dimensions | 7800*2350*1600 | |
| Wheel base | 1800+4600+1350 | |
| Front overhang | 1435 | |
| Rear overhang | 2580 | |
| Min. ground clearance | 540 | |
| Weight data (kg) | G.V.W | Approx 31000 |
| Curb weight (chassis) | Approx 12568 | |
| Max payload | Approx 18320 | |
| Whole vehicle main performance | Max. speed (km/h) | 90 |
| Max. slope of climb (%) | 35 | |
| Engine | Model | F2CE0681C*B052 |
| Maximum power | 250kw / 340hp | |
| Number of cylinders | 6 | |
| Displacement (L) | 8709 | |
| Engine Manufacturer | SAIC Fiat Powertrain Hongyan Co., Ltd. | |
| Gearbox | Number of gears | FAST,12JS160T 12 forward gears & 2 reverse |
| Drive axle | Model | 457 |
| Suspension | Front | 13- Leaf spring |
| Rear | 12-leaf spring | |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Air braking |
| Parking brake | Power Steering | |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 11.00R20 & 12+1 | |
| Up-parts Description | ||
| Tank dimensions(mm) | 7800*2350*1600 | |
| Standard configuration | Shape | Oval or Square |
| Material | Carbon steel Q235 | |
| Thickness | 6 mm | |
| 2-chamber,Pump,two artesian mouth, two pipelines,toolbox | ||
| Optional Configuration (√ : Standard Equipment 0: Optional ×: Not ) | ||
| A/C | √ | |
| Cabin,Half row | √ | |
| Power Steering | √ | |
| Radial tire | √ | |
| Color | 0 | |
| Refueling equipment | Flow meter,Fiscal refuelling machine | |
