Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

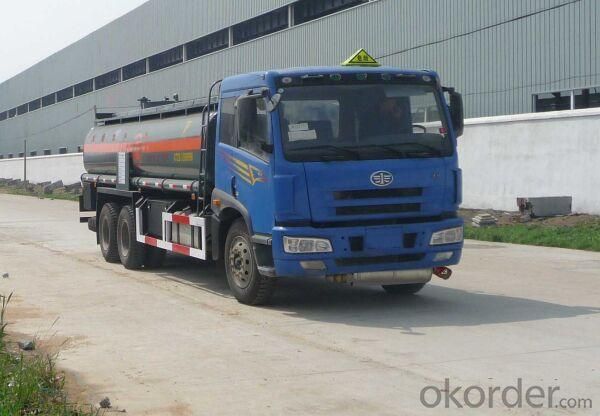

Fuel Tank Truck, 6X4 Fuel Truck
Model NO.:CLW 5160
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 3
Tank Volume:5001-10000L
Drive Wheel:8×4
Seats:≤5
Horsepower:＜150hp
Engine Capacity:＜4L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ECE, GCC, ISO, DOT
Tire Design:Bias
Condition:New
Description:Fuel Tank Truck
Volume of Tank:6000L, 8000L,10000L,12000L,15000L
Tire:11r22.5/12r22.5/11.00r20/12.00r20
Engine Model:Dongfeng, Deutz Ranault, Yc Sc Wd
Driving Axle:4X2/ 6X4/ 8X4
Chassis Brand:Dongfeng Sino HOWO Faw Foton JAC Forland Shaman Fo
Tank Material:Q235 Carbon Steel(According to Your Demand)
Exhaust/Power(Kw):90HP, 102HP, 120HP, 136HP, 137HP, 150HP, Ect
Material:Carton Steel Q235B, Stainless Steel 314, Alloy
Warranty:Maintenance and Free Technology for Life
Export Markets:Global
Trademark:CLW Brand
Packing:Naked Package and Waxed Before on Board
Standard:CCC, ISO14001
Origin:Hubei
HS Code:8705909990
Production Capacity:800 Unit/Month
| Produce name | 6000-8000l fuel oil tanker ,4x2 truck diesel container truck, 6x4 290hp fuel truck | ||
| Products model | Fuel tanker truck | Vechicle size | 5995X2000X2350 |
| Total mass | 9400 | Tanker volum | 8000L |
| Empty truck weight | 4215 | Tanker size | 5000X1750X1150 |
| A/D angle | 12/18 | F/R hang | 1032/1658 |
| Axles quantity | 2 | Wheelbase | 3800 |
| Wheel loading | 2480/4015 | Max speed | 80 |
| Chassis information | |||
| Chassis model | DFA1070SJ35D6 | Tyre size | 7.00-16 |
| Tyre quantity | 6 | Front track | 1506 |
| Fuel type | Diesel | Rear track | 1466 |
| Standard | GB3847-2005, GB17691-2005 Euro III | ||
| Engine model | 75KW/102HP | D28D10-4DA | |
| Tanker information | |||
| Tanker material | Q235 carbon steel | Tanker thick | 4mm or 5mm |
| Tanker volum | 8000L | Tanker color | Option |
| Fuel pump | CLW fule pump | Dispenser (fule meter) | Control by computer, can show the money, the fuel volum |
| Tank Description | 1. Shape: Oval | ||
| 2. Material: Carbon steel Q235 | |||
| 3. Thickness: 5mm | |||
| 4. Left hand drive or right hand drive | |||
| Pump | Model: 80YHCB-60 | ||
| Flow rate: 60m3/h | |||
| Working pressure: 0.6MPa | |||
| Rotation speed: 970R/min | |||
| Working Efficiency: 72% | |||
| Suction height: 7meters | |||
| Temprature: Blowe 80 °C | |||
| Standard Equipment | Equipped with gravity valve, tool box, fuel pipes, climb ladder, man holes. | ||
| Optional Equipment | Fiscal refueling machine, additional tool box, fuel pump and flow meter. | ||
| Can be separated into several rooms to carry different fuels. | |||
