Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

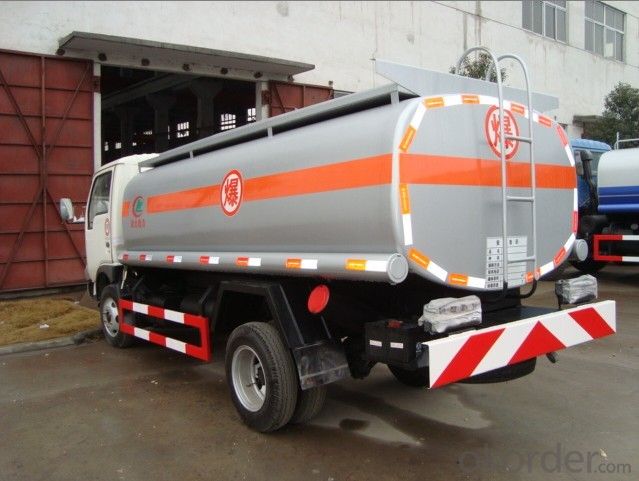

Fuel Tank Truck 6X4 Excellent Quality with Technology
Model NO.:NG80
Transmission Type:Manual
Power:Diesel
Load Capacity:31-40t
Emission Standard:Euro 2
Tank Volume:15001-30000L
Drive Wheel:6×4
Seats:6-9
Horsepower:351-450hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Solid Tire
Tire Certification:ECE, GCC, ISO, DOT
Tire Design:Radial
Condition:New
Capacity:20,000L
Body:with Opening& Downloading and Top Loading Valves &
Export Markets:Global
Trademark:BEIBEN/NORTH BENZ
Packing:Nude Packing
Standard:ISO9001
Origin:China Mainland
HS Code:870423009
Production Capacity:10, 000units/Year
Model Name | Beiben 6x4 fuel truck |
Driving Type | 6×4,left hand drive |
Weights | |
GVW(kg) | 25000 |
Rated payload weight(kg) | 13070 |
Curb weight(kg) | 11735 |
Dimensions | |
Wheelbase(mm) | 4500+1350 |
Overall Dimension(mm) | 9450×2500×3050 |
Box dimension (mm) | ×× |
Max speed(km/h) | 95 |
Engine | |
Engine model | WP10.270E30 |
Engine type | 4 stroke water-cooled,ECM electric control system ,high pressure common rail,E-Gas, |
No. of cylinders | straight-6 cylinders |
Displacement(L) | 7.14L |
Max. output (kw) | 199kw |
Drive Line | |
Transmission | 9JS119TA ,9 forwards,1 reverse gear,manual operation |
Steering | With power steering |
Brake system | Air brake |
Cab | |
Air container | Have |
Standard configuration | USB ,sound,electric windows,and so on |
Axle | |
Front axle | 7.5 tons |
Rear axle | 18 tons |
Tire specification | |
Tire specification | 11.00R20 standard tire,10 tires+1 spare tire |
