Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

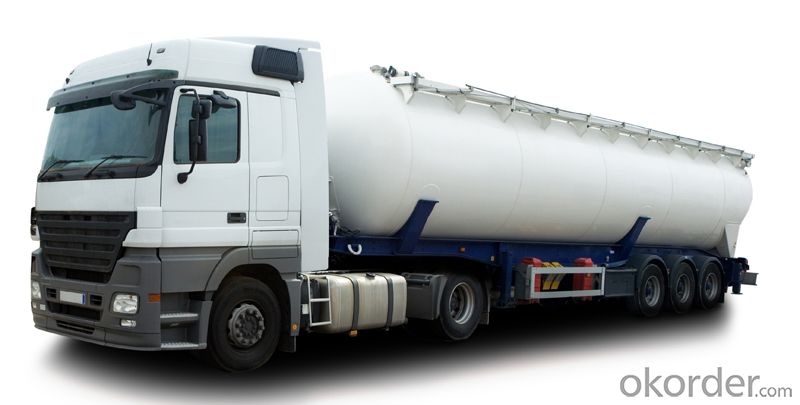

Fuel Tank Truck 6X4 266HP Diesel Oil Delivery
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 2
Tank Volume:15001-30000L
Drive Wheel:6×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Solid Tire
Tire Certification:ECE, GCC, ISO, DOT
Tire Design:Tubeless
Condition:New
Engine:160HP/190HP/210HP/266HP/290HP/336HP/371HP
Tire:11r22.5/12r22.5/11.00r20/12.00r20
Cabin:with One Sleeper or Without Sleeper
Volume of Tank:10000L-30000L
Air Conditioner:A/C or Without A/C
Driving Type:LHD or Rhd
Driving Axle:4X2/6X4/8X4
No. of Compartment:No. of 1/2/3/4/5/6 Compartments
Other Key Parts:Discharged Pump/ Discharged Valve/API Manhole
Pto:with 50# or 60# Pto
Export Markets:Global
Trademark:CLW
Packing:Waxed Before on Board
Standard:CCC, ISO14001, ADR
Origin:Hubei
HS Code:8705909990
Production Capacity:500 Unit/Month
| Item | Descriptions & Specifications | ||
| Main model | HOWO 6×4 Fuel Truck (LHD or RHD) | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.47 | ||
| Type | 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 266HP-371HP | ||
| Emission standard | Euro 2 or Euro 3 | ||
| Cabin | Model | HOWO 76 | |
| Type | Standard cabin, no sleeper, adjustable steering wheel, VDO panel, safe-belt with 2 locks | ||
| Transmission | HW19710,10 speeds, 2 Reverse; HW50 power takeoff | ||
| Front axle | HF9, drum brake | ||
| Rear driving axle | HC16 (ration:5.73) | ||
| Steering system | ZF8098 steering gear box, ZF power steering pump | ||
| Brake system | Driving brake: dual circuit compress air brake; parking brake: spring energy, compressed air operating at rear wheel; auxiliary: EVB+engine exhaust | ||
| Electric system | CAN bus control , voltage:24V; alternator: 1540W; starter: 7.5KW; battery: 12V/165Ah, 2pcs | ||
| Vehicle Dimensions | Overall size (L x W x H) | L8545xW2496xH3450mm | |
| Axle base | 3225+1350 mm | ||
| Number of axles | 3 | ||
| Weight in KGS | Gross vehicle weight | 25000kg | |
| Rated loading weight | 12030kg | ||
| Volume of Tank | Tank Internal Dimension | 6600×2300x 1500mm | |
| Steel thickness of Tank | Tank body: 5mm, End plate: 6 mm | ||
| Discharged valve | API Manhole | ||
| Max.driving speed | 75 km/h | ||
| Rim/Tyres | 11R22.5 or 12R22.5 tires | ||
| Fuel tank (L) | 300L | ||
| Color | white,red,yellow,green,blue | ||
