Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

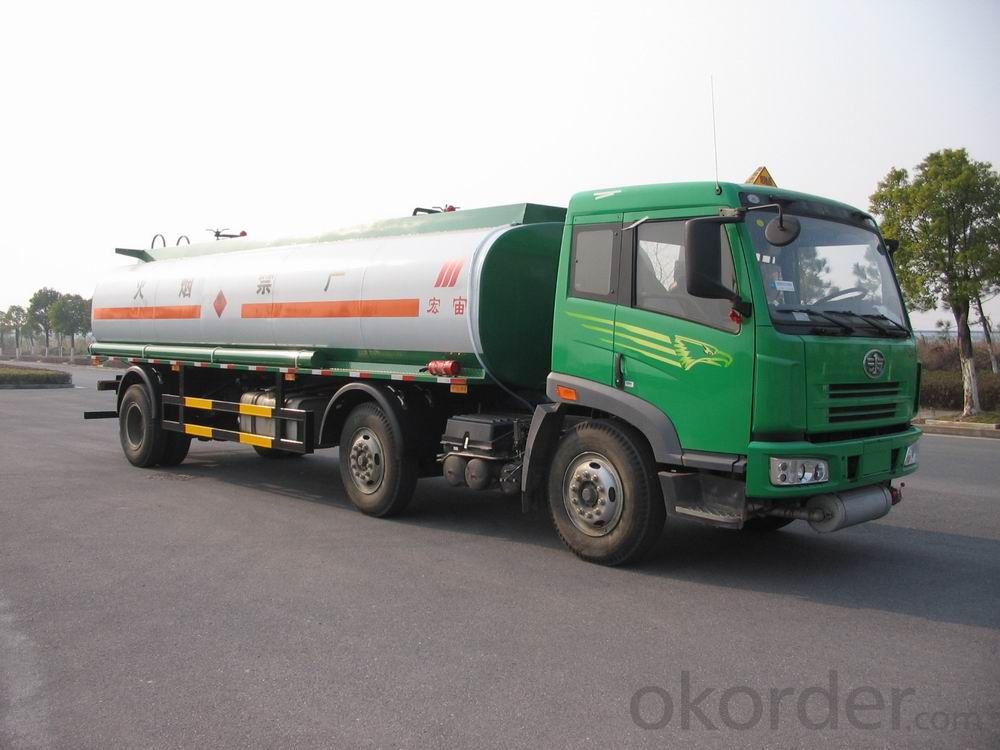

Fuel Tank Truck 6X4 25m3 Shanqi D'long 8*4
Model NO.:VL3257
Transmission Type:Manual
Power:Diesel
Load Capacity:25t
Emission Standard:Euro 3
Tank Volume:15001-30000L
Drive Wheel:6×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:4-6L
Storage:Oil
Tire Type:Solid Tire
Tire Certification:ISO
Tire Design:Radial
Condition:New
Shacman Fuel Tank Truck:White
Truck Type:Tanker Truck
Type:Tanker Truck
Tire:10.00-20
Driving:6X4, LHD or Rhd
Export Markets:Global
Trademark:Veldlion
Packing:Nude, Wax Polishing
Standard:New
Origin:China
Production Capacity:200 Units/Month
| Chassis Parameters | |||||
| Chassis Model | SX1255UM434 | Total Mass(kg) | 25000 | ||
| Curb Weight(kg) | 12100 | Rated Quality(kg) | 12770 | ||
| Dimensions(mm) | 9900X2495X3121 | Maximum Speed | 92 | ||
| Number Of Axes | 3 | Wheelbase | 4325+1350 | ||
| Axle Load | 7000/18000( And dual-shaft ) | Number Of Spring | 9/12,10/12,4/12 | ||
| Number Of Tires | 10 | Tire Specifications | 11.00-20,11.00R20,12.00-20,12.00R20 | ||
| Front Track | 1939,2036 | Rear Track | 1800/1800,1860 | ||
| Type Of Fuel | Diesel | Identification Code | |||
| Front / Rear Overhang | 1576/2649 | Approach/Departure Angle( ° ) | 28/14 | ||
| Compartment Dimension(mm) | XX | The Total Mass Of Trailer(kg) | |||
| Emission Standards | GB3847-2005,GB17691-2005 CN Standard 3 | ||||
| Engine Parameters | |||||
| Model | Power(kw) | Displacement(ml) | Manufacturer | ||
| WP10.270N WP10.300N WP10.270 WP10.290 WP10.270E32 WP10.290E32 WP10.310E32 | 199 221 199 213 199 213 228 | 9726 9726 9726 9726 9726 9726 9726 | |||
| Other | |||||
| Other parameters | Effective tank volume: 19.15 m3 Tank dimensions(mm): 6850 × 2450 × 1480 Protective equipment Material: Q235A Connection: welded connection | ||||
| Product Price | Should be configured with different vehicles and different coat materials, we recommend that you contact us. | ||||
