Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

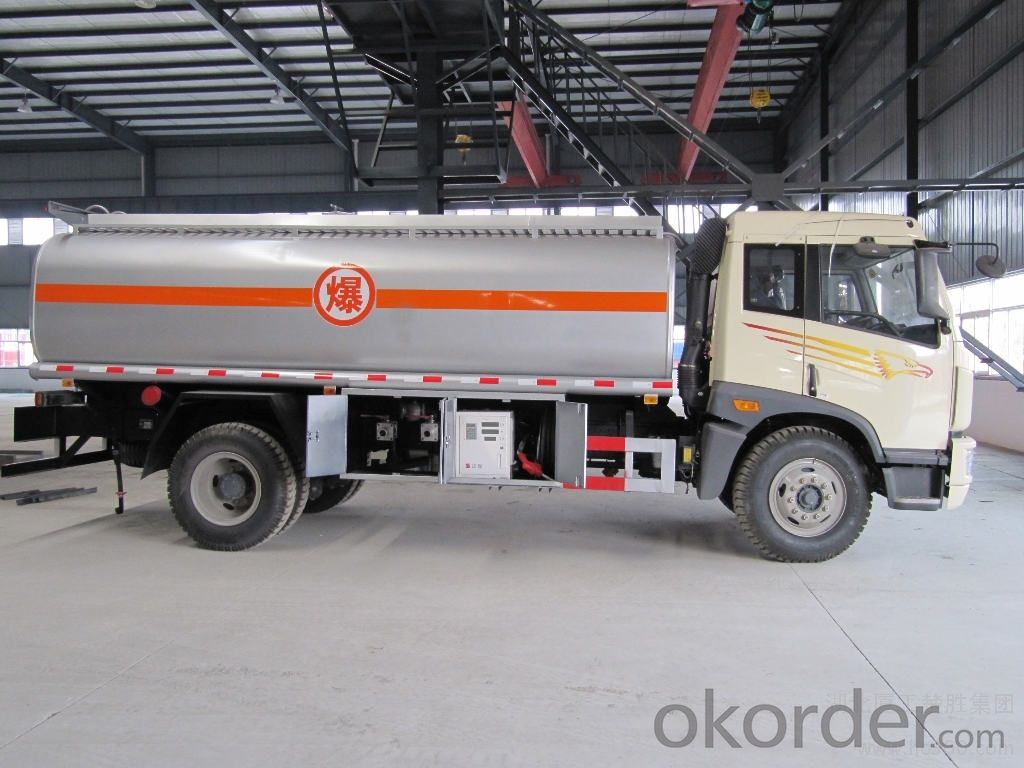

Fuel Tank Truck 6X4 18cbm Oil Transport
Model NO.:zz
Transmission Type:Manual
Power:Diesel
Load Capacity:11-20t
Emission Standard:Euro 3
Tank Volume:10001-15000L
Drive Wheel:4×2
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Tubeless
Condition:New
Colour:Optional
Tanker Volume:Optional
Logo:Optional
Driving Type:4*2
Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Trademark:HOWO
Packing:Nude
Standard:4x2
Origin:China
Production Capacity:2000
Vehicle Main DimensionsOverall dimensions (L x W x H)mm9000× 2490× 3200
Wheel base (mm)5100
Wheel track (front/rear) (mm)1900/1800
Weight in KGSTare Weight7000
Payload12000
Front axles loading capacity1x6000
Rear axles loading capacity1x13000
Max. Driving speed(km/h)90
| Item | Description |
| product type | XSJ5080GYY |
| outside dimension (L×W×H) (mm) | 6200×1900×2550 |
| can body dimension (Length×long axis×short axis) (mm) | 1680×1110×3200 |
| chassis model | EQ1080SJ19DC |
| chassis producer | Dongfeng Automobile Co., LTD |
| wheel base (mm) | 3300 |
| engine model | YC4F90-30 produced by Yuchai Group Co., LTD |
| engine working mode | inline-4, pressurization, inter-cooling, electronic control, diesel engine |
| fuel type | diesel |
| rated power | 66Kw/(1300r/min) |
| max. torque | 1270N.m /(1200-1500r/min) |
| approach angle/departure angle (°) | 27/23 |
| automobile displacement (L) | 2.659 |
| max. speed | 95 |
| gear size/count | 6.50-16/6 |
| total weight (kg) | 8300 |
| curb weight (kg) | 3500 |
| rated loading weight (kg) | 4605 |
| can announcement volume (gasoline) (m³) | 4.38 |
| finished can volume (m³) | 4.38 |
| transport material | crude oil, gasoline, diesel, water |
