Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

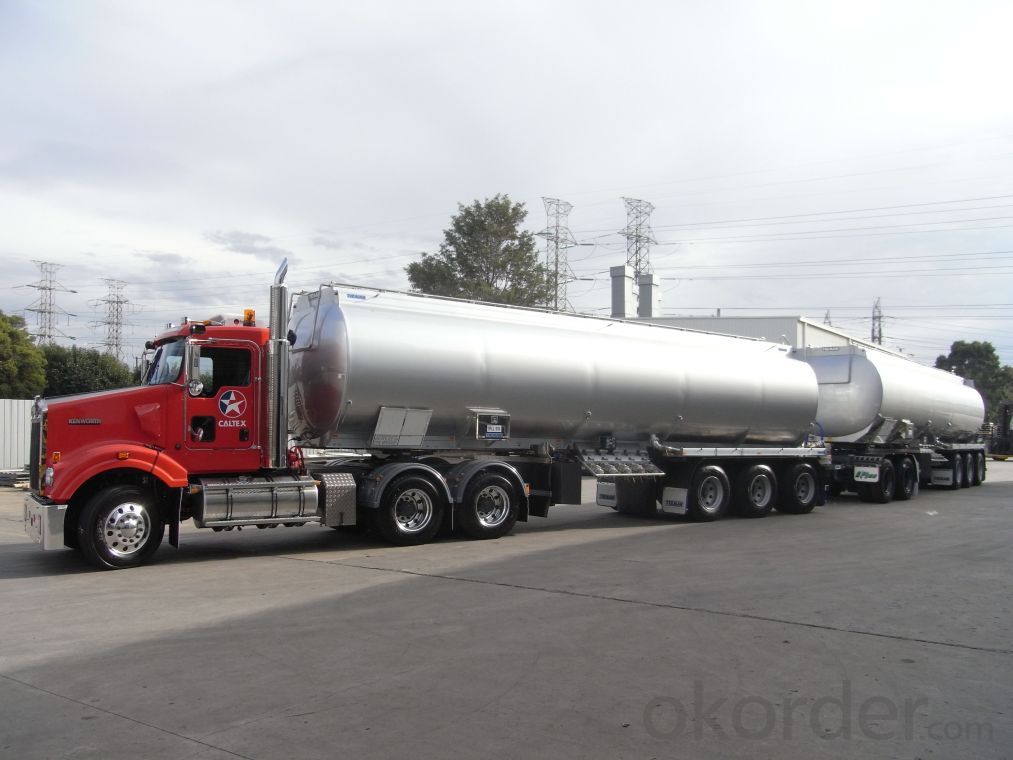

Fuel Tank Truck 45m3 Aluminum Fuel Water 6X6
Model NO.:WL9405GYY
Type:Semi-Trailer
Load Capacity:45m3
Certification:ISO9001, CCC, ISO/TS16949, ISO/Ts16949
Wheel Base:8000-9000mm
Tread:1820mm
Grade:Heavy Duty
Towing Pin Material:Carbon Steel
Universal Joint Type:Rigid Universal Joint
Brake Pad Material:Semimetal
Towing Pin Type:Mushroom Type
Towing Pin Diameter:90mm
Differential Gear Type:Gear Type
Independent Suspension Type:Cross Arm Type
Connecting Type:Full-trailer
Axle Number:3
Tire Number:12
Self-dumping:Not Self-dumping
Material:Steel
Condition:New
Scale:Heavy Duty
Components:Trailer Axles
Bulkhead and Bafflr:Thickness Is 7mm
Tank Material:Aluminium Alloy, Thickness 6mm, 5mm
Engine Capacity:Euro 3
Export Markets:Global
Trademark:CIMC RUIJIANG
Packing:in Nude or in Containers
Standard:According to Customers′ Needs
Origin:China
HS Code:87163990
Production Capacity:10000units/Year
Dimension:12972*2500*3750mm
Axle Space:7060+1310+1310mm
Tare Weight:7500kg
Axle:13T Fuwa
Alluminum alloy fuel tank with 45M3 loading capacity.
Pls contact us to know more detailed info and more various products.
| PARAMETER | Dimension(mm) | L*w*h: 12972x2500x3750(mm) |
| King pin setting(mm) | 1715mm | |
| Kin pin plate height (mm) | 1366mm | |
| Axle space(mm) | 7060mm+1310mm+1310mm | |
| Tare weight | 7500kgs | |
| Loading capacity | 47000L (Valid 45500L) | |
| OEM | Landing gear | Two speed manual operation type with sand shoe |
| Kingpin | Jost 2" bolted type | |
| Brake system | Wabco brake valve; | |
| Abs | 4s/2M | |
| Brake chamber | Type 30/30 spring brake system on all axles | |
| Suspension | Air bag Suspension | |
| Axle | Fuwa axle, 13 ton capacity/set, 3sets | |
| Tire | 425/65R22.5-20pr, 6 pcs Double Coin Brand; | |
| Rim | 13.0-22.5 6pcs, Aluminium Alloy | |
| Tool box | 1 | |
| Spare tire carrier | 2 | |
| TANK SPECS | Compartment | Three, 15000l/15000l/15000l |
| Tank material | Aluminium Alloy, thickness 6mm, 5mm | |
| Bulkhead and Bafflr | Thickness is 7mm | |
| Tank Shell | Thickness is 6mm & 5mm | |
| Shape of tank | Ellipse (double " d" ) | |
| Test pressure designed | 36kpa | |
| Manhole | 20" Aluminium Alloy Manhole Cover, C801-560, | |
| bottom valves | 3, Alluminium Alloy | |
| OTHERS | Oil Gas recovery System | Equiipped |
| Anti-overflow System | Equipped |
