Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

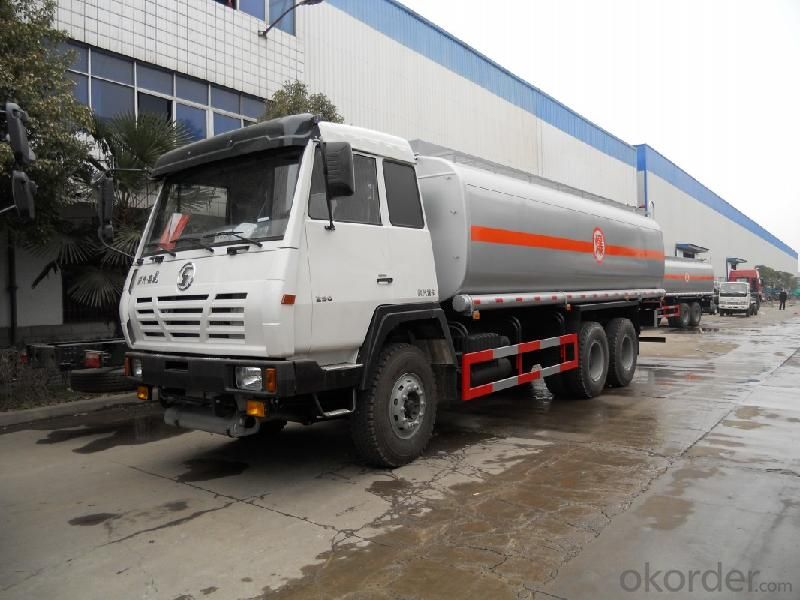

Fuel Tank Truck 40cbm Shanqi D'long 8*4
Transmission Type:Manual
Power:Diesel
Load Capacity:31-40t
Emission Standard:Euro 2
Tank Volume:15001-30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:351-450hp
Engine Capacity:4-6L
Storage:Oil
Tire Type:Solid Tire
Tire Certification:ISO
Tire Design:Tubeless
Condition:New
Certification:ISO9000, CCC, EPA
Export Markets:Global
Trademark:VELDLION
Packing:Nude Package or According to Your Requests
Standard:CCC & ISO9001
Origin:China
HS Code:8716311000
Production Capacity:300 Units/Month
(1) Condition: New
(2) Storage: Oil
(3) Drive Wheel: 8X4
(4) Horsepower: 251 - 350HP
(5) Transmission Type: Manual
(6) Fuel Type: Diesel
(7) Tank Volume: > 30000L
(8) Engine Capacity: 9276
(9) Dimensions (L x W x H) (mm): 12000*2495*4000
(10) Brand Name: SHACMAN
(11) Place of Origin: Shaanxi China (Mainland)
(12) Model Number: SX5314GYYJM456
(13) Gross Vehicle Weight: 31000 kg
| Product model | SX5315GYYNM456 | ||
| Chassis model | SX5315GYYNM456 | ||
| Vehicle spec. | Overall dimensions(mm) | 11850*2490*3670 | |
| Tank capacity | 35~45 cubic meter | ||
| Weight(kg) | GVW | 31000 | |
| payload weight | 30000~38000 | ||
| curb weight | 12650 | ||
| Approach/departure angle(° ) | 16/14 | ||
| Front/Rear overhang(mm) | 1525/2604 | ||
| Fuel type | Diesel | ||
| Fuel consumption(100km/L) | 18~24 | ||
| Max speed (km/h) | 92 | ||
| Engine spec. | Model | WP10.290 | |
| Displacement(cc) | 9726 | ||
| Horsepower(kw/ps) | 213/290 | ||
| Engine type | 6 cylinder, in-line, turcharger and after cooled | ||
| Chassis spec. | Drive style | 8*4 | |
| Wheelbase(mm) | 1800+4500+1350 | ||
| Front tread(mm) | 2036/2036 | ||
| Rear tread(mm) | 1860/1860 | ||
| Front axle loading(T) | 5.5 | ||
| Rear axle loading(T) | 13 | ||
| Gearbox | 9 speed | ||
| Brake | By air, with power assisted, pressure boost | ||
| Tyre spec. | 12.00-20R | ||
| Tyre nos. | 12+1(spare part) | ||
| Equipment | 1. Tank can be separated to several unattached small tanks to fill different fuels 2. Tank meterial: carbon steel, stainless steel, FRP etc. optional 3. Tank shape: roundless, quadrate, oval optional 4. Oil pump: self-priming pump, gear pump optional 5. Oil meter: single, double, Fiscal processor optional | ||
