Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

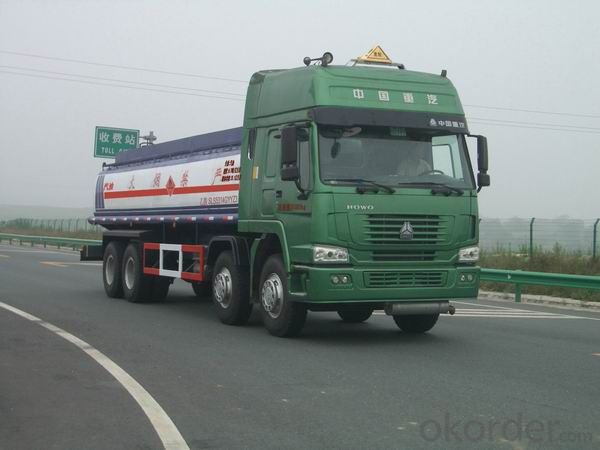

Fuel Tank Truck 40, 000L 266HP Diesel Oil Delivery
Model NO.:CIMC1317N3867C
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 3
Tank Volume:15001-30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Condition:New
Driving Type:LHD (Rhd Is Option)
Engine Model:Wd615.96,Euro II
Transmission:Hw19710
Tyre:12.00r20(Radial)
Wheel Base (Mm):1800+4600+1350
Front/Rear Axle Load:Hf9t/Hc16t
Overall Dimension of Truck:11984*2496*3950(Mm)
Steering:Zf8098
Axles No.:4
Cabin:HOWO76 One Bed,Air-Condition
Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Trademark:CIMC
Packing:Nude Packing
Standard:ISO/TS16949, DOT, CCC, ISO, SGS
Origin:China
HS Code:8705909990
Production Capacity:1000PCS/Month
Model: ZZ1317N4661W
Driving type:8*4
Kerb Weight: 25000kg
Gross Vehicle Weight: 12800kg
Engine:WD615.96,EURO II
Maximum Output: 375HP
Rated engine power: 277(KW/r/min)
Wheelbase:1800+4600+1350(mm)
Transmission: HW19710
Steering: ZF8098
Tyres: 12.00R20(Radial)
Front Axle: HF9
Rear Axle: HC16 Ratio:4.8
Maximum Speed: 85 km/h
Drum volume:30M3
Pump Model: 80QSB-60/90
Cab: HOWO76 ONE BED,Air-condition
| Chassis Model | ZZ1257S4641W | |||||
| Engine | Made: SINOTRUK | |||||
| Diesel 4-stroke direct injection diesel engine | ||||||
| Engine model: WD165.69, Euro II emission standard | ||||||
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | ||||||
| 336 hp (247 Kw) at 2200 rpm | ||||||
| Number of cylinder: 6 | ||||||
| Displacement: 9.726 l | ||||||
| Bore: 126 mm | ||||||
| Stroke: 130 mm | ||||||
| Compression ratio: 29.8 hp/l | ||||||
| Specific fuel consumption: 195 g/kWh | ||||||
| Engine oil filling quantity: 23 l | ||||||
| Cooling system filling quantity (long-term filling): 40 l | ||||||
| Thermostat with 71 degree opening begin | ||||||
| Single cylinder air compressor | ||||||
| Rigid fan | ||||||
| Transmission | HW15710, 10 speeds forward and 2 reverse | |||||
| Fuller technology | ||||||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |||||
| Front Axle | Steering with double T-cross section beam | |||||
| Rear Axle | Pressed axle housing, central single reduction | |||||
| Chassis | Frame: U-profile parallel ladder frame with section of 350x80x10 mm and reinforced subframe, all cold riveted cross members | |||||
| Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | ||||||
| Rear suspension: 12 leaf semi-elliptic springs with bogie springs | ||||||
| Aluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis | ||||||
| Steering | ZF power steering, modol ZF8098, hydraulic steering with power assitance | |||||
| Brakes | Service brake: dual circuit compressed air brake | |||||
| Parking brake(emergency brake), spring energy, compressed air operating on rear wheels | ||||||
| Auxiliary brake: engine exhaust brake | ||||||
| ABS | ||||||
| Tyre | Tyre: 12.00R20 | |||||
| Driver' s Cab | Volve middle roof cab(two seats, one bed), all steal forward control, 2-arm windscreen wiper system with three speed, laminated windscreen with | |||||
| casted-in ratio aerial, hydraulically damped adjustable driver' s seat, with heating and ventilating system, exterior sun visor, safety belts, | ||||||
| adjustable steering wheel, air horn, air conditioner, with transverse stabilizer | ||||||
| Electrics | Operating voltage: 24 V, negative grounded | |||||
| Starter: 24 V, 5.4 Kw | ||||||
| Alternator: 3-phase, 28 V, 1500 W | ||||||
| Batteries: 2 x 12 V, 165 Ah | ||||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||||||
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators | |||||
| of compressed air pressure, coolant temperature, engine oil pressure and battery charging | ||||||
| Water Tank | Thinkness of Tank(mm) | 5 | ||||
| Weight(kg) | 2900 | |||||
| Rufuel Box Volume(L) | 18000 | |||||
| Tank Material | Q235A Carbon Steel | |||||
| Pump | Model | 80-YCB-60 | ||||
| Counter: | 1.5 inch (100-120m3/h) | |||||
| Dimensions mm | Wheel base | 4600+1350 | ||||
| Front wheel track | 2022 | |||||
| Rear wheel track | 1830 | |||||
| Front overhang | 1500 | |||||
| Rear overhang | 2650 | |||||
| Overall length | 10900 | |||||
| Overall width | 2496 | |||||
| Overall height | 3050 | |||||
| Weight kg | Gross vehicle weight | 25000 | ||||
| Rated loading capacity | 32000 | |||||
| Front axle loading capacity | 7500 | |||||
| Rear axle loading capacity | 2*16000 | |||||
| Performance | Maximum driving speed (km/h) | 75 | ||||
| Maximum gradeability (%) | 40 | |||||
| Minimum ground clearance (mm) | 314 | |||||
| Minimum turning circle (m) | 20 | |||||
| Fuel consumption (l/100 km) | 28 | |||||
