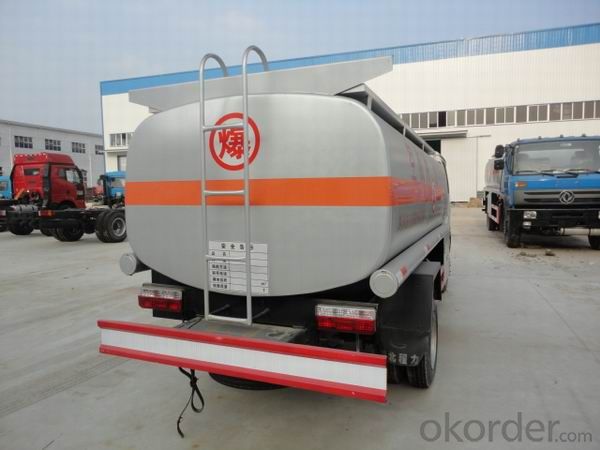

Fuel Tank Truck 25000L Tanker Truck
Product Details
Model NO.:CIMC1317N3867C
Transmission Type:Manual
Power:Diesel
Load Capacity:21-30t
Emission Standard:Euro 3
Tank Volume:15001-30000L
Drive Wheel:8×4
Seats:≤5
Horsepower:251-350hp
Engine Capacity:＞8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ISO
Tire Design:Radial
Condition:New
Driving Type:LHD (Rhd Is Option)
Engine Model:Wd615.96,Euro II
Transmission:Hw19710
Tyre:12.00r20(Radial)
Wheel Base (Mm):1800+4600+1350
Front/Rear Axle Load:Hf9t/Hc16t
Overall Dimension of Truck:11984*2496*3950(Mm)
Steering:Zf8098
Axles No.:4
Cabin:HOWO76 One Bed,Air-Condition
Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Trademark:CIMC
Packing:Nude Packing
Standard:ISO/TS16949, DOT, CCC, ISO, SGS
Origin:China
HS Code:8705909990
Production Capacity:1000PCS/Month
Overall Dimension: 11984×2496×3950(mm)
Model: ZZ1317N4661W
Driving type:8*4
Kerb Weight: 25000kg
Gross Vehicle Weight: 12800kg
Engine:WD615.96,EURO II
Maximum Output: 375HP
Rated engine power: 277(KW/r/min)
Wheelbase:1800+4600+1350(mm)
Transmission: HW19710
Steering: ZF8098
Tyres: 12.00R20(Radial)
Front Axle: HF9
Rear Axle: HC16 Ratio:4.8
Maximum Speed: 85 km/h
Drum volume:30M3
Pump Model: 80QSB-60/90
Cab: HOWO76 ONE BED,Air-condition
| Vehicle model | CA5403GHY Oil tank truck | Batch No. | 197 |
| Manufacturer | FAW | Brand name | FAW |
| Overall dimension(mm) | 11980×2480×3800 | Total weight (Kg) | 55000 |
| Body internal dimension(mm) | ×× | Curb weight(Kg) | 18000 |
| Approach/departure angle | -/12 | Max speed(km/h) | |
| Front/rear hang(mm) | -/2130 | Vehicle identification code | LFA |
| Chassis model | |||
| Engine model | Engine manufacturer | Emission | Power |
| FAW/ WEICHAI | Euro2 | 280hp,336hp | |
| Fuel type | Diesel | Tyre number | 12 |
| Axle number | 4 | Tyre specification | 11.00-20,11.00R20, 12.00-20,12.00R20 |
| Wheelbase | 1800+5730+1310 | Front wheel distance | - |
| Axle load | 9000-/26000 ( parallel ) | Rear wheel distance | 1840/1840/1840 |
| Leaf spring number | -/8/8/8 | ||
